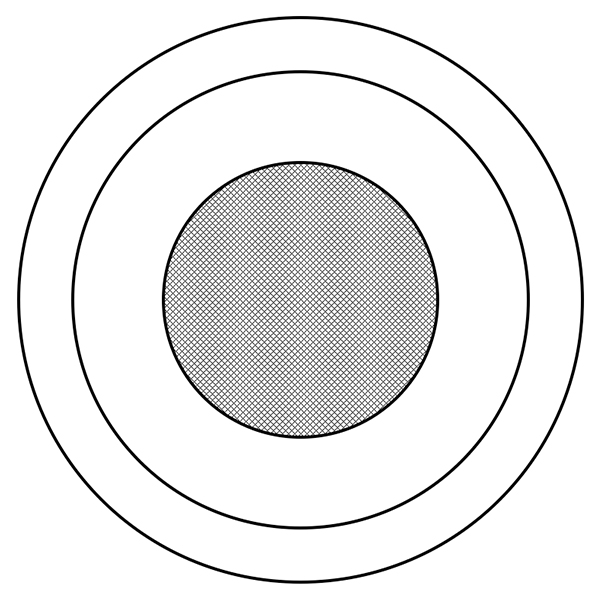

Product Number: BE43780
Lead Wire, #8 Str TC, PVC Ins, AWM 1034
UL AWM ST 10434 VW-1 8AWG / 168x30 T
-
Availability:
EMEA
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
Rated temperature UL max 80 C and CSA max 105 C; Rated voltage max 600 V ac, 750 V dc and 2500 Volts peak for electronic use only; Interal Wiring of Applicances; or Internal Wiring of Appliances where exposed to oil at a temperature not exceeding 60 C |
|---|
Physical Characteristics (Overall)
Conductor
| AWG | Stranding | Material |
|---|---|---|
| 8 | 168x30 | TC - Tinned Copper |
|
Conductor Count |
1 |
|---|
Insulation
| Layer | Type | Material | Nominal Diameter | Diameter +/- Tolerance | Nominal Wall Thickness | Color |
|---|---|---|---|---|---|---|
| 1 | Insulation | PVC - Polyvinyl Chloride | 6.8 mm | 0.05 mm | ||
| 2 | PVC - Polyvinyl Chloride | 8 mm | 0.12 mm | 0.6 mm | Mushroom (RAL 9002) |
Color Chart
| Number | Color |
|---|---|
| Wire 1 | Yellow/Green |
Construction and Dimensions
Cabling
| Description |
|---|
| 1 wire |
Temperature Range
|
UL Temp Rating |
80°C |
|---|
Standards
|
UL AWM Style Compliance |
AWM 10434 |
|---|---|
|
Military Compliance |
N/A |
Applicable Environmental and Other Programs
|
Environmental Space |
Indoor |
|---|
Flammability, LS0H, Toxicity Testing
|
UL voltage rating |
N/A |
|---|
History
|
Update and Revision |
Revision Number: 0.149 Revision Date: 02-03-2025 |
|---|
Belden.GenericSpecificationTitle
|
Update and Revision |
Revision Number: 0.149 Revision Date: 02-03-2025 |
|---|
Part Numbers
| Item # | Color | Put-Up Type | Length | EAN |
|---|---|---|---|---|
| BE43780.001000 | Beige | Reel | 1,000 m | 8719605026538 |
