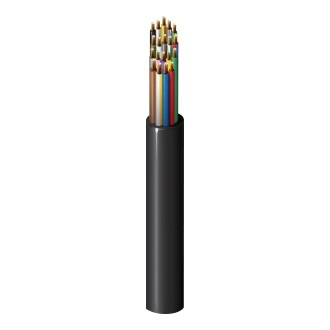

70263PU

Sensor & Actuator, 8-Cond, Cu Section 0.25 mm², PUR

...
PUR Sensor & Actuator Cable, 8 x 32 x 0.10 mm, 2 Million Continuous Flex Cycles, Trailing, Sunlight and Oil Resistant
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

As a flexible, flame retardant and halogen-free control line in the industrial Mechanical- and Plant engineering, for high requirements, particularly for the employment in cable carriers (Drag chains) and moved machine parts.

Physical Characteristics (Overall)
Conductor
Stranding Material No. of Conductors
32x38 BC - Bare Copper 8

Table Notes

Extra fine-wired

Conductor Count

8

Insulation
Material Nominal Diameter
PP - Polypropylene 1.2 mm
Color Chart
Number Color
Wire 1 Brown
Wire 2 Blue
Wire 3 White
Wire 4 Green
Wire 5 Pink
Wire 6 Yellow
Wire 7 Gray
Wire 8 Red
Outer Jacket
Material Nominal Diameter Diameter +/- Tolerance Labs Free Oil Resistant
PUR - Polyurethane 6 mm 0.2 mm Yes Good
Electrical Characteristics

Min Insulation Resistance

1000 MOhm*km

Voltage
Voltage Rating [V] Voltage Test Dielectric
300 V 2.0 kV DC
Temperature Range

Operating Temperature Range

-50°C To +80°C

Operating Temp Range (Flexible Install)

-25°C To +80°C

Operating Temp Range (Drag Chain Op)

-25°C To +60°C

Mechanical Characteristics

Microbes and Hydrolyse Resistance

Good

Min Bend Radius (W/o Pulling Strength)

60 mm

Min No. of Drag Chain Cycles

2 Mio.

Drag Chain Parameters

a = 5 m/s², horizontal 5 m, vertical 2 m,v = max. 200m/min.)

Standards

UL AWM Style Compliance

AWM 20549
Applicable Environmental and Other Programs

Environmental Space

Indoor/Outdoor
Flammability, LS0H, Toxicity Testing

CSA Flammability

FT4

IEC Flammability

IEC 60332-2-2

IEC 60754-1 - Halogen Amount

Zero

History

Update and Revision

Revision Number: 0.134 Revision Date: 12-20-2022

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Put-Up Type Length EAN
70263PU.00C100 Black Reel 100 m 8719605012586
70263PU.00500 Black Reel 500 m 8719605012579
