8110NH

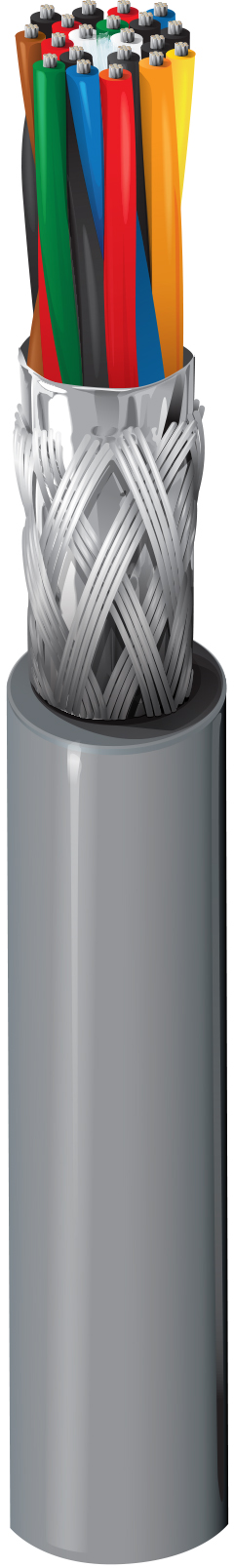

RS232/422 Low Cap, #24-10pr, FPO, O/A Foil+Braid, LSZH Jkt, Dca, 100Ω

...
10-Pair, 24 AWG stranded (7x32) TC conductors, Datalene® insulation, twisted pairs, overall Beldfoil® (100% coverage) + TC braid shield (65% coverage), 24 AWG stranded TC drain wire, LSZH jacket, Flame resistance EC 60332-3C
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

Instrumentation and computer cable; For data transmission applications

Physical Characteristics (Overall)
Conductor
AWG Stranding Material No. of Pairs
24 7x32 TC - Tinned Copper 10

Conductor Count

20

Insulation
Material Material Trade Name Nominal Diameter Diameter +/- Tolerance
PE - Polyethylene (Foam) Datalene® 1.24 mm 0.06 mm
Color Chart
Number Color
Pair 1 White/Blue & Blue/White
Pair 2 White/Orange & Orange/White
Pair 3 White/Green & Green/White
Pair 4 White/Brown & Brown/White
Pair 5 White/Gray & Gray/White
Pair 6 Red/Blue & Blue/Red
Pair 7 Red/Orange & Orange/Red
Pair 8 Red/Green & Green/Red
Pair 9 Red/Brown & Brown/Red
Pair 10 Red/Gray & Gray/Red
Outer Shield
Type Material Material Trade Name Thickness of Foil Drainwire Material Drainwire AWG Min. Coverage [%]
Tape Bi-Laminate (Alum+Poly) Beldfoil® (Z-Fold®) 9 / 12 µm TC - Tinned Copper AWG24/7
Braid Tinned Copper (TC) 65%
Outer Jacket
Material Nominal Diameter Min. Wall Thickness Min. Average Wall Thickness
LSZH - Low Smoke Zero Halogen (Flame Retardant) 10.29 mm 0.7 mm 0.813 mm
Construction and Dimensions
Cabling
Description Filler
2 fillers and 10 pairs twisted to cable core Polypropylene (2x)
Electrical Characteristics
Conductor DCR
Nominal Conductor DCR Nominal Outer Shield DCR
78.7 Ohm/km 8.5 Ohm/km
Capacitance
Max. Capacitance Conductor to Conductor Nom. Capacitance Conductor to Conductor Nom. Capacitance Conductor to Other Conductor to Shield
45.9 pF/m 41 pF/m 72.2 pF/m
Inductance
Nominal Pair Inductance
0.75 µH/m
Impedance
Nominal Characteristic Impedance
100 Ohm
Delay
Nominal Velocity of Propagation (VP) [%]
78%
Current
Element Max. Recommended Current [A]
Conductor(s) 1.5 Amps per Conductor
Voltage
Voltage Rating [V]
300 V
Temperature Range

Storage Temperature Range

-45°C To +80°C

Operating Temp Range (Fixed Install)

-45°C To +80°C

Mechanical Characteristics

Max. Pull Tension

400 N

Min. Bend Radius During Installation

102.9 mm

Min Setting Radius

51.45 mm
Standards

CENELEC Compliance

EN 50290-2-20
Applicable Environmental and Other Programs

Environmental Space

Indoor
Flammability, LS0H, Toxicity Testing

IEC Flammability

IEC 60332-3-24

IEC 60754-1 - Halogen Amount

Zero

IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity

2.5 µS/mm

IEC 60754-2 - Halogen Acid Gas Amount - Min. pH

4.3

IEC 61034-2 - Smoke Density Min. Transmittance

60%

History

Update and Revision

Revision Number: 0.249 Revision Date: 12-22-2023

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Put-Up Type Length EAN
8110NH.00152 Chrome Reel 152 m 8719605017895
8110NH.00305 Chrome Reel 305 m 8719605017901
8110NH.00500 Chrome Reel 500 m 8719605017918
