83336E

Electronic, 3 C #18 Str SPC, TFE Ins, OA SPC Brd, TFE Jkt, MIL-W-16878/4 (Type E)

...

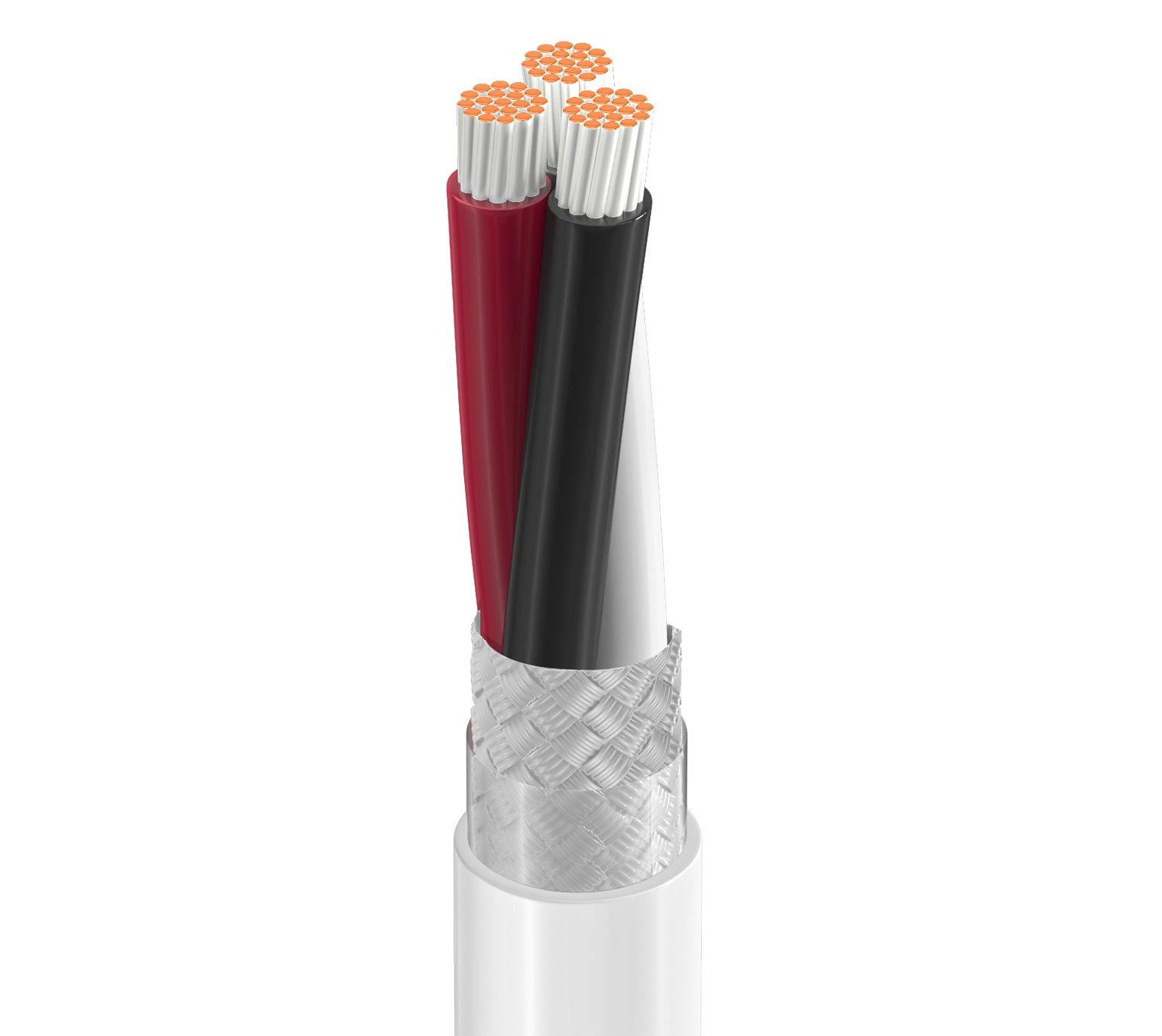

High Temperature Electronic, 3 Conductor 18AWG (19x30) Silver Plated Copper, TFE Insulation, Overall Silver Plated Copper Braid(85%) Shield, TFE Outer Jacket, MIL-W-16878/4 (Type E)
English
Request Quote
Share
Request Sample Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

MIL-W-16878/4 (Type E) Spec; Extreme High/Low Temperature Environments; up to 600V analog signals & voltage control

Construction Details
Conductor
Element No. of Elements Size Stranding Material
Conductor(s) 3 18 AWG 19x30 SC - Silvered Copper
Insulation
Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Conductor(s) PTFE - Polytetrafluoroethylene 0.0105 in (0.267 mm) 0.068 in (1.7 mm) White, Black, Red
Outer Shield
Shield Type Material Coverage
Braid Silvered Copper (SC) 85%
Outer Jacket
Material Nom. Thickness Nom. Diameter
PTFE - Polytetrafluoroethylene 0.011 in (0.28 mm) 0.189 in (4.80 mm)

Overall Cable Diameter (Nominal)

0.189 in (4.80 mm)

Electrical Characteristics
Electricals
Element Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Other (Conds + Shield) Max. Current
Conductor(s) 5.7 Ohm/1000ft 31 pF/ft (100 pF/m) 52.8 pF/ft (173 pF/m) 8.2 Amps per conductor @ 25°C
Voltage
Voltage Rating
600 V
Mechanical Characteristics
Temperature
UL Temperature Operating
200°C -65°C to +200°C
Bend Radius
Stationary Min. Installation Min.
1.89 in (48.0 mm) 1.89 in (48.0 mm)

Max. Pull Tension

74.1 lbs (33.6 kg)

Bulk Cable Weight

37 lbs/1000ft

Standards and Compliance

Sustainability

CA Prop 65

NEMA Compliance

NEMA HP3

Military Compliance

MIL-W-16878/4 (Type E except stranding), (insulated conductors)

European Directive Compliance

EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

APAC Compliance

China RoHS II (GB/T 26572-2011)

Product Notes

Notes

Teflon® is a registered trademark of E. I. duPont de Nemours and Co. used under license by Belden, Inc.

History

Update and Revision

Revision Number: 0.531 Revision Date: 04-19-2023

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Putup Type Length UPC Footnote
83336E 009500 White 612825204251 E
83336E 009100 White Reel 100 ft 612825347538 E
83336E 0091000 White Reel 1,000 ft 612825204244 E
