Electronic, 2 C #20 Str TC, FEP Ins, OS, Silicone Jkt, AWM 4516

...

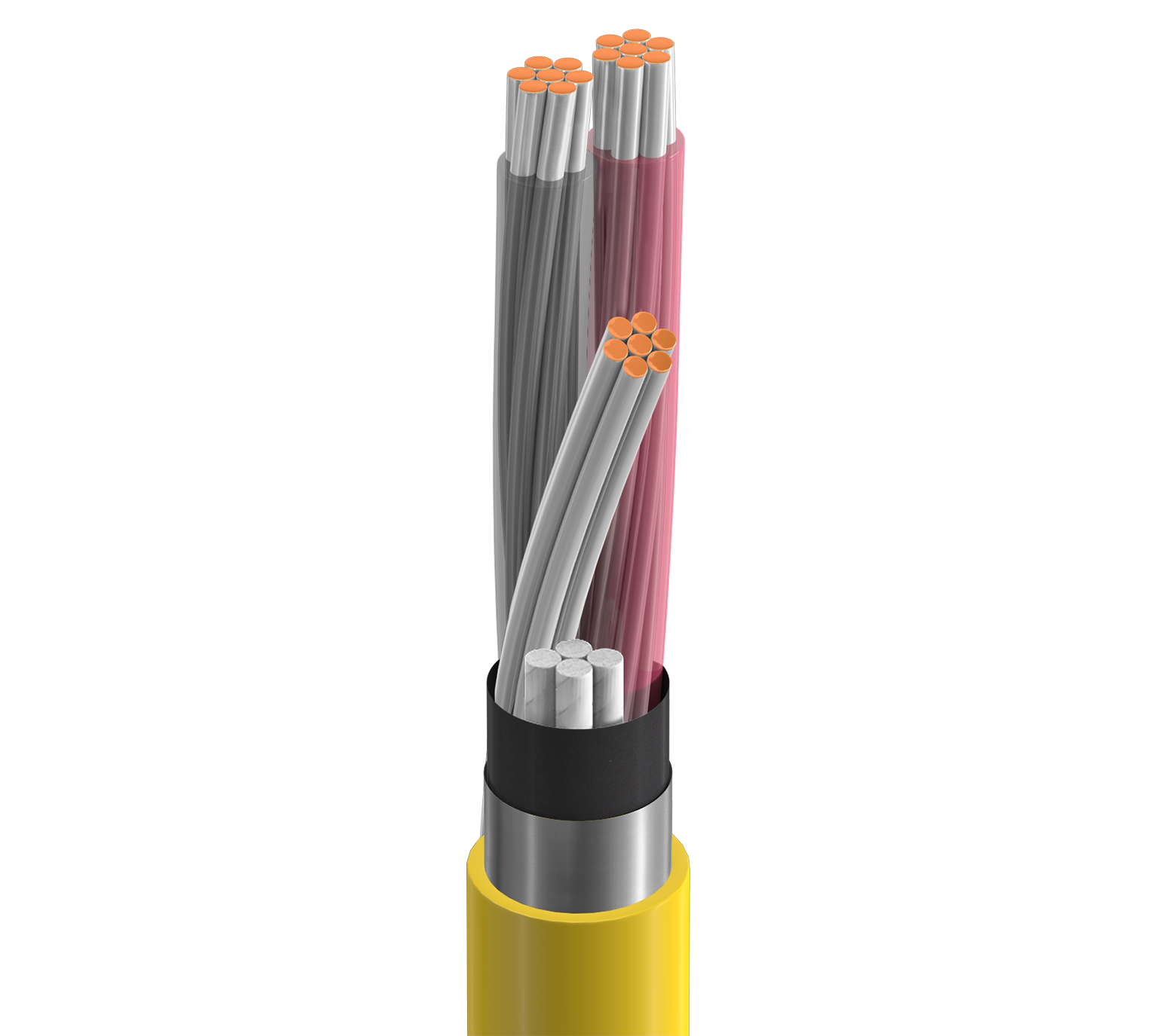

High Temperature Electronic, 2 Conductor 20AWG (7x28) Tinned Copper, FEP Insulation, Overall Beldfoil® Shield, Silicone Outer Jacket, AWM 4516
English
Request Quote
Share
Request Sample Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

extreme high/low temperature environments; low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, …); line level audio; voice communications; panel wiring

Construction Details
Conductor
Element No. of Elements Size Stranding Material
Conductor(s) 2 20 AWG 7x28 TC - Tinned Copper
Insulation
Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Conductor(s) FEP - Fluorinated Ethylene Propylene 0.020 in (0.51 mm) 0.077 in (2.0 mm) Black, Red
Outer Shield
Shield Type Material Coverage Drainwire Type
Tape Textile (Conductive) 100%
Tape Bi-Laminate (Alum+Nomex®) 100% 20 AWG (7x28) TC
Outer Jacket
Material Nom. Thickness Nom. Diameter
Silicone Rubber 0.037 in (0.94 mm) 0.242 in (6.15 mm)

Overall Cable Diameter (Nominal)

0.242 in (6.15 mm)

Electrical Characteristics
Electricals
Element Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Other (Conds + Shield) Max. Current
Conductor(s) 11.2 Ohm/1000ft 22 pF/ft (72 pF/m) 40 pF/ft (130 pF/m) 3.8 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating Voltage Rating
600 V (UL AWM 4516) 2000 V DC (Through Jacket)
Mechanical Characteristics
Temperature
UL Temperature Operating
150°C -70°C to +150°C
Bend Radius
Stationary Min. Installation Min.
2.42 in (61.5 mm) 2.42 in (61.5 mm)

Max. Pull Tension

37.8 lbs (17.1 kg)

Bulk Cable Weight

36 lbs/1000ft

Standards and Compliance

Environmental Suitability

Indoor - Plenum, Indoor

Sustainability

CA Prop 65

Flammability / Reaction to Fire

VW-1 (Singles)

AWM Compliance

AWM 4516

European Directive Compliance

EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

APAC Compliance

China RoHS II (GB/T 26572-2011)

History

Update and Revision

Revision Number: 0.530 Revision Date: 02-15-2024

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Putup Type Length UPC Footnote
83393 004500 Yellow Reel 500 ft 612825204572 C
