Product Number: 83653
Electronic, 3 C #18 Str TC, FEP Ins, OS+TC Brd, FEP Jkt, CMP

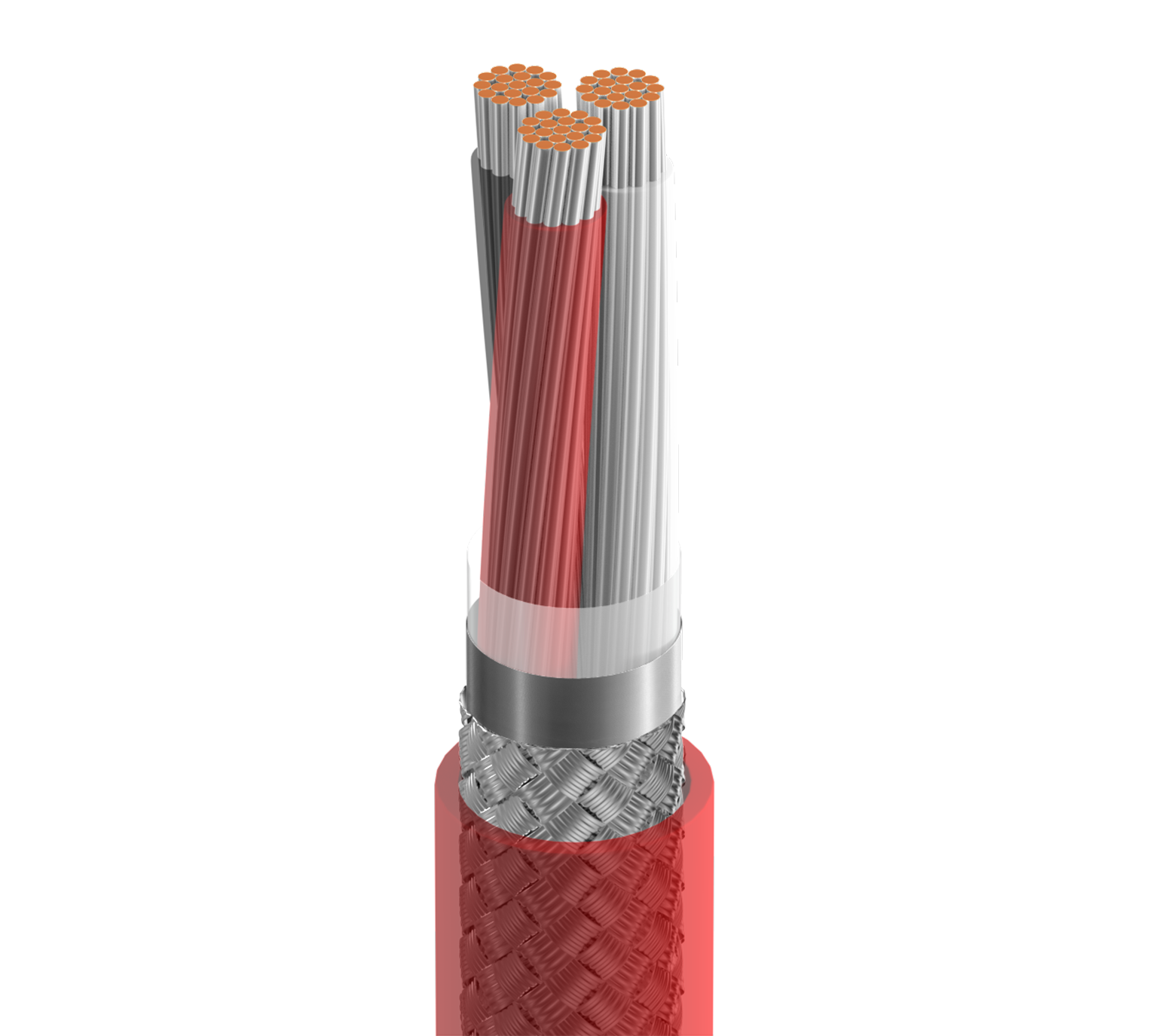

High Temperature Electronic, 3 Conductor 18AWG (19x30) Tinned Copper, FEP Insulation, Overall Beldfoil®+Tinned Copper Braid(85%) Shield, FEP Outer Jacket, CMP
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
extreme high/low temperature environments; chemical resistant; outdoor and burial applications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, …); line level audio; voice communications; panel wiring |
|---|
Construction Details
Conductor
| Element | No. of Elements | Size | Stranding | Material |
|---|---|---|---|---|
| Conductor(s) | 3 | 18 AWG | 19x30 | TC - Tinned Copper |
Insulation
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
|---|---|---|---|---|
| Conductor(s) | FEP - Fluorinated Ethylene Propylene | 0.007 in (0.18 mm) | 0.057 in (1.4 mm) | Black, White, Red |
Outer Shield
| Shield Type | Material | Coverage |
|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | 100% |
| Braid | Tinned Copper (TC) | 85% |
Outer Jacket
| Material | Nom. Thickness | Nom. Diameter |
|---|---|---|
| FEP - Fluorinated Ethylene Propylene | 0.014 in (0.36 mm) | 0.182 in (4.62 mm) |
|
Overall Cable Diameter (Nominal) |
0.182 in (4.62 mm) |
|---|
Electrical Characteristics
Electricals
| Element | Nom. Conductor DCR | Nom. Capacitance Cond-to-Cond | Nom. Capacitance Cond-to-Other (Conds + Shield) | Max. Current |
|---|---|---|---|---|
| Conductor(s) | 7.06 Ohm/1000ft | 33 pF/ft (110 pF/m) | 60 pF/ft (200 pF/m) | 5 Amps per Conductor at 25ºC |
Voltage
| UL Voltage Rating |
|---|
| 300 V |
Mechanical Characteristics
Temperature
| UL Temperature | Operating |
|---|---|
| 150°C | -70°C to +200°C |
Bend Radius
| Stationary Min. | Installation Min. |
|---|---|
| 1.8 in (46 mm) | 1.8 in (46 mm) |
|
Max. Pull Tension |
109 lbs (49.4 kg) |
|---|---|
|
Bulk Cable Weight |
35 lbs/1000ft |
Standards and Compliance
|
Environmental Suitability |
Indoor, Outdoor, Oil Resistance, Burial |
|---|---|
|
Sustainability |
CA Prop 65 |
|
Flammability / Reaction to Fire |
NFPA 262 (UL 910), FT6, IEC 60332-1-2 |
|
CPR Compliance |
CPR Euroclass: Eca |
|
NEC / UL Compliance |
Article 800, CMP |
|
CEC / C(UL) Compliance |
CMP |
|
European Directive Compliance |
EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
|
UK Regulation Compliance |
UKCA Mark |
|
APAC Compliance |
China RoHS II (GB/T 26572-2011) |
Product Notes
|
Notes |
Gas Resistant |
|---|
History
|
Update and Revision |
Revision Number: 0.516 Revision Date: 02-03-2025 |
|---|
Belden.GenericSpecificationTitle
|
Update and Revision |
Revision Number: 0.516 Revision Date: 02-03-2025 |
|---|
Part Numbers
| Item # | Color | Putup Type | Length | UPC | Footnote |
|---|---|---|---|---|---|
| 83653 002100 | Red | Reel | 100 ft | 612825205272 | C |
| 83653 002500 | Red | Reel | 500 ft | 612825205296 | C |
| 83653 0021000 | Red | Reel | 1,000 ft | 612825205289 | C |
| 83653 0025000 | Red | Reel | 5,000 ft | 612825205302 |
