8443ZH

Electronic, 3 C #22 Str TC, PO Ins, LSZH Jkt, CMG

...

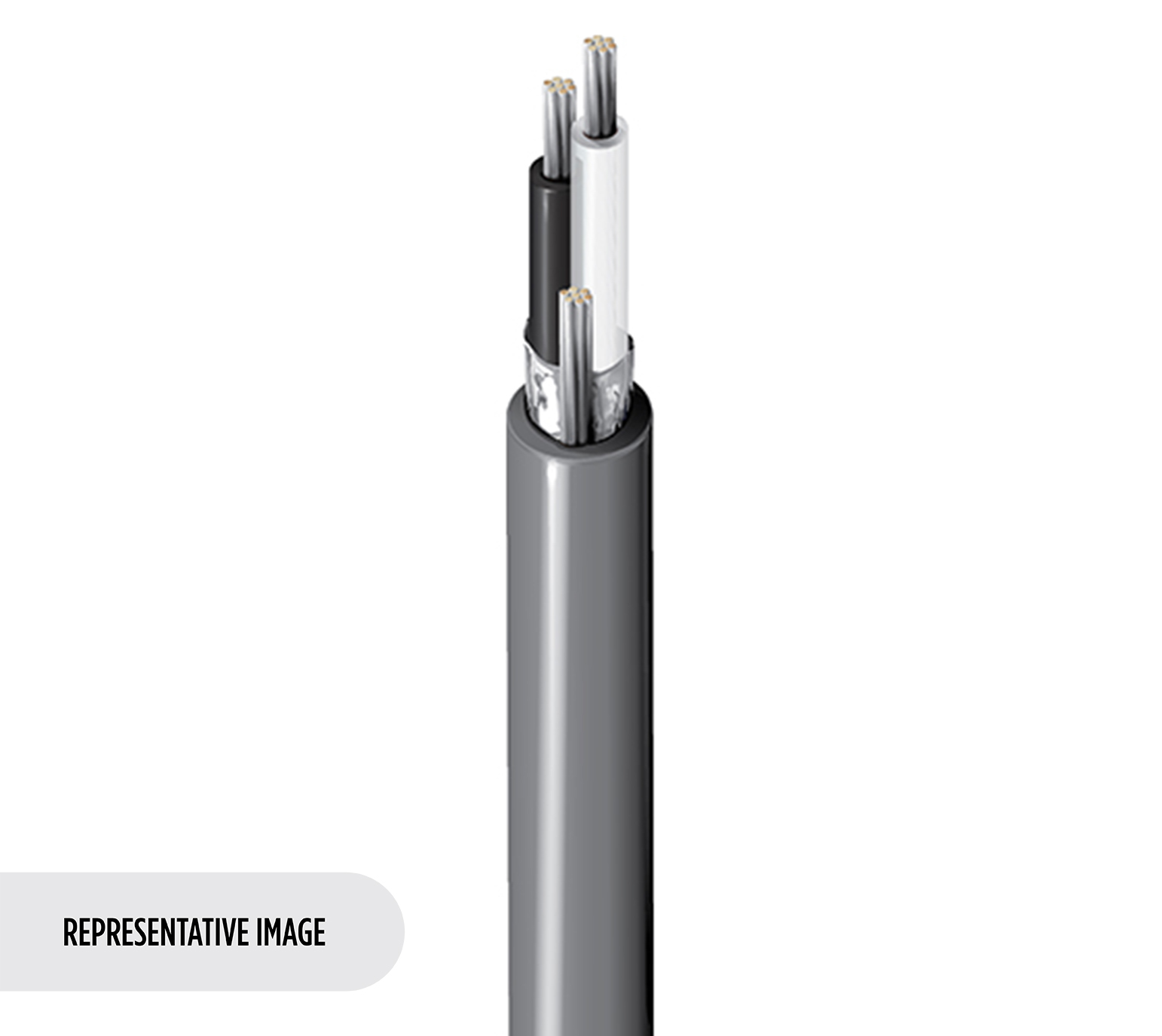

Electronic, 3 Conductor 22AWG (7x30) Tinned Copper, PO Insulation, LSZH Outer Jacket, CMG
English
Request Quote
Share
Request Sample Get Product Alerts

Specifications
Report An Error
Physical Characteristics (Overall)
Conductor
AWG Stranding Material No. of Conductors
22 7x30 TC - Tinned Copper 3

Conductor Count

3

Insulation
Material Nominal Wall Thickness
PP - Polypropylene 0.011 in
Color Chart
Color
Black
Red
Green
Outer Shield
Type Material
No Shield No Shield
Outer Jacket
Material Nominal Diameter Nominal Wall Thickness
LSZH - Low Smoke Zero Halogen (Flame Retardant) 0.172 0.032 mm
0.172 mm
Electrical Characteristics
Conductor DCR
Nominal Conductor DCR
15.6 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Conductor
15 pF/ft
Inductance
Nominal Inductance
0.17 µH/ft
Voltage
UL Voltage Rating
300 V RMS

Electrical Characteristics Notes

2.9 Amps per conductor @ 25°C

Temperature Range

UL Temp Rating

75°C

Operating Temperature Range

-20C° to 80°C

Mechanical Characteristics

Max. Pull Tension

27 lbs

Min. Bend Radius/Minor Axis

1.650 in
Standards

NEC/(UL) Compliance

CMG

CEC/C(UL) Compliance

CMG

UL AWM Style Compliance

AWM 21307
Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV)

Yes

EU Directive 2003/96/EC (BFR)

Yes

EU Directive 2011/65/EU (RoHS 2)

Yes

EU Directive 2012/19/EU (WEEE)

Yes

EU Directive Compliance

Yes

EU CE Mark

Yes

Suitability

Suitability - Indoor

Yes

Flammability, LS0H, Toxicity Testing

UL Flammability

UL1685 FT4 Loading

UL voltage rating

300 V RMS

History

Update and Revision

Revision Number: 0.161 Revision Date: 05-05-2023

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Put-Up Type Length UPC
8443ZH 010500 Black Reel 500 ft 612825382249
8443ZH 0101000 Black Reel 1,000 ft 612825382232
