8444ZH

Electronic, 4 C #22 Str TC, PO Ins, LSZH Jkt, CMG

...

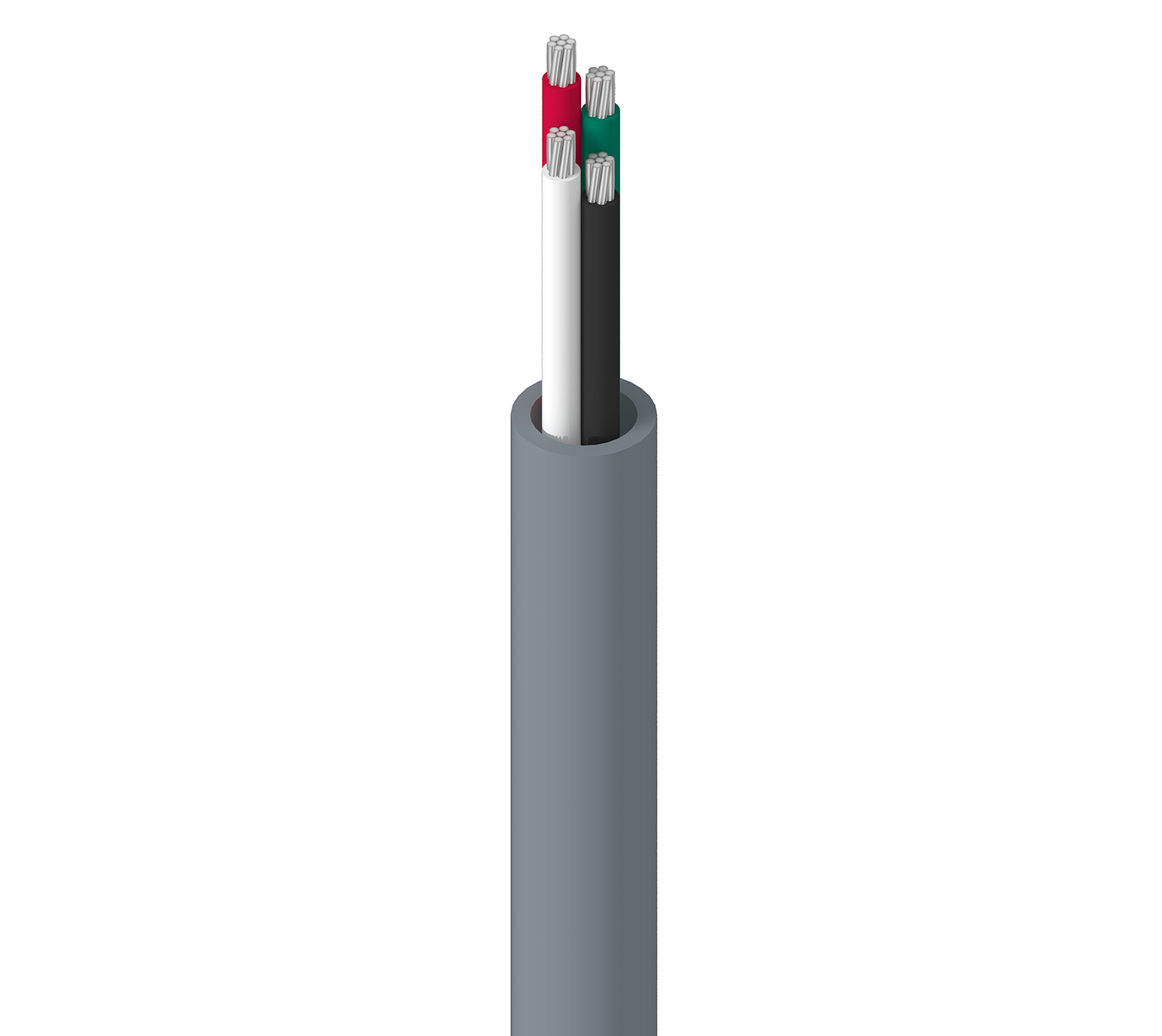

Electronic, 4 Conductor 22AWG (7x30) Tinned Copper, PO Insulation, LSZH Outer Jacket, CMG
English
Request Quote
Share
Request Sample Get Product Alerts

Specifications
Report An Error
Construction Details
Conductor
Element No. of Elements Size Stranding Material
Conductor(s) 4 22 AWG 7x30 TC - Tinned Copper
Insulation
Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Conductor(s) PP - Polypropylene 0.011 in (0.28 mm) 0.050 in (1.3 mm) Black, White, Red, Green
Outer Shield
Shield Type Material
No Shield No Shield
Outer Jacket
Material Nom. Thickness Nom. Diameter
LSZH - Low Smoke Zero Halogen (Flame Retardant) 0.032 in (0.81 mm) 0.185 in

Overall Cable Diameter (Nominal)

0.185 in

Electrical Characteristics
Electricals
Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Max. Current
17.8 Ohm/1000ft 15 pF/ft (49 pF/m) 2.32 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating
300 V
Mechanical Characteristics
Temperature
UL Temperature Operating
75°C -20°C To +75°C
Bend Radius
Stationary Min. Installation Min.
1.85 in (47.0 mm) 1.85 in

Max. Pull Tension

36.4 lbs (16.5 kg)

Bulk Cable Weight

20 lbs/1000ft

Standards and Compliance

Environmental Suitability

Indoor, Non-Halogenated

Flammability / Reaction to Fire

UL 1685 FT4 Loading, FT4

NEC / UL Compliance

Article 800, CMG

AWM Compliance

AWM 21307

CEC / C(UL) Compliance

CMG

European Directive Compliance

EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

APAC Compliance

China RoHS II (GB/T 26572-2011)

History

Update and Revision

Revision Number: 0.286 Revision Date: 05-05-2023

Show All Specifications
Hide Specifications
Part Numbers
Item # Color UPC
8444ZH 0101000 Black 612825382256
8444ZH 010500 Black 612825382263
