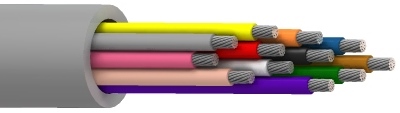

8457MN

SpaceMaker™, 12 C #22 Str TC, PO Ins, PVC Jkt, AWM 2937

...
SpaceMaker™, 12 Conductor 22AWG (19x34) Tinned Copper, PO Insulation, PVC Outer Jacket, AWM 2937
English
Request Quote
Share
Request Sample Get Product Alerts
Specifications
Report An Error
Construction Details
Conductor
Element Number of Element Size Stranding Material
Conductor(s) 12 22 AWG 19x34 TC - Tinned Copper
Insulation
Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Conductor(s) PP - Polypropylene 0.010 in (0.25 mm) 0.050 in (1.3 mm) Black, White, Red, Green, Brown, Blue, Orange, Yellow, Purple, Gray, Pink, Tan
Outer Shield
Material
No Shield
Outer Jacket
Material Nom. Thickness Nom. Diameter
PVC - Polyvinyl Chloride 0.016 in (0.41 mm) 0.240 in

Overall Cable Diameter (Nominal)

0.240 in

Electrical Characteristics
Electricals
Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Characteristic Impedence Max. Current
18.1 Ohm/1000ft 16.6 pF/ft (54.5 pF/m) 51 Ohm 2.03 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating
300 V
Mechanical Characteristics
Temperature
UL Temperature Operating
80°C -20°C To +80°C
Bend Radius
Stationary Min. Installation Min.
0.960 in (24.4 mm) 0.960 in

Max. Pull Tension

114 lbs (51.7 kg)

Bulk Cable Weight

41 lbs/1000ft

Standards and Compliance

Environmental Suitability

Indoor

AWM Compliance

AWM 2937

European Directive Compliance

EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

History

Update and Revision

Revision Number: 0.201 Revision Date: 05-05-2023

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Putup Type Length UPC
8457MN 006100 Blue, Light Reel 100 ft 612825389828
8457MN 0061000 Blue, Light Reel 1,000 ft 612825389859
8457MN 008100 Gray Reel 100 ft 612825389835
8457MN 0081000 Gray Reel 1,000 ft 612825389866
8457MN 004100 Yellow Reel 100 ft 612825389811
8457MN 0041000 Yellow Reel 1,000 ft 612825389842
Show All Parts Number
Show Less
