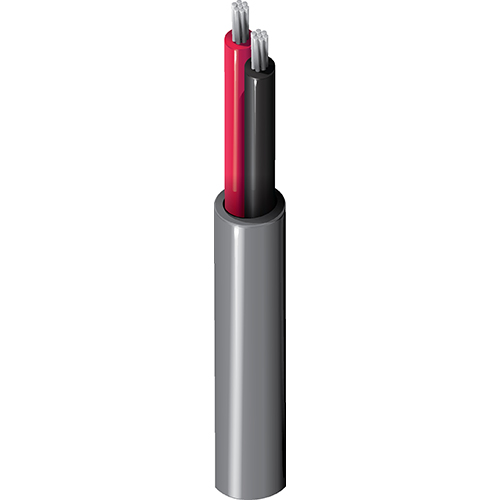

85102

Electronic, 2 C #16 Str TC, ETFE Ins, ETFE Jkt

...
High Temperature Electronic, 2 Conductor 16AWG (19x29) Tinned Copper, ETFE Insulation, ETFE Outer Jacket
English
Request Quote
Share
Request Sample Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

extreme high/low temperature environments; chemical resistant; low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, …); instrumentation

Construction Details
Conductor
Element No. of Elements Size Stranding Material
Conductor(s) 2 16 19x29 TC - Tinned Copper
Insulation
Material Nom. Thickness Nom. Insulation Diameter Color Code
ETFE - Ethylene Tetrafluoroethylene 0.0145 in (0.368 mm) 0.082 in (2.1 mm) Black, White
Outer Jacket
Material Nom. Thickness Nom. Diameter
ETFE - Ethylene Tetrafluoroethylene 0.019 in (0.48 mm) 0.211 in (5.36 mm)
Electrical Characteristics
Electricals
Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Max. Current
4.76 Ohm/1000ft 20 pF/ft (66 pF/m) 9.5 Amps per Conductor at 25ºC
Voltage
Voltage Rating
300 V
Mechanical Characteristics
Temperature
Operating
-60°C To +150°C
Bend Radius
Stationary Min. Installation Min.
2.11 in (53.6 mm) 2.11 in (53.6 mm)

Max. Pull Tension

64.8 lbs (29.4 kg)

Bulk Cable Weight

28 lbs/1000ft

Standards and Compliance

European Directive Compliance

EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

APAC Compliance

China RoHS II (GB/T 26572-2011)

Product Notes

Notes

Tefzel is a trademark of Dupont.

History

Update and Revision

Revision Number: 0.476 Revision Date: 01-20-2023

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Putup Type Length UPC Footnote
85102 368500 Clear, Transparent Reel 500 ft 612825210597 C
85102 3681000 Clear, Transparent Reel 1,000 ft 612825210580 C
