Product Number: 8618
Electronic, 3 C #16 Str TC, PE Ins, OS, PVC Jkt, CL3

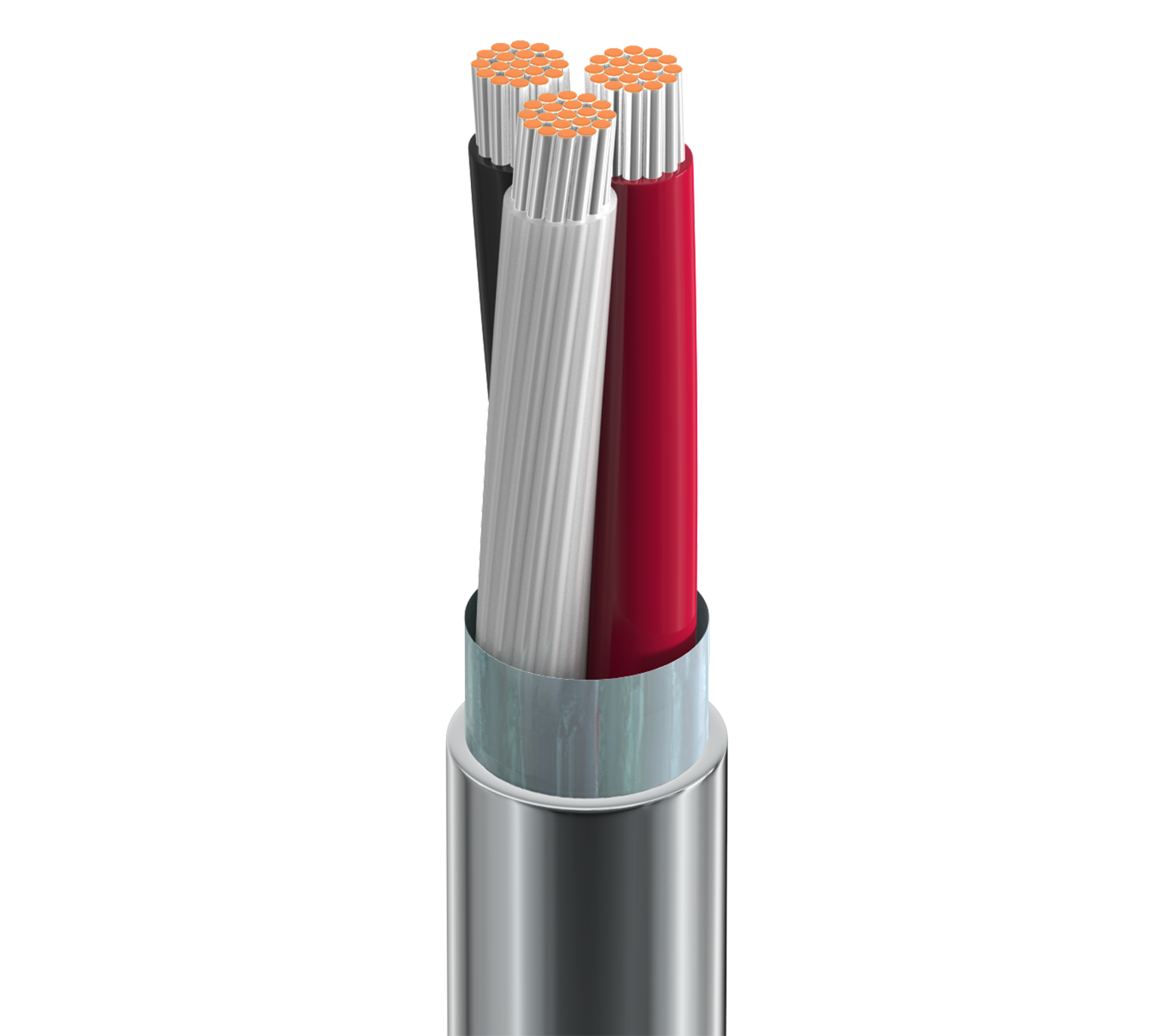

Electronic, 3 Conductor 16AWG (19x29) Tinned Copper, PE Insulation, Overall Beldfoil® Shield, PVC Outer Jacket, CL3
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, …); line level audio; voice communications; panel wiring |
|---|
Construction Details
Conductor
| Element | No. of Elements | Size | Stranding | Material |
|---|---|---|---|---|
| Conductor(s) | 3 | 16 AWG | 19x29 | TC - Tinned Copper |
Insulation
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
|---|---|---|---|---|
| Conductor(s) | PE - Polyethylene | 0.032 in (0.81 mm) | 0.122 in (3.10 mm) | Black, Red, Clear |
Outer Shield
| Shield Type | Material | Coverage | Drainwire Type |
|---|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | 100% | 18 AWG (16x30) TC |
Outer Jacket
| Material | Nom. Thickness | Nom. Diameter |
|---|---|---|
| PVC - Polyvinyl Chloride | 0.031 in (0.79 mm) | 0.327 in (8.31 mm) |
|
Overall Cable Diameter (Nominal) |
0.327 in (8.31 mm) |
|---|
Electrical Characteristics
Electricals
| Element | Nom. Conductor DCR | Nom. Capacitance Cond-to-Cond | Nom. Capacitance Cond-to-Other (Conds + Shield) | Max. Current |
|---|---|---|---|---|
| Conductor(s) | 4.44 Ohm/1000ft | 26 pF/ft (85 pF/m) | 50 pF/ft (160 pF/m) | 16 Amps per Conductor at 30ºC |
Voltage
| UL Voltage Rating |
|---|
| 600 V (UL AWM 20253), 300 V (CL3) |
Mechanical Characteristics
Temperature
| UL Temperature | Operating |
|---|---|
| 80°C | -20°C to +80°C |
Bend Radius
| Stationary Min. | Installation Min. |
|---|---|
| 3.3 in (84 mm) | 3.3 in (84 mm) |
|
Max. Pull Tension |
141 lbs (64.0 kg) |
|---|---|
|
Bulk Cable Weight |
60 lbs/1000ft |
Standards and Compliance
|
Environmental Suitability |
Indoor |
|---|---|
|
Sustainability |
CA Prop 65 |
|
Flammability / Reaction to Fire |
UL 1685 UL loading , IEC 60332-1-2 |
|
CPR Compliance |
CPR Euroclass: Eca |
|
NEC / UL Compliance |
Article 725, CL3 |
|
AWM Compliance |
AWM 20253 |
|
European Directive Compliance |
EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
|
UK Regulation Compliance |
UKCA Mark |
|
APAC Compliance |
China RoHS II (GB/T 26572-2011) |
History
|
Update and Revision |
Revision Number: 0.524 Revision Date: 02-03-2025 |
|---|
Belden.GenericSpecificationTitle
|
Update and Revision |
Revision Number: 0.524 Revision Date: 02-03-2025 |
|---|
Part Numbers
| Item # | Color | Putup Type | Length | UPC | Footnote |
|---|---|---|---|---|---|
| 8618 060500 | Chrome | Reel | 500 ft | 612825213420 | C |
| 8618 060U500 | Chrome | UnReel | 500 ft | 612825213406 | |
| 8618 0601000 | Chrome | Reel | 1,000 ft | 612825213413 | C |
| 8618 0605000 | Chrome | Reel | 5,000 ft | 612825213437 |
