8675

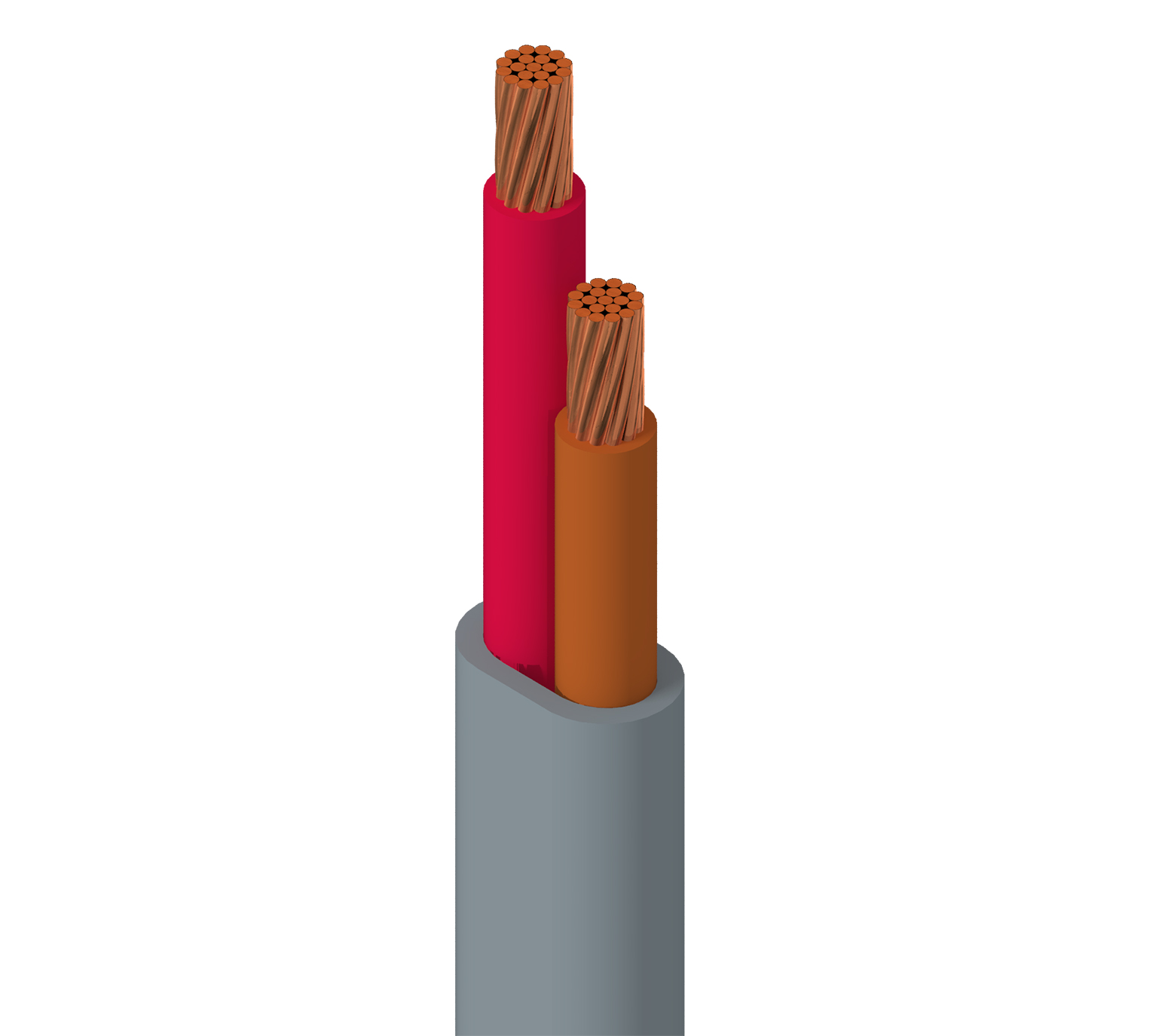

Electronic, 2 C #14 Str BC, PVC Ins

...
Electronic, 2 Conductor 14AWG (19x26H) Bare Copper, PVC Insulation
Request Sample Get Product Alerts
Specifications
Product Overview

Suitable Applications

low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, …); line level audio

Construction Details
Conductor
Element Number of Element Size Stranding Material
Conductor(s) 2 14 AWG 19x26 BC - Bare Copper
Insulation
Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Conductor(s) PVC - Polyvinyl Chloride 0.023 in (0.58 mm) 0.122 in (3.10 mm) Brown, Red
Outer Shield
Material
No Shield
Outer Jacket
Material Nom. Thickness Nom. Diameter
PVC - Polyvinyl Chloride 0.023 in (0.58 mm) 0.168 x 0.29 in

Overall Cable Diameter (Nominal)

0.168 x 0.29 in

Electrical Characteristics
Electricals
Nom. Conductor DCR Max. Current
7.06 Ohm/1000ft 8.5 Amps per Conductor at 25ºC
Voltage
Voltage Rating
300 V
Mechanical Characteristics
Temperature
UL Temperature Operating
75°C -20°C To +75°C
Bend Radius
Stationary Min. Installation Min.
0.4872 in (12.37 mm) 0.4872 in

Max. Pull Tension

95 lbs (43 kg)

Bulk Cable Weight

44 lbs/1000ft

Standards and Compliance

European Directive Compliance

EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

APAC Compliance

China RoHS II (GB/T 26572-2011)

History

Update and Revision

Revision Number: 0.395 Revision Date: 04-08-2022

Part Numbers
Item # Color Putup Type Length UPC
8675 060500 Chrome Reel 500 ft 612825214021
