8794

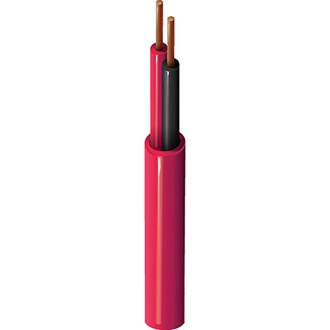

Electronic, 3 C #22 Sol BC, PO Ins, PVC Jkt, CM

...
Electronic, 3 Conductor 22AWG (Solid) Bare Copper, PO Insulation, PVC Outer Jacket, CM
English
Request Quote
Share
Request Sample Get Product Alerts
Specifications
Report An Error
Product Overview

Suitable Applications

low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, …); line level audio; voice communications; panel wiring

Construction Details
Conductor
Element Number of Element Size Stranding Material
Conductor(s) 3 22 AWG Solid BC - Bare Copper
Insulation
Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Conductor(s) PE - Polyethylene 0.018 in (0.46 mm) 0.062 in (1.6 mm) Green, Red, Yellow
Outer Shield
Material
No Shield
Outer Jacket
Material Nom. Thickness Nom. Diameter
PVC - Polyvinyl Chloride 0.022 in (0.56 mm) 0.178 in

Overall Cable Diameter (Nominal)

0.178 in.

Electrical Characteristics
Electricals
Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Velocity of Prop. Max. Current
18.36 Ohm/1000ft 16 pF/ft (52 pF/m) 66% 3 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating
300 V
Mechanical Characteristics
Temperature
UL Temperature Operating
60°C -30°C To +60°C
Bend Radius
Stationary Min. Installation Min.
1.78 in (45.2 mm) 1.78 in

Max. Pull Tension

25.2 lbs (11.4 kg)

Bulk Cable Weight

21 lbs/1000ft

Standards and Compliance

Flammability / Reaction to Fire

UL 1685 UL Loading

NEC / UL Compliance

Article 800, CM

AWM Compliance

AWM 2093

European Directive Compliance

EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

APAC Compliance

China RoHS II (GB/T 26572-2011)

History

Update and Revision

Revision Number: 0.392 Revision Date: 05-05-2023

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Putup Type Length UPC
8794 6061000 Gray, Rose Reel 1,000 ft 612825216520
8794 606U1000 Gray, Rose UnReel 1,000 ft 612825216513
