Electronic, 4 C #18 Str TC, FEP Ins, FEP Jkt, CMP

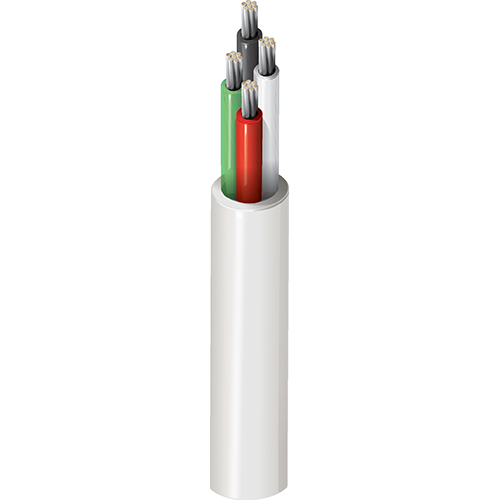

High Temperature Electronic, 4 Conductor 18AWG (19x30) Tinned Copper, FEP Insulation, FEP Outer Jacket, CMP

Request Quote

Request Sample Get Product Alerts

Specifications

Report An Error

Suitable Applications	extreme high/low temperature environments; chemical resistant; outdoor and burial applications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, …); line level audio; voice communications; panel wiring

Element	No. of Elements	Size	Stranding	Material
Conductor(s)	4	18	19x30	TC - Tinned Copper

Material	Nom. Thickness	Nom. Insulation Diameter	Color Code
FEP - Fluorinated Ethylene Propylene	0.0065 in (0.17 mm)	0.042 in (1.1 mm)	Black, White, Red, Green

Material	Nom. Thickness	Nom. Diameter
FEP - Fluorinated Ethylene Propylene	0.009 in (0.23 mm)	0.156 in

Nom. Conductor DCR	Nom. Capacitance Cond-to-Cond	Max. Current
6.4 Ohm/1000ft	21 pF/ft (69 pF/m)	11.52 Amps per Conductor at 25ºC

UL Voltage Rating
300 V

Operating
-70°C To +200°C

Stationary Min.	Installation Min.
1.56 in (39.6 mm)	1.56 in

Max. Pull Tension	82 lbs (37 kg)
Bulk Cable Weight	28 lbs/1000ft

Environmental Suitability	Outdoor, Burial
Flammability / Reaction to Fire	NFPA 262
CPR Compliance	CPR Euroclass: Eca
NEC / UL Compliance	Article 800, CL3P, CMP
CEC / C(UL) Compliance	CMP
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
UK Regulation Compliance	UKCA Mark
APAC Compliance	China RoHS II (GB/T 26572-2011)
Non-Plenum Number	8489

Update and Revision	Revision Number: 0.358 Revision Date: 11-27-2023

Part Numbers

Item #	Color	Putup Type	Length	UPC	Footnote
88489 0021000	Red	Reel	1,000 ft	612825217046	C
