8871MN

SpaceMaker™, 7 C #18 Str TC, PO Ins, OS, PVC Jkt, AWM 2937

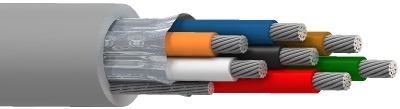

SpaceMaker™, 7 Conductor 18AWG (41x34) Tinned Copper, PO Insulation, Overall Beldfoil® Shield, PVC Outer Jacket, AWM 2937

Request Quote

Request Sample Get Product Alerts

Specifications

Report An Error

Element	No. of Elements	Size	Stranding	Material
Conductor(s)	7	18 AWG	41x34	TC - Tinned Copper

Element	Material	Nom. Thickness	Nom. Insulation Diameter	Color Code
Conductor(s)	PP - Polypropylene	0.010 in (0.25 mm)	0.067 in (1.7 mm)	Black, White, Red, Dark Green, Brown, Dark Blue, Orange

Shield Type	Material	Coverage	Drainwire Type
Tape	Bi-Laminate (Alum+Poly)	100%	18 AWG (19x30H) TC

Material	Nom. Thickness	Nom. Diameter
PVC - Polyvinyl Chloride	0.016 in (0.41 mm)	0.237 in

Overall Cable Diameter (Nominal)	0.237 in.

Nom. Conductor DCR	Nom. Capacitance Cond-to-Cond	Nom. Capacitance Cond-to-Shield	Nom. Characteristic Impedence	Max. Current
7.06 Ohm/1000ft	39 pF/ft (130 pF/m)	14.8 pF/ft (48.6 pF/m)	39 Ohm	3.5 Amps per Conductor at 25ºC

UL Voltage Rating
300 V

UL Temperature	Operating
80°C	-20°C To +80°C

Stationary Min.	Installation Min.
0.948 in (24.1 mm)	0.948 in

Max. Pull Tension	143.5 lbs (65.09 kg)
Bulk Cable Weight	55 lbs/1000ft

Environmental Suitability	Indoor
Flammability / Reaction to Fire	FT2
AWM Compliance	AWM 2937
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

Update and Revision	Revision Number: 0.223 Revision Date: 05-05-2023

Part Numbers

Item #	Color	Putup Type	Length	UPC
8871MN 006100	Blue, Light	Reel	100 ft	612825391050
8871MN 0061000	Blue, Light	Reel	1,000 ft	612825391081
8871MN 008100	Gray	Reel	100 ft	612825391067
8871MN 0081000	Gray	Reel	1,000 ft	612825391098
8871MN 004100	Yellow	Reel	100 ft	612825391043
8871MN 0041000	Yellow	Reel	1,000 ft	612825391074
