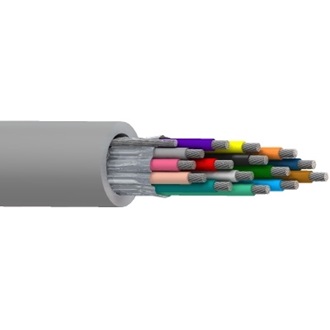

8886MN

SpaceMaker™, 15 C #22 Str TC, PO Ins, OS, PVC Jkt, AWM 2937

...
SpaceMaker™, 15 Conductor 22AWG (19x34) Tinned Copper, PO Insulation, Overall Beldfoil® Shield, PVC Outer Jacket, AWM 2937
English
Request Quote
Share
Request Sample Get Product Alerts

Specifications
Report An Error
Physical Characteristics (Overall)
Conductor
AWG Stranding Material No. of Conductors
22 19x34 TC - Tinned Copper 15

Conductor Count

15

Insulation
Material Nominal Wall Thickness
PP - Polypropylene 0.016 in
Color Chart
Color
Black
White
Red
Dark Green
Brown
Dark Blue
Orange
Yellow
Purple
Gray
Pink
Tan
Aqua
Light Green
Light Blue
Outer Shield
Type Material Material Trade Name Coverage [%] Drainwire Material Drainwire AWG
Tape Bi-Laminate (Alum+Poly) Beldfoil® 100% TC - Tinned Copper 22
Outer Jacket
Material Nominal Diameter Nominal Wall Thickness
PVC - Polyvinyl Chloride 0.271 in 0.016 in
Electrical Characteristics
Conductor DCR
Nominal Conductor DCR
14.9 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Conductor Nom. Capacitance Conductor to Shield
33.0 pF/ft 66.0 pF/ft
Inductance
Nominal Inductance
0.031 µH/ft
Impedance
Nominal Characteristic Impedance
22 Ohm
Voltage
UL Voltage Rating
300 V RMS
Temperature Range

UL Temp Rating

80°C

Operating Temperature Range

-20°C To +80°C

Mechanical Characteristics

Bulk Cable Weight

74 lbs/1000ft

Max. Pull Tension

77 lbs

Min. Bend Radius During Installation

1.080 in

Min. Bend Radius (Continuous Flexing)

2.710 in
Standards

UL AWM Style Compliance

AWM 2937 (300 V 80C)
Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV)

Yes

EU Directive 2003/96/EC (BFR)

Yes

EU Directive 2011/65/EU (RoHS 2)

Yes

EU Directive 2012/19/EU (WEEE)

Yes

EU Directive 2015/863/EU (RoHS 2 amendment)

Yes

EU Directive Compliance

Yes

EU CE Mark

Yes

Suitability

Suitability - Indoor

Yes

Flammability, LS0H, Toxicity Testing

CSA Flammability

FT2

UL voltage rating

300 V RMS

History

Update and Revision

Revision Number: 0.219 Revision Date: 05-05-2023

Show All Specifications
Hide Specifications
