9458

Electronic, 15 C #20 Str TC, PVC Ins, PVC Jkt, CMG

...

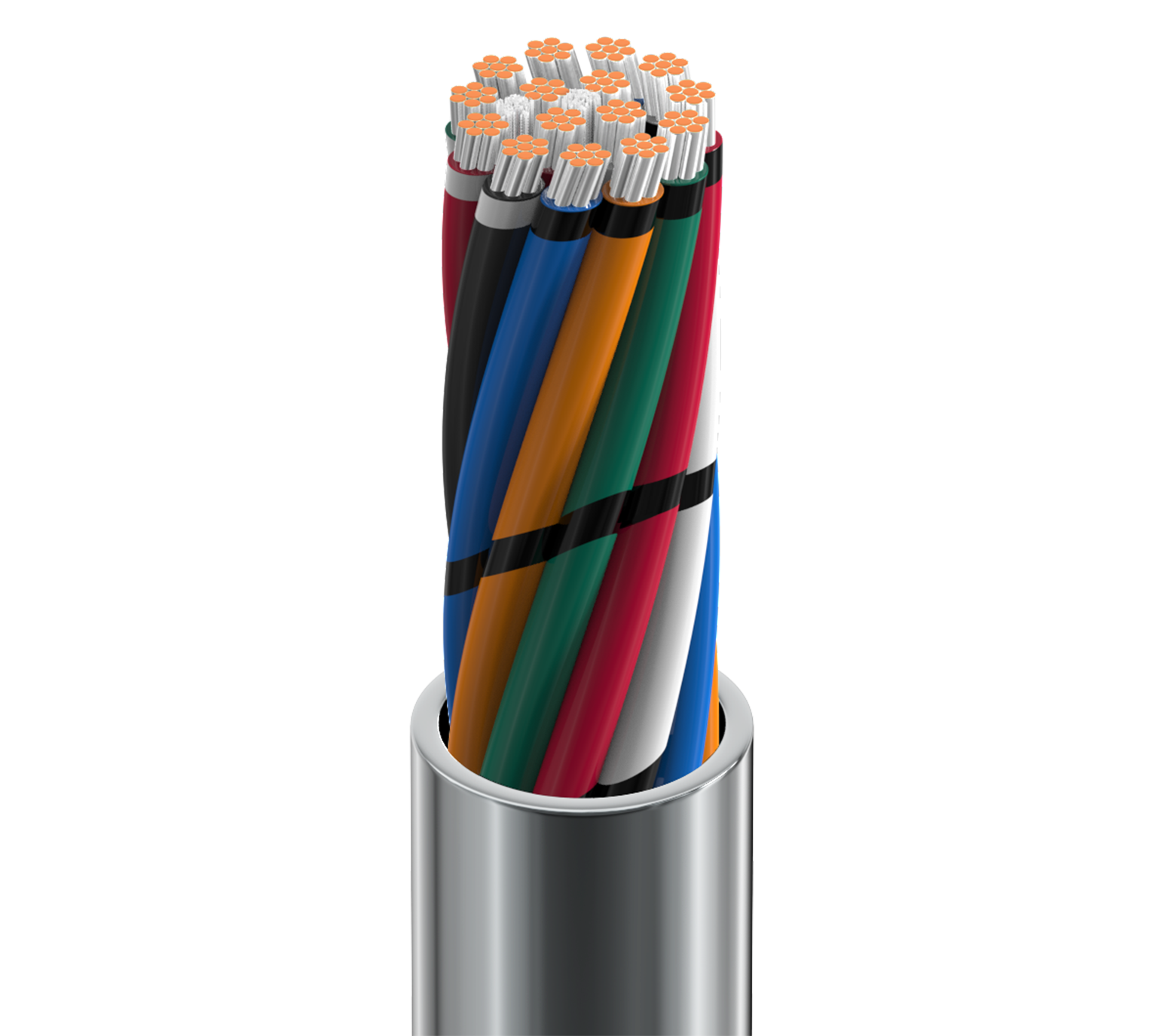

Electronic, 15 Conductor 20AWG (7x28) Tinned Copper, PVC Insulation, PVC Outer Jacket, CMG
Request Sample Get Product Alerts
Specifications
Product Overview

Suitable Applications

low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, …); line level audio; voice communications; panel wiring

Construction Details
Conductor
Element Number of Element Size Stranding Material
Conductor(s) 15 20 AWG 7x28 TC - Tinned Copper
Insulation
Element Material Nom. Thickness Color Code
Conductor(s) PVC - Polyvinyl Chloride 0.015 in (0.38 mm) Black, White, Red, Green, Orange, Blue, White/Black Stripe, Red/Black Stripe, Green/Black Stripe, Orange/Black Stripe, Blue/Black Stripe, Black/White Stripe, Red/White Stripe, Green/White Stripe, Blue/White Stripe
Outer Jacket
Material Nom. Thickness Nom. Diameter
PVC - Polyvinyl Chloride 0.040 in (1.0 mm) 0.389 in (9.88 mm)

Overall Cable Diameter (Nominal)

0.389 in (9.88 mm)

Electrical Characteristics
Electricals
Element Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Max. Current
Conductor(s) 10.7 Ohm/1000ft (35.1 Ohm/km) 27 pF/ft (89 pF/m) 2.8 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating
300 V (CMG), 300 V (UL AWM 2464)
Mechanical Characteristics
Temperature
UL Temperature Operating
80°C (UL AWM 2464) -20°C to +80°C
Bend Radius
Stationary Min. Installation Min.
3.9 in (99 mm) 3.9 in (99 mm)

Max. Pull Tension

189 lbs (85.7 kg)

Bulk Cable Weight

100 lbs/1000ft (150 kg/km)

Standards and Compliance

Environmental Suitability

Indoor (Not Riser or Plenum), Indoor

Flammability / Reaction to Fire

UL1685 FT4 Loading, FT4

NEC / UL Compliance

Article 800, CMG

AWM Compliance

AWM 2464

CEC / C(UL) Compliance

CMG

European Directive Compliance

EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

APAC Compliance

China RoHS II (GB/T 26572-2011)

History

Update and Revision

Revision Number: 0.357 Revision Date: 04-08-2022
