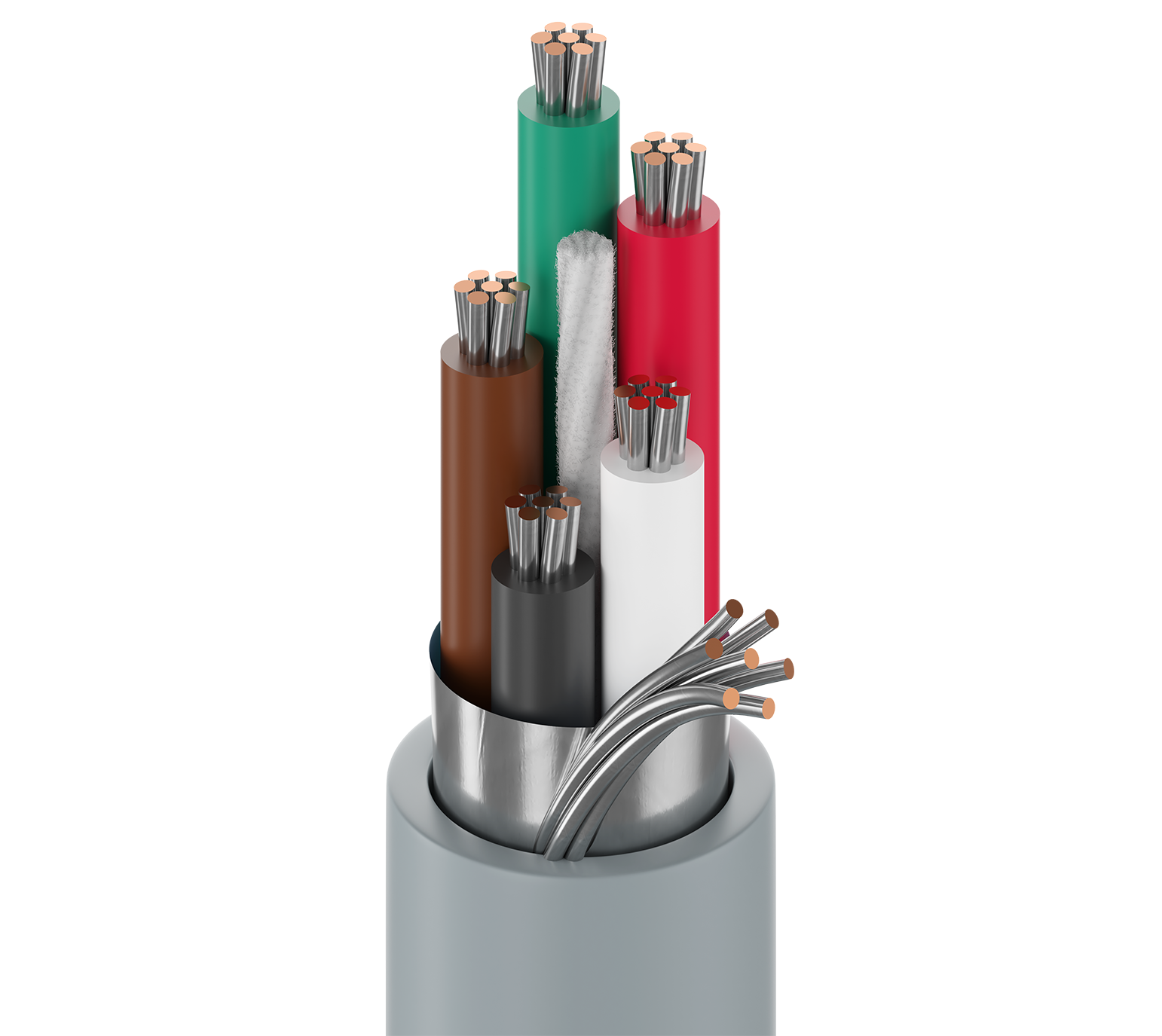

Product Number: 9535ELW

RS-232, 5C #24 str TC, LSZH ins, OS, LSZH Jkt, Cca

24 AWG stranded (7x32) tinned copper conductors, 5 conductors cabled, LSZH insulation, overall Beldfoil® shield (100% coverage), 24 AWG stranded tinned copper drain wire, LSZH jacket, Cca

  • Availability:
    Global
  • Status:
    Active
9535ELW
5 of 5

Specifications

Expand All

Suitable Applications

RS-232 Applications; Computer Communications; Low Voltage Analog Signals (4-20mA, 0-10V, ...); Low Voltage Digital Control (24V, …); Line Level Audio; Panel Wiring

Conductor

Size Stranding Material
24 7x32 TC - Tinned Copper

Insulation

Material Nom. Insulation Diameter
LSZH - Low Smoke Zero Halogen (Flame Retardant) 1.25 mm (0.0492 in)

Outer Shield

Shield Type Material
Tape Bi-Laminate (Alum+Poly)

Outer Jacket

Material Nom. Thickness Nom. Diameter
LSZH - Low Smoke Zero Halogen (Flame Retardant) 1.20 mm (0.0472 in) 6 mm (0.24 in)

Electricals

Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Other (Conds + Shield)
82 Ohm/km (25 Ohm/1000ft) 100 pF/m (30 pF/ft) 190 pF/m (58 pF/ft)

Nom Outer Shield DCR

59.1 Ohm/km (18.0 Ohm/1000ft)

Temperature

Installation Storage
-20 to +70 -30 to +70 °C

Bend Radius

Installation Min.
60 mm (2.4 in)

Max. Pull Tension

125 N (28.1 lbf)

Environmental Suitability

Indoor - Euroclass Cca, Sunlight Resistance

Flammability / Reaction to Fire

IEC 60332-1-2

CPR Compliance

CPR Euroclass: Cca-s1,d1,a1

CENELEC Compliance

EN 50290-2-20

European Halogen Free Standards

IEC 62821-1 Halogen Free Compliance = Yes, IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity = 2.5 µS/mm, IEC 60754-2 - Halogen Acid Gas Amount - Min. pH = 4.3

Update and Revision

Revision Number: 0.20 Revision Date: 09-07-2025
