RS232, #24-8c, SR-PVC, O/A Foil, PVC Jkt, CMG

...

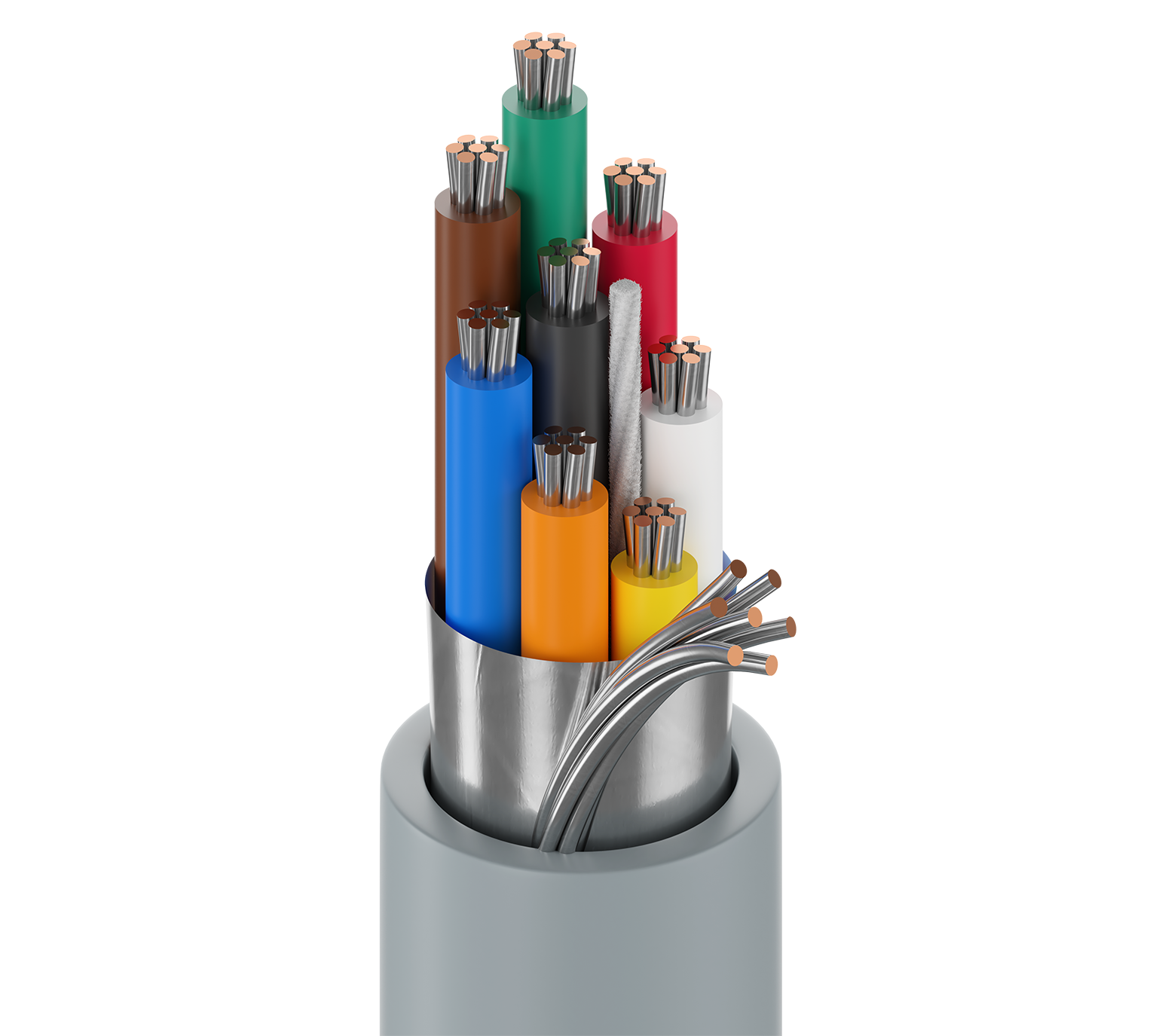

Computer EIA RS-232 Cable, 24 AWG stranded (7x32) tinned copper conductors, semi-rigid PVC insulation, overall Beldfoil® shield (100% coverage), 24 AWG stranded tinned copper drain wire, PVC jacket.
English
Request Quote
Share
Get Product Alerts
Specifications
Report An Error
Product Overview

Suitable Applications

RS-232 Applications; Computer Communications; Low Voltage Analog Signals (4-20mA, 0-10V, ...); Low Voltage Digital Control (24V, …); Line Level Audio; Panel Wiring

Construction Details
Conductor
Element Number of Element Size Stranding Material
Conductor(s) 8 24 AWG 7x32 TC - Tinned Copper
Insulation
Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Conductor(s) SR-PVC - Polyvinyl Chloride (Semi-Rigid) 0.011 in (0.28 mm) 0.044 in (1.1 mm) Black, White, Red, Green, Brown, Blue, Orange, Yellow
Outer Shield
Shield Type Material Coverage Drainwire Type
Tape Bi-Laminate (Alum+Poly) 100% 24 AWG (7x32) TC
Outer Jacket
Material Nom. Thickness Nom. Diameter
PVC - Polyvinyl Chloride 0.032 in (0.81 mm) 0.224 in (5.69 mm)

Overall Cable Diameter (Nominal)

0.224 in (5.69 mm)

Electrical Characteristics
Electricals
Element Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Other (Conds + Shield) Max. Current
Conductor(s) 25 Ohm/1000ft 33 pF/ft (110 pF/m) 65 pF/ft (210 pF/m) 1.5 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating
300 V (CMG), 300 V (UL AWM 2464)
Mechanical Characteristics
Temperature
UL Temperature Operating
60°C (UL CMG);80°C (UL AWM 2464) -30°C to +80°C
Bend Radius
Stationary Min. Installation Min.
2.7 in (69 mm) 2.7 in (69 mm)

Max. Pull Tension

50 lbs (23 kg)

Bulk Cable Weight

31 lbs/1000ft

Standards and Compliance

Environmental Suitability

Indoor (Not Riser or Plenum), Indoor

Sustainability

CA Prop 65

Flammability / Reaction to Fire

UL 1685 FT4 Loading, FT4, IEC 60332-1-2

CPR Compliance

CPR Euroclass: Eca; CPR UKCA Class: Eca

NEC / UL Compliance

Article 800, CMG

AWM Compliance

AWM 2464

CEC / C(UL) Compliance

CMG

European Directive Compliance

EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

UK Regulation Compliance

UKCA Mark

APAC Compliance

China RoHS II (GB/T 26572-2011)

History

Update and Revision

Revision Number: 0.531 Revision Date: 04-19-2023

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Putup Type Length UPC/EAN
9538.0030 Chrome Reel 30 m 8719605021953
9538 060100 Chrome Reel 100 ft 612825255345
9538.00U152 Chrome UnReel 152 m 8719605021960
9538.01152 Chrome Reel 152 m 8719605021984
9538.00U305 Chrome UnReel 305 m 8719605021977
9538.01305 Chrome Reel 305 m 8719605021991
9538 060500 Chrome Reel 500 ft 612825255369
9538 060U500 Chrome UnReel 500 ft 612825255338
9538 0601000 Chrome Reel 1,000 ft 612825255352
9538 060U1000 Chrome UnReel 1,000 ft 612825255321
9538.011000 Chrome Reel 1,000 m 8719605186683
9538 0605000 Chrome Reel 5,000 ft 612825255376
