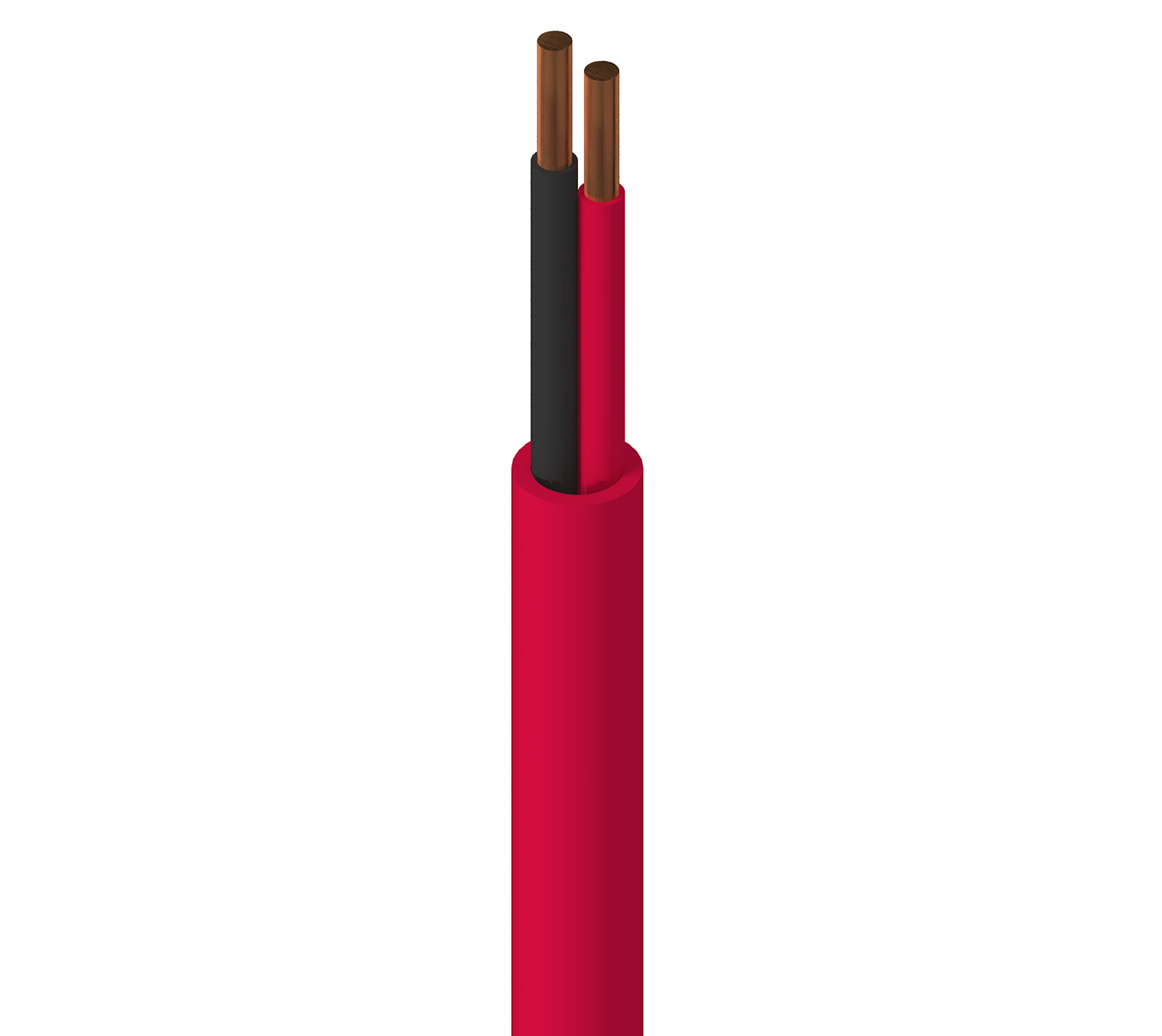

Electronic, 2 C #18 Sol BC, PVC Ins, Red PVC Jkt, FPLR

Electronic, 2 Conductor 18AWG (Solid) Bare Copper, PVC Insulation, Red PVC Outer Jacket, FPLR

Request Quote

Request Sample Get Product Alerts

Specifications

Report An Error

Suitable Applications	fire alarms; indoor applications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, …)

Element	No. of Elements	Size	Stranding	Material
Conductor(s)	2	18 AWG	Solid	BC - Bare Copper

Element	Material	Nom. Thickness	Nom. Insulation Diameter	Color Code
Conductor(s)	PVC - Polyvinyl Chloride	0.017 in (0.43 mm)	0.072 in mm	Black, Red

Material
No Shield

Material	Nom. Thickness	Nom. Diameter
PVC - Polyvinyl Chloride	0.037 in (0.94 mm)	0.228 in

Overall Cable Diameter (Nominal)	0.228 in

Nom. Conductor DCR	Nom. Capacitance Cond-to-Cond	Max. Current
6.3 Ohm/1000ft	22 pF/ft (72 pF/m)	5.2 Amps per Conductor at 25ºC

UL Voltage Rating
300 V

UL Temperature	Operating
105°C	-40°C To +105°C

Stationary Min.	Installation Min.
2.28 in (57.9 mm)	2.28 in

Max. Pull Tension	39.2 lbs (17.8 kg)
Bulk Cable Weight	26 lbs/1000ft

Flammability / Reaction to Fire	UL 1666 riser, FT4
CPR Compliance	CPR Euroclass: Eca
NEC / UL Compliance	Article 760, Article 800, CMR, FPLR
AWM Compliance	AWM 2464
CEC / C(UL) Compliance	FAS105
European Directive Compliance	EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
UK Regulation Compliance	UKCA Mark
APAC Compliance	China RoHS II (GB/T 26572-2011)

Update and Revision	Revision Number: 0.393 Revision Date: 02-15-2024

Part Numbers

Item #	Color	UPC
9571 002U1000	Red	612825256083
9571 002U500	Red	612825256090
