Product Number: 9579

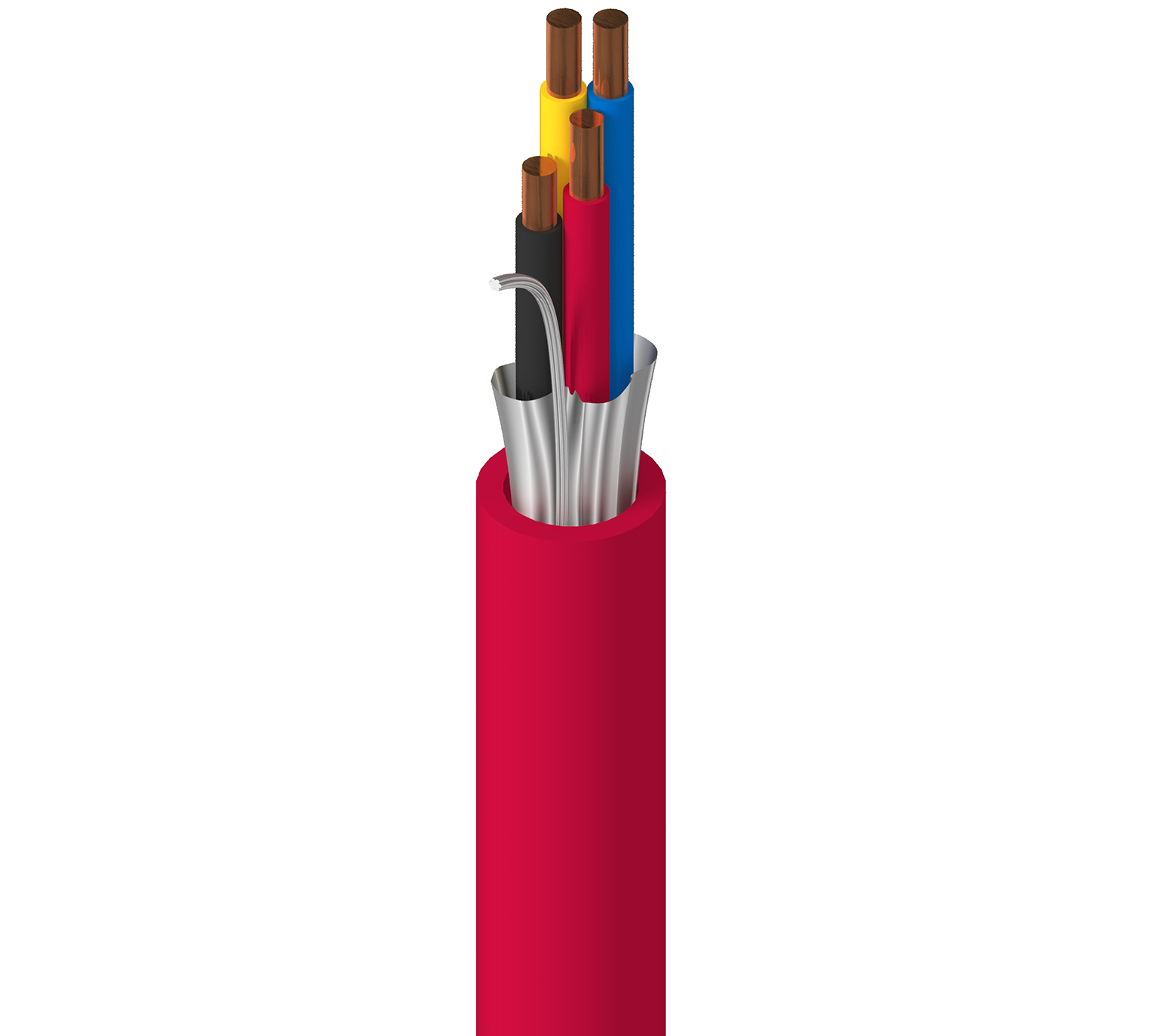

Electronic, 4 C #16 Sol BC, PVC Ins, OS, Red PVC Jkt, FPLR
Electronic, 4 Conductor 16AWG (Solid) Bare Copper, PVC Insulation, Overall Beldfoil® Shield, Red PVC Outer Jacket, FPLR
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
fire alarms; indoor applications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, …) |
|---|
Construction Details
Conductor
| Element | No. of Elements | Size | Stranding | Material |
|---|---|---|---|---|
| Conductor(s) | 4 | 16 AWG | Solid | BC - Bare Copper |
Insulation
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
|---|---|---|---|---|
| Conductor(s) | PVC - Polyvinyl Chloride | 0.018 in (0.46 mm) | 0.087 in (2.2 mm) | Black, Red, Yellow, Blue |
Outer Shield
| Shield Type | Material | Coverage | Drainwire Type |
|---|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | 100% | 22 AWG (7x30) TC |
Outer Jacket
| Material | Nom. Thickness | Nom. Diameter |
|---|---|---|
| PVC - Polyvinyl Chloride | 0.042 in (1.1 mm) | 0.301 in |
|
Overall Cable Diameter (Nominal) |
0.301 in |
|---|
Electrical Characteristics
Electricals
| Element | Nom. Conductor DCR | Nom. Capacitance Cond-to-Cond | Nom. Capacitance Cond-to-Other (Conds + Shield) | Max. Current |
|---|---|---|---|---|
| Conductor(s) | 4.1 Ohm/1000ft | 53 pF/ft (170 pF/m) | 98 pF/ft (320 pF/m) | 9.6 Amps per Conductor at 25ºC |
Voltage
| UL Voltage Rating |
|---|
| 300 V |
Mechanical Characteristics
Temperature
| UL Temperature | Operating |
|---|---|
| 105°C | -40°C To +105°C |
Bend Radius
| Stationary Min. | Installation Min. |
|---|---|
| 3.01 in (76.5 mm) | 3.01 in |
|
Max. Pull Tension |
133 lbs (60.3 kg) |
|---|---|
|
Bulk Cable Weight |
65 lbs/1000ft |
Standards and Compliance
|
Environmental Suitability |
Indoor, Indoor, Sunlight Resistance |
|---|---|
|
Flammability / Reaction to Fire |
UL1666 Riser, FT4 |
|
CPR Compliance |
CPR Euroclass: Eca |
|
NEC / UL Compliance |
Article 760, Article 800, CMR, FPLR |
|
AWM Compliance |
AWM 2464 |
|
CEC / C(UL) Compliance |
CMG, FAS105 |
|
European Directive Compliance |
EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
|
UK Regulation Compliance |
UKCA Mark |
|
APAC Compliance |
China RoHS II (GB/T 26572-2011) |
|
Other Standard Compliance(s) |
California State Fire Marshall |
History
|
Update and Revision |
Revision Number: 0.576 Revision Date: 02-03-2025 |
|---|
Belden.GenericSpecificationTitle
|
Update and Revision |
Revision Number: 0.576 Revision Date: 02-03-2025 |
|---|
Part Numbers
| Item # | Color | Putup Type | Length | UPC/EAN | Footnote |
|---|---|---|---|---|---|
| 9579 0021000 | Red | 612825256205 | C | ||
| 9579.00305 | Red | Reel | 305 m | 8719605022356 |
