Product Number: 9729

RS232/422 Low Cap, #24-2pr, FPE, Indiv. Foil, PVC Jkt, CM, 100Ω

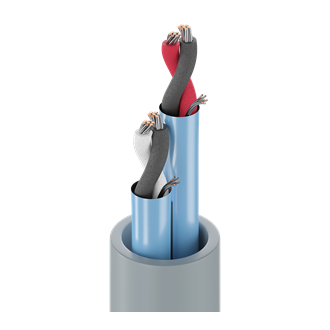

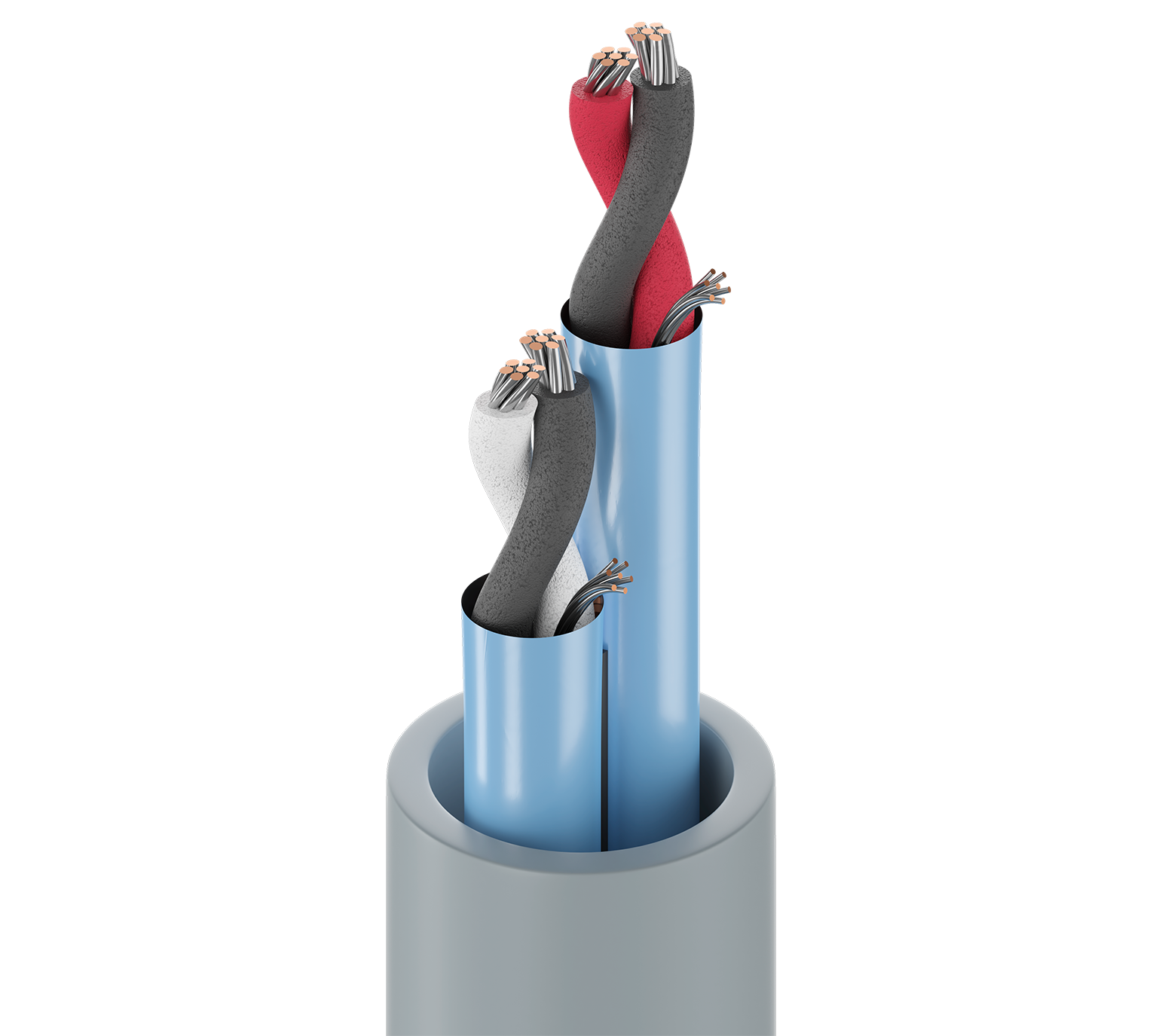

Computer EIA RS-232/422, Digital Audio Cable, 2-Pair, 24 AWG stranded (7x32) tinned copper conductors, Datalene® insulation, individually Beldfoil® shielded (100% coverage), 24 AWG stranded tinned copper drain wire, PVC jacket.

  • Availability:
    Global
  • Status:
    Active
9729
  • 9729
1 of 1

Specifications

Expand All

Suitable Applications

RS-422 applications; computer communications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); digital audio; panel wiring

Conductor

Element No. of Elements Size Stranding Material
Pair(s) 2 24 AWG 7x32 TC - Tinned Copper

Insulation

Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Pair(s) PE - Polyethylene (Foam) 0.019 in (0.48 mm) 0.061 in (1.5 mm) Black & Red, Black & White

Inner Shield

Element Shield Type Material Coverage Drainwire Type Notes
Pair(s) Tape Bi-Laminate (Alum+Poly) 100% 24 AWG (7x32) TC each pair

Outer Jacket

Material Nom. Thickness Nom. Diameter
PVC - Polyvinyl Chloride 0.048 in (1.2 mm) 0.266 in (6.76 mm)

Overall Cable Diameter (Nominal)

0.266 in (6.76 mm)

Electricals

Element Nom. Conductor DCR Nom. Inner Shield DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Other (Conds + Shield) Nom. Characteristic Impedence Nom. Inductance Nom. Velocity of Prop. Max. Current
Pair(s) 28.8 Ohm/1000ft 17.42 Ohm/1000ft (57.15 Ohm/km) 12.5 pF/ft (41.0 pF/m) 23.2 pF/ft (76.1 pF/m) 100 Ohm 0.23 µH/ft (0.75 µH/m) 76% 2.1 Amps per Conductor at 25ºC

High Frequency (Nominal/Typical)

Frequency [MHz] Nom. Insertion Loss (Attenuation)
0.384 0.74 dB/100m
0.7056 0.87 dB/100m
0.768 0.88 dB/100m
1.024 0.94 dB/100m
1.4112 1.01 dB/100m
1.536 1.03 dB/100m
2.048 1.13 dB/100m
2.8224 1.29 dB/100m
3.072 1.35 dB/100m
4.096 1.57 dB/100m
5.6448 1.78 dB/100m
6.144 1.84 dB/100m
8.192 2.13 dB/100m
11.2896 2.45 dB/100ft
12.288 2.57 dB/100ft
24.576 3.57 dB/100ft

Voltage

UL Voltage Rating
300 V (CM), 30 V (UL AWM 2919)

Temperature

UL Temperature Operating
80°C -20°C to +80°C

Bend Radius

Stationary Min. Installation Min.
2.7 in (69 mm) 2.7 in (69 mm)

Max. Pull Tension

27.5 lbs (12.5 kg)

Bulk Cable Weight

35 lbs/1000ft

Environmental Suitability

Indoor

Flammability / Reaction to Fire

UL 1685 FT4 Loading, IEC 60332-1-2

CPR Compliance

CPR Euroclass: Eca

NEC / UL Compliance

Article 800, CM

AWM Compliance

AWM 2919

CEC / C(UL) Compliance

CM

European Directive Compliance

EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

UK Regulation Compliance

UKCA Mark

APAC Compliance

China RoHS II (GB/T 26572-2011)

Plenum Number

89729, 82729

Notes

Datalene« insulation features include low dielectric constant and a dissipation factor for high-speed, low-distortion data handling. Physical properties include good crush resistance and light weight.

Update and Revision

Revision Number: 0.590 Revision Date: 09-07-2025

Footnote

C - CRATE REEL PUT-UP., Y - FINAL PUT-UP LENGTH MAY VAR -10% TO +20% FROM LENGTH SHOWN. MAY CONTAIN 2 PIECES. MINIMUM LENGTH OF ANY ONE PIECE IS 1500'.

Update and Revision

Revision Number: 0.590 Revision Date: 09-07-2025

Footnote

C - CRATE REEL PUT-UP., Y - FINAL PUT-UP LENGTH MAY VAR -10% TO +20% FROM LENGTH SHOWN. MAY CONTAIN 2 PIECES. MINIMUM LENGTH OF ANY ONE PIECE IS 1500'.

Report An Error

Part Numbers

Item # Color Putup Type Length UPC/EAN Footnote
9729.0030 Chrome Reel 30 m 8719605022455
9729 060100 Chrome Reel 100 ft 612825257530
9729.01152 Chrome Reel 152 m 8719605022486
9729.00305 Chrome Reel 305 m 8719605022462
9729 060500 Chrome Reel 500 ft 612825257561 C
9729.00500 Chrome Reel 500 m 8719605022479
9729 0601000 Chrome Reel 1,000 ft 612825257547 C
9729.001100 Chrome Reel 1,100 m 8719605022431
9729.002000 Chrome Reel 2,000 m 8719605022448
9729 0605000 Chrome Reel 5,000 ft 612825257578 C
9729 06010000 Chrome Reel 10,000 ft 612825257554 C Y
