9729LS

RS-232/422, 2PR #24 Str TC, PO ins, IF, LSNH Jkt, 300V, SWA

...
RS-232/422, 2 Pair AWG 24 Tinned Copper - Stranded, Polyolefin (PO, PE, PP) insulation, Individually Foiled + No Overall shielding, LSZH / FRNC jacket , 300V, SWA
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

Instrumentation and computer cable; For data transmission applications

Physical Characteristics (Overall)
Conductor
AWG Stranding Material No. of Pairs
24 7x32 TC - Tinned Copper 2

Conductor Count

4

Insulation
Material Material Trade Name Nominal Diameter Diameter +/- Tolerance
PE - Polyethylene (Foam) Datalene® 1.55 mm 0.06 mm
Color Chart
Number Color
Pair 1 Black & Red
Pair 2 Black & White

Table Notes

Shielded pairs

Color Chart 2
Number Color
Pair 1 Red
Pair 2 Green
Inner Shield
Type Material Material Trade Name Thickness of Foil Drainwire Material Drainwire AWG
Tape Bi-Laminate (Alum+Poly) Beldfoil® (Z-Fold®) 9 / 12 µm TC - Tinned Copper AWG24/7
Inner Jacket
Material Color Nominal Diameter Min. Wall Thickness Min. Average Wall Thickness
LSZH - Low Smoke Zero Halogen (Flame Retardant) Chrome (RAL 7037) 7.9 mm 0.91 mm 1.10 mm
Outer Shield
Material
Bi-Laminate (Alum+Poly)
Outer Jacket
Material Nominal Diameter Min. Wall Thickness Nominal Wall Thickness
LSZH - Low Smoke Zero Halogen (Flame Retardant) 12.5 mm 1.25 mm 1.35 mm

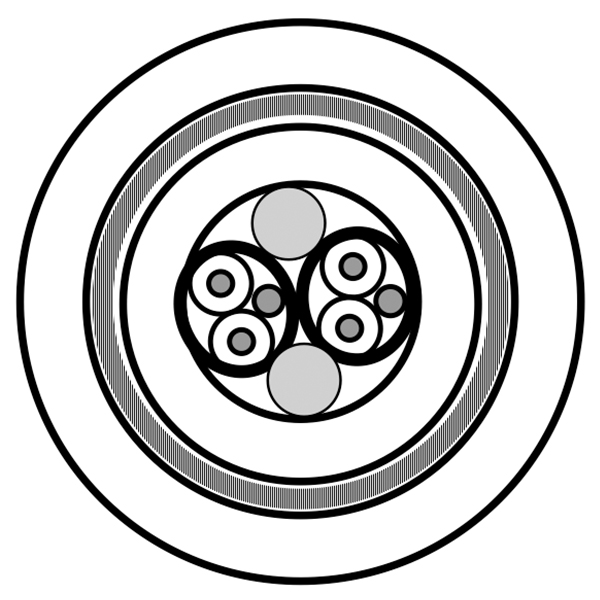

Construction and Dimensions
Cabling
Description Filler
2 pairs and 2 fillers twisted to cable core Polypropylene (Blue, 2.20 mm)
Armor
Type of Armor Material Thickness of Armoring Wires Coverage Percentage
Steel Wire Armoring Galvanized steel wire 0.9 mm Min. 95%
Electrical Characteristics
Conductor DCR
Nominal Conductor DCR Nominal Inner Shield DCR
78.7 Ohm/km 59.1 Ohm/km
Capacitance
Nom. Capacitance Conductor to Conductor Nom. Capacitance Conductor to Other Conductor to Shield
41 pF/m 76.1 pF/m
Inductance
Nominal Pair Inductance
0.49 µH/m
Impedance
Nominal Characteristic Impedance
100 Ohm
High Frequency (Nominal/Typical)
Frequency [MHz] Nom. Insertion Loss
2 MHz 4.63 dB/100m
3 MHz 5.35 dB/100m
4 MHz 5.91 dB/100m
5 MHz 6.5 dB/100m
6 MHz 6.89 dB/100m
11 MHz 9.15 dB/100m
12 MHz 9.51 dB/100m
24 MHz 13.16 dB/100m
Current
Element Max. Recommended Current [A]
Conductor(s) 1 A
Voltage
Voltage Rating [V]
300 V
Temperature Range

Installation Temperature Range

-15°C To +80°C

Storage Temperature Range

-45°C To +80°C

Operating Temp Range (Flexible Install)

-15°C To +80°C

Operating Temp Range (Fixed Install)

-45°C To +80°C

Mechanical Characteristics

Oil Resistance

IEC 60811-404

Min. Bend Radius During Installation

187.5 mm

Standards

CENELEC Compliance

EN 50290-2-20
Applicable Environmental and Other Programs

Environmental Space

Indoor, Indoor/Outdoor, Outdoor, Indoor/Outdoor - Euroclass Eca
Suitability

Suitability - Sunlight Resistance

Yes

Flammability, LS0H, Toxicity Testing

IEC Flammability

IEC 60332-3-24

IEC 60754-1 - Halogen Amount

Zero

IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity

2.5 µS/mm

IEC 60754-2 - Halogen Acid Gas Amount - Min. pH

4.3

IEC 61034-2 - Smoke Density Min. Transmittance

60%

History

Update and Revision

Revision Number: 0.236 Revision Date: 02-20-2024

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Put-Up Type Length EAN
9729LS.00500 Black Reel 500 m 8719605022516
9729LS.001000 Black Reel 1,000 m 8719605022509
9729LS.011000 Black Reel 1,000 m 8719605022523
