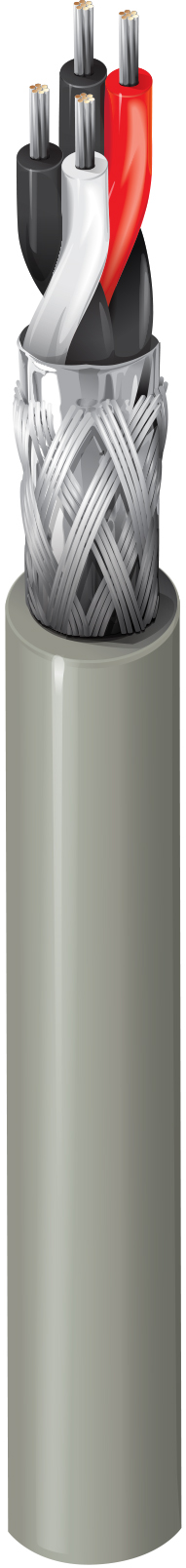

Product Number: 9829NH

RS232/422 Low Cap, #24-2pr, PE, O/A Foil+Braid, LSZH Jkt, Dca, 100Ω

2-Pair, 24 AWG stranded (7x32) TC conductors, polyethylene insulation, twisted pairs, overall Beldfoil® (100% coverage) + TC braid shield (65% coverage), 24 AWG stranded TC drain wire, LSZH jacket, Flame resistance IEC 60332-3C

  • Availability:
    Global
  • Status:
    Active
9829NH
5 of 5

Specifications

Expand All

Suitable Applications

RS-232 extended distance applications; RS-422 applications; computer communications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; panel wiring

Conductor

Size Stranding Material
24 7x32 TC - Tinned Copper

Insulation

Material Nom. Insulation Diameter Color Code
PE - Polyethylene 1.37 mm (0.0539 in) White/Blue & Blue/White, White/Orange & Orange/White

Outer Shield

Shield Type Material Coverage
Tape Bi-Laminate (Alum+Poly) 65%
Braid Tinned Copper (TC) 65%

Outer Jacket

Material Nom. Thickness Nom. Diameter
LSZH - Low Smoke Zero Halogen (Flame Retardant) 0.9 mm (0.035 in) 7.1 mm (0.28 in)

Electricals

Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Other (Conds + Shield) Nom. Characteristic Impedence Nom. Delay Nom. Velocity of Prop. Max. Current
78.7 Ohm/km (24.0 Ohm/1000ft) 50.9 pF/m (15.5 pF/ft) 90.2 pF/m (27.5 pF/ft) 100 Ohm 520 ns/ft 66% 2.1 Amps per Conductor

Nom Outer Shield DCR

14.3 Ohm/km (4.36 Ohm/1000ft)

Temperature

Installation Storage
-15°C To +80°C -45°C To +80°C

Bend Radius

Installation Min.
71 mm (2.8 in)

Max. Pull Tension

260 N (58 lbf)

Environmental Suitability

Indoor/Outdoor - Euroclass Dca, Indoor, Outdoor, Non-Halogenated, Sunlight Resistance - UL 1581 sec 1200 Black Only

Flammability / Reaction to Fire

IEC 60332-1-2, IEC 60332-3-24

CPR Compliance

CPR Euroclass: Dca-s2,d1,a1

CENELEC Compliance

EN 50290-2-20

European Halogen Free Standards

IEC 62821-1 Halogen Free Compliance = Yes, IEC 60754-1 - Halogen Amount = Zero, IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity = 2.5 µS/mm, IEC 60754-2 - Halogen Acid Gas Amount - Min. pH = 4.3, IEC 61034-2 - Smoke Density Min. Transmittance = 60%

UK Regulation Compliance

UKCA Mark

Update and Revision

Revision Number: 0.261 Revision Date: 03-09-2026

Update and Revision

Revision Number: 0.261 Revision Date: 03-09-2026


Report An Error

Part Numbers

Item # Color Putup Type Length EAN
9829NH.00152 Chrome Reel 152 m 8719605022714
9829NH.00305 Chrome Reel 305 m 8719605022721
9829NH.00500 Chrome Reel 500 m 8719605022738
9829NH.001000 Chrome Reel 1,000 m 8719605022707
