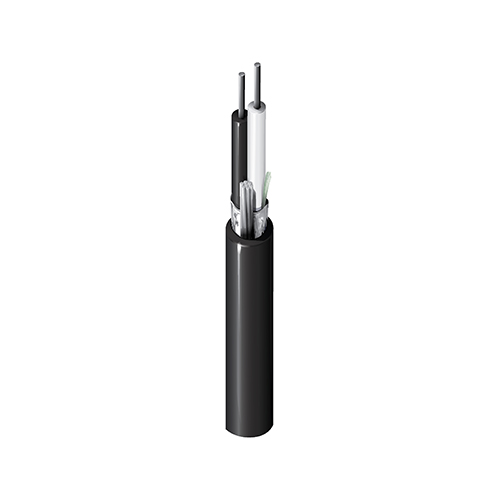

9890

Electronic, 10 C #20 Sol TC, PO Ins, OS, PO Jkt

...
Electronic, 10 Conductor 20AWG (Solid) Tinned Copper, PO Insulation, Overall Beldfoil® Shield, PO Outer Jacket
Request Sample Get Product Alerts

Specifications
Product Overview

Suitable Applications

direct burial applications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, …); line level audio; voice communications

Construction Details
Conductor
Element No. of Elements Size Stranding Material
Conductor(s) 10 20 AWG Solid TC - Tinned Copper
Insulation
Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Conductor(s) PP - Polypropylene 0.013 in (0.33 mm) 0.058 in (1.5 mm) Black, White, Red, Green, Brown, Blue, Orange, Yellow, Purple, Gray
Outer Shield
Shield Type Material Coverage Drainwire Type
Tape Bi-Laminate (Alum+Poly) 100% 22 AWG (Solid) TC
Outer Jacket
Material Nom. Thickness Nom. Diameter
PE - Polyethylene 0.04 in (1.0 mm) 0.31 in

Table Notes

HDPE

Overall Cable Diameter (Nominal)

0.31 in

Electrical Characteristics
Electricals
Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Other (Conds + Shield) Max. Current
18.1 Ohm/1000ft 23 pF/ft (75 pF/m) 42 pF/ft (140 pF/m) 2.7 Amps per Conductor at 25ºC
Voltage
Voltage Rating
350 V
Mechanical Characteristics
Temperature
Operating
-40°C To +80°C
Bend Radius
Stationary Min. Installation Min.
3.1 in (79 mm) 3.1 in

Max. Pull Tension

137.8 lbs (62.51 kg)

Bulk Cable Weight

60 lbs/1000ft

Standards and Compliance

European Directive Compliance

EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

APAC Compliance

China RoHS II (GB/T 26572-2011)

History

Update and Revision

Revision Number: 0.394 Revision Date: 05-05-2023

Part Numbers
Item # Color UPC Footnote
9890 0101000 Black 612825260042 C
9890 010500 Black 612825260059 C
