9954

Electronic, 4 C #16 Str TC, PVC-NYL Ins, OA TC Brd, PVC Jkt

...

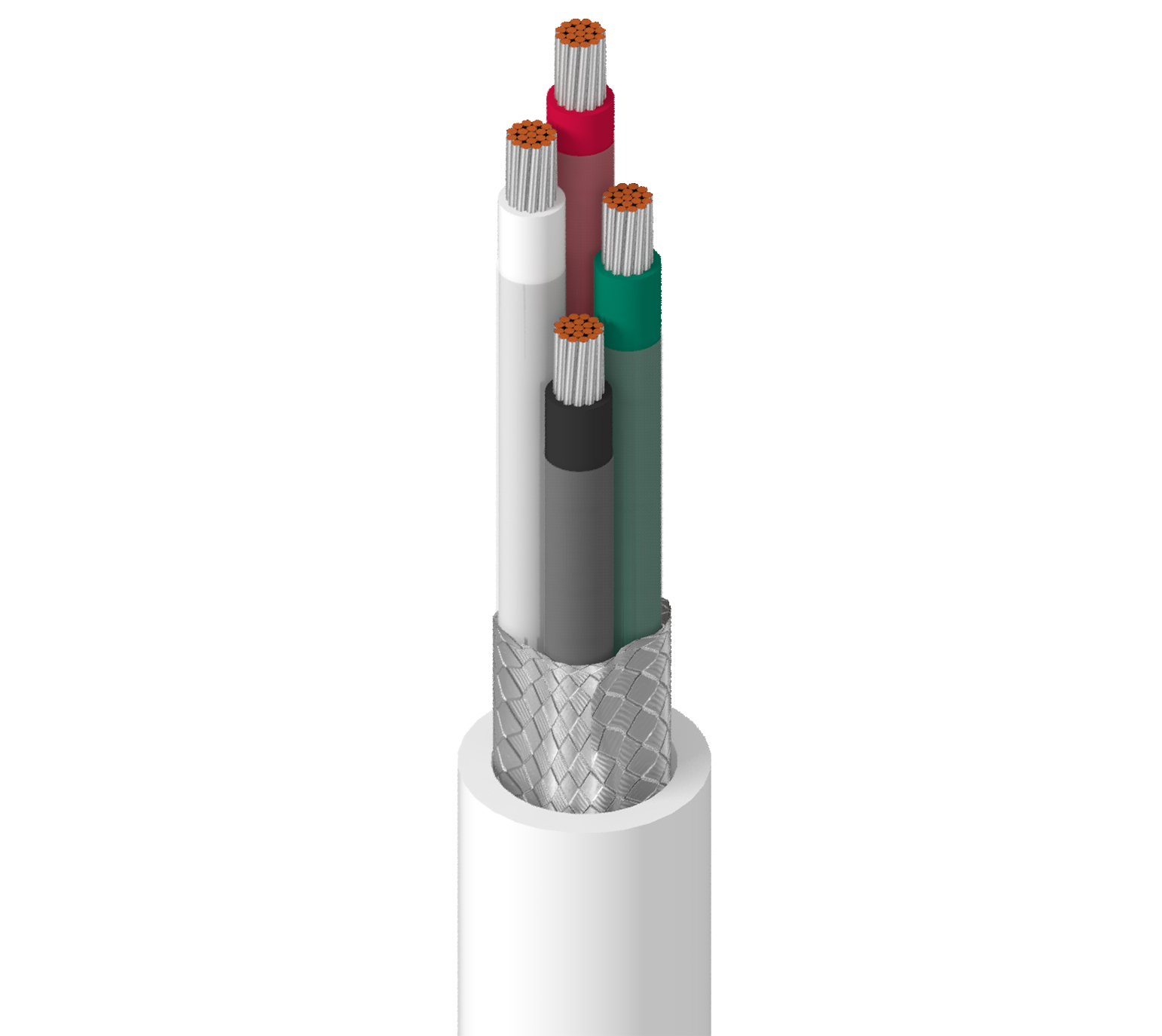

Electronic, 4 Conductor 16AWG (19x29) Tinned Copper, PVC-NYL Insulation, Overall Tinned Copper Braid(90%) Shield, PVC Outer Jacket
Request Sample Get Product Alerts
Specifications
Product Overview

Suitable Applications

MIL-W-16878 (Type B) Spec; up to 600V analog signals ; up to 600V voltage control

Construction Details
Conductor
Element Number of Element Size Stranding Material
Conductor(s) 4 16 AWG 19x29 TC - Tinned Copper
Insulation
Element Material Nom. Thickness Color Code
Conductor(s) PVC/Nylon - Polyvinyl Chloride + Nylon 0.012 in (0.30 mm) White, Black, Red, Green
Outer Shield
Shield Type Material Coverage
Braid Tinned Copper (TC) 90%
Outer Jacket
Material Nom. Thickness Nom. Diameter
PVC - Polyvinyl Chloride 0.027 in (0.69 mm) 0.291 in (7.39 mm)

Overall Cable Diameter (Nominal)

0.291 in (7.39 mm)

Electrical Characteristics
Electricals
Element Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Other (Conds + Shield) Max. Current
Conductor(s) 4.4 Ohm/1000ft (14 Ohm/km) 49 pF/ft (160 pF/m) 94 pF/ft (310 pF/m) 6.5 Amps per Conductor at 25ºC
Voltage
Voltage Rating
600 V
Mechanical Characteristics
Temperature
Operating
-20°C to +105°C
Bend Radius
Stationary Min. Installation Min.
2.9 in (74 mm) 2.9 in (74 mm)

Max. Pull Tension

121.6 lbs (55.16 kg)

Bulk Cable Weight

69 lbs/1000ft (100 kg/km)

Standards and Compliance

Environmental Suitability

Indoor (Not Riser or Plenum), Indoor

Sustainability

CA Prop 65

Flammability / Reaction to Fire

FT1, VW-1

Military Compliance

MIL-W-16878E/17 (insulated conductor)

European Directive Compliance

EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

APAC Compliance

China RoHS II (GB/T 26572-2011)

Other Standard Compliance(s)

NEMA HP3

History

Update and Revision

Revision Number: 0.362 Revision Date: 04-08-2022

Part Numbers
Item # Color UPC
9954 009100 White 612825265160
9954 0091000 White 612825265177
9954 009500 White 612825265184
