9961

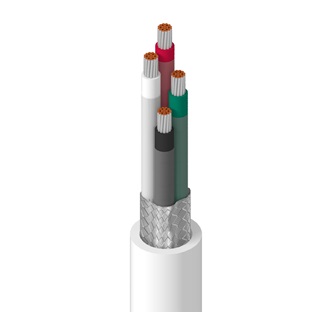

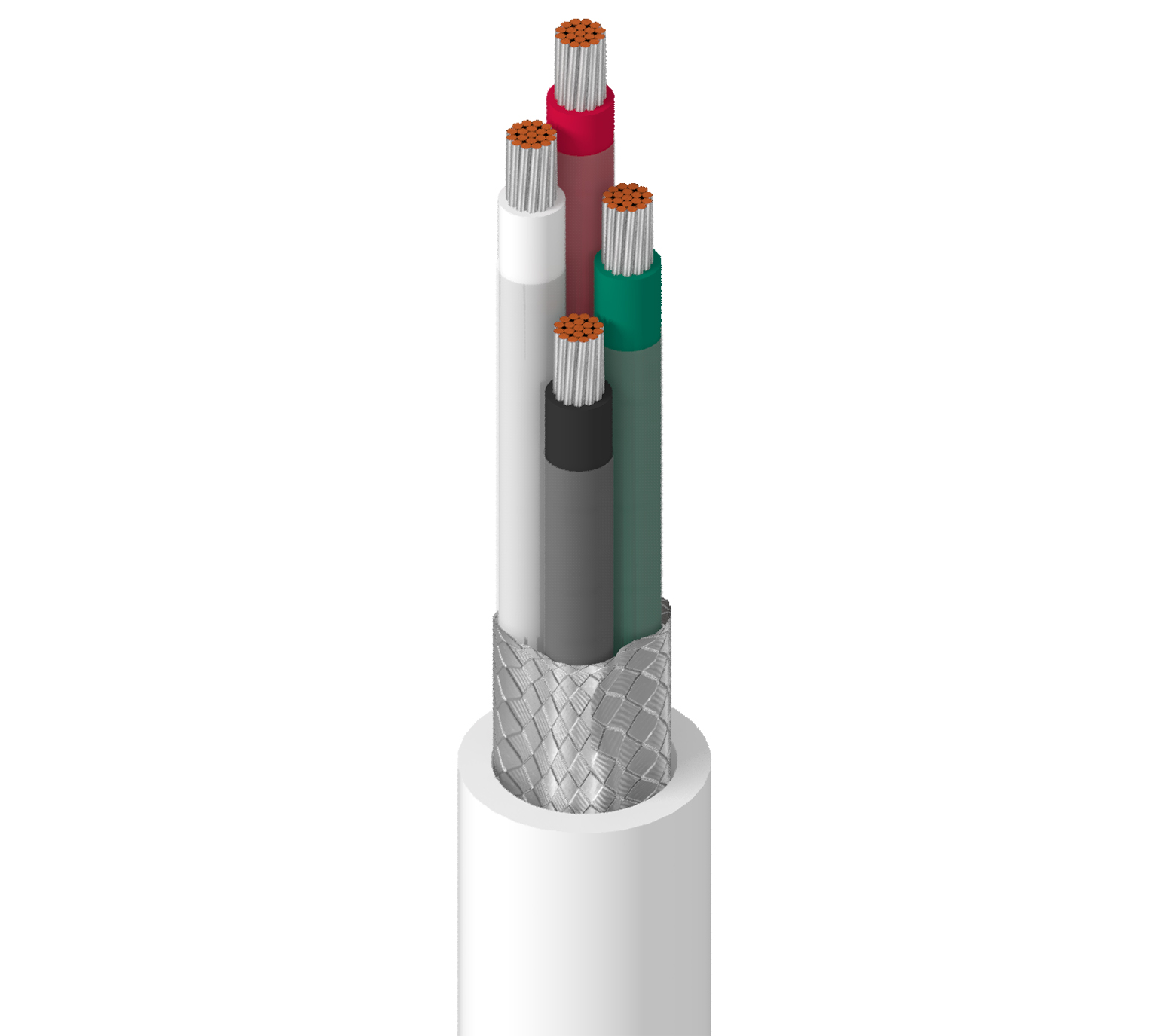

Electronic, 1 C #20 Str TC, PVC-NYL Ins, OA TC Brd, PVC Jkt

...
Electronic, 1 Conductor 20AWG (19x32) Tinned Copper, PVC-NYL Insulation, Overall Tinned Copper Braid(90%) Shield, PVC Outer Jacket
English
Request Quote
Share
Request Sample Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

MIL-W-16878 (Type B) Spec; up to 600V analog signals ; up to 600V voltage control

Construction Details
Conductor
Element No. of Elements Size Stranding Material
Conductor(s) 1 20 AWG 19x32 TC - Tinned Copper
Insulation
Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Conductor(s) PVC - Polyvinyl Chloride 0.0105 in (0.267 mm) 0.064 in (1.6 mm) White
Outer Shield
Shield Type Material Coverage
Braid Tinned Copper (TC) 97%
Outer Jacket
Material Nom. Thickness Nom. Diameter
PVC - Polyvinyl Chloride 0.01 in (0.25 mm) 0.109 in

Overall Cable Diameter (Nominal)

0.109 in.

Electrical Characteristics
Electricals
Nom. Conductor DCR Nom. Capacitance Cond-to-Shield Max. Current
11.2 Ohm/1000ft 103 pF/ft (338 pF/m) 3.8 Amps per Conductor at 25ºC
Voltage
Voltage Rating
600 V
Mechanical Characteristics
Temperature
UL Temperature Operating
105°C -20°C To +105°C
Bend Radius
Stationary Min. Installation Min.
1.09 in (27.7 mm) 1.09 in

Max. Pull Tension

15 lbs (6.8 kg)

Bulk Cable Weight

8 lbs/1000ft

Standards and Compliance

Flammability / Reaction to Fire

VW-1

Military Compliance

MIL-W-16878E/17 (insulated conductor)

European Directive Compliance

EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

APAC Compliance

China RoHS II (GB/T 26572-2011)

History

Update and Revision

Revision Number: 0.389 Revision Date: 05-05-2023

Show All Specifications
Hide Specifications
Part Numbers
Item # Color UPC
9961 0091000 White 612825265191
9961 009500 White 612825265207
