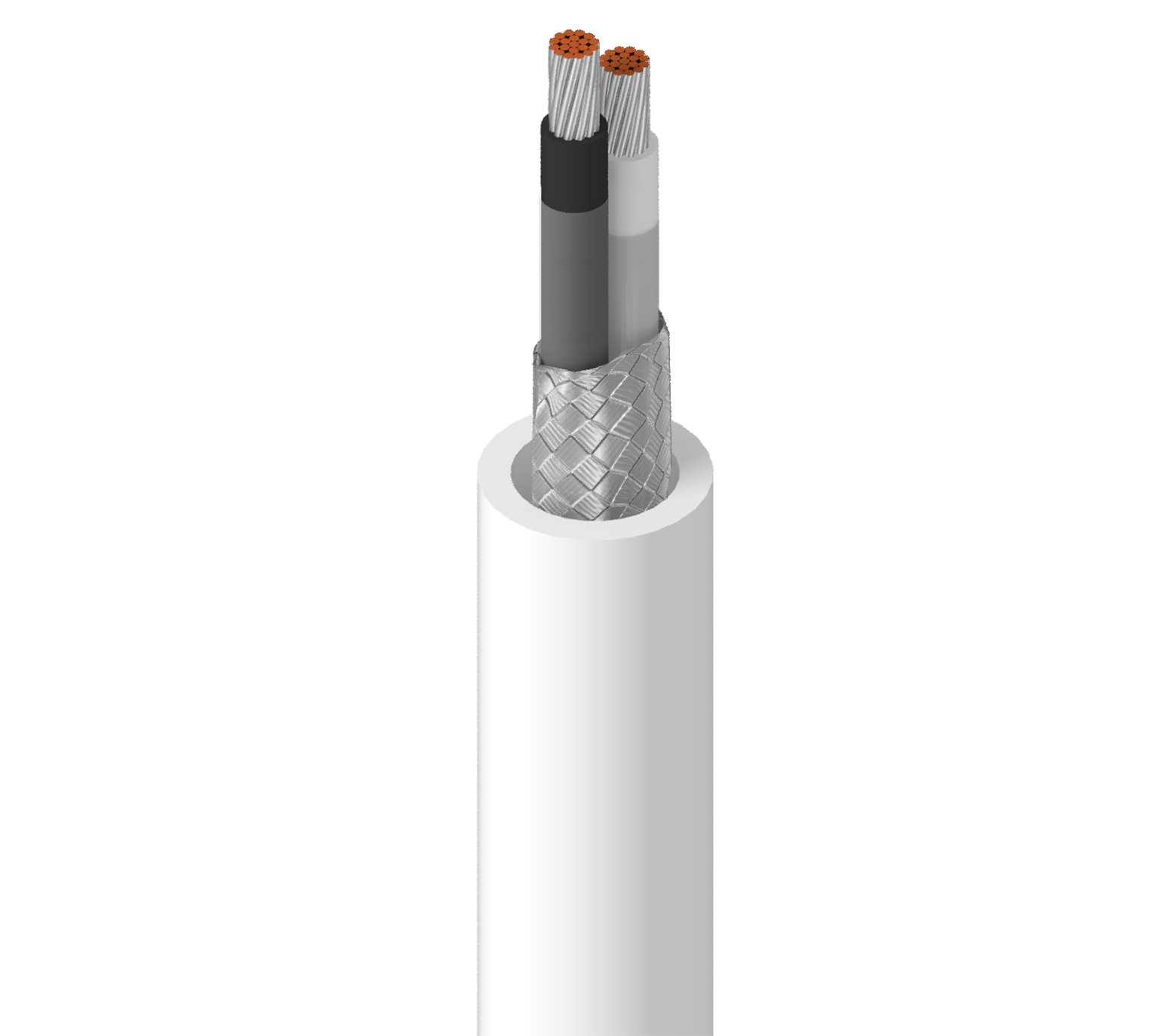

Electronic, 2 C #20 Str TC, PVC-NYL Ins, OA TC Brd, PVC Jkt

Electronic, 2 Conductor 20AWG (19x32) Tinned Copper, PVC-NYL Insulation, Overall Tinned Copper Braid(90%) Shield, PVC Outer Jacket

Request Quote

Request Sample Get Product Alerts

Specifications

Report An Error

Suitable Applications	MIL-W-16878 (Type B) Spec; up to 600V analog signals ; up to 600V voltage control

Element	No. of Elements	Size	Stranding	Material
Conductor(s)	2	20 AWG	19x32	TC - Tinned Copper

Element	Material	Nom. Thickness	Color Code
Conductor(s)	PVC/Nylon - Polyvinyl Chloride + Nylon	0.011 in (0.28 mm)	White, Black

Shield Type	Material	Coverage
Braid	Tinned Copper (TC)	90%

Material	Nom. Thickness	Nom. Diameter
PVC - Polyvinyl Chloride	0.016 in (0.41 mm)	0.192 in (4.88 mm)

Overall Cable Diameter (Nominal)	0.192 in (4.88 mm)

Element	Nom. Conductor DCR	Nom. Capacitance Cond-to-Cond	Nom. Capacitance Cond-to-Other (Conds + Shield)	Max. Current
Conductor(s)	9.1 Ohm/1000ft (30 Ohm/km)	53 pF/ft (170 pF/m)	91 pF/ft (300 pF/m)	3.8 Amps per Conductor at 25ºC

Voltage Rating
600 V

UL Temperature	Operating
105°C	-20°C to +105°C

Stationary Min.	Installation Min.
1.9 in (48 mm)	1.9 in (48 mm)

Max. Pull Tension	30 lbs (14 kg)
Bulk Cable Weight	22 lbs/1000ft (33 kg/km)

Environmental Suitability	Indoor
Sustainability	CA Prop 65
Flammability / Reaction to Fire	VW-1
CPR Compliance	CPR Euroclass: Eca
Military Compliance	MIL-W-16878E/17 (insulated conductor)
European Directive Compliance	EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
UK Regulation Compliance	UKCA Mark
APAC Compliance	China RoHS II (GB/T 26572-2011)

Update and Revision	Revision Number: 0.370 Revision Date: 02-15-2024
