Product Number: 9842PE
RS-485, 2 Pr #24 Str TC, PO Ins, OS+TC Brd, PE Jkt

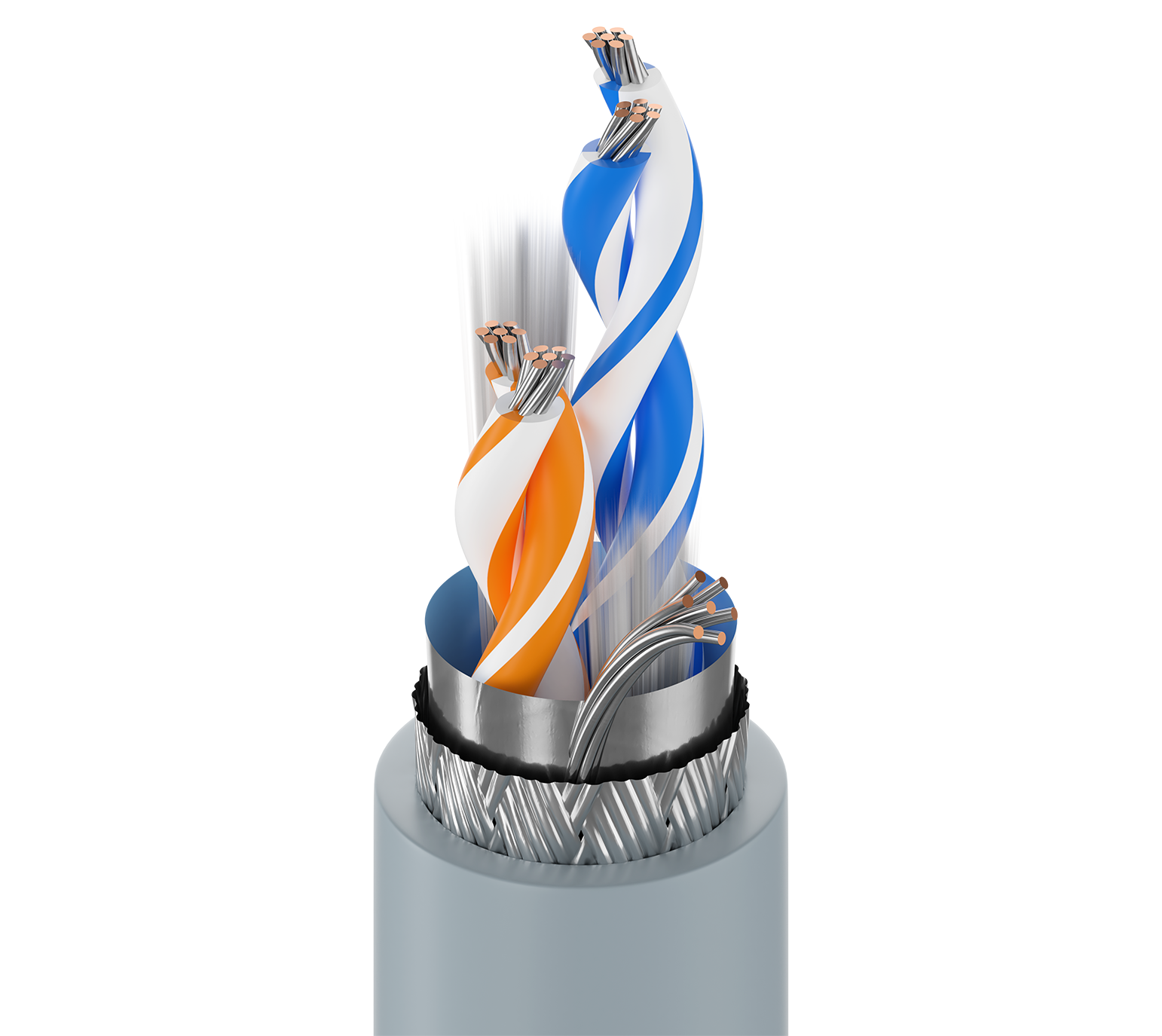

RS-485, 2 Pair 24AWG (7x32) Tinned Copper, PO Insulation, Overall Beldfoil®+Tinned Copper Braid(90%) Shield, PE Outer Jacket
-
Availability:
Global
-
Global inventory:
Capability
Specifications
Product Overview
|
Suitable Applications |
RS-485, POS; Computer communications; Low Voltage Analog Signals (4-20ma, 0-10v, ...); Low Voltage Digital Control (24v, …); Line Level Audio; Panel Wiring; serial communication (RS-485 standard) comprising of PLCs, VFDs, HMIs, motors, RTU, SCADA, etc. within noisy environments over long distance, etc. |
|---|
Construction Details
Conductor
| Element | No. of Elements | Size | Stranding | Material |
|---|---|---|---|---|
| Pair(s) | 2 | 24 AWG | 7x32 | TC - Tinned Copper |
Insulation
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
|---|---|---|---|---|
| Pair(s) | PE - Polyethylene | 0.56 mm (0.022 in) | 1.73 mm (0.0681 in) | White/Blue & Blue/White, White/Orange & Orange/White |
Outer Shield
| Shield Type | Material | Coverage | Drainwire Type |
|---|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | 100% | 24 AWG (7x32) TC |
| Braid | Tinned Copper (TC) | 90% |
Outer Jacket
| Material | Nom. Thickness | Nom. Diameter |
|---|---|---|
| PE - Polyethylene | 0.9 mm (0.035 in) | 8.65 mm (0.341 in) |
|
Overall Cable Diameter (Nominal) |
8.65 mm (0.341 in) |
|---|
Electrical Characteristics
Electricals
| Element | Nom. Conductor DCR | Nom. Capacitance Cond-to-Cond | Nom. Capacitance Cond-to-Other (Conds + Shield) | Nom. Characteristic Impedence | Nom. Velocity of Prop. | Max. Current |
|---|---|---|---|---|---|---|
| Pair(s) | 78.7 Ohm/km (24.0 Ohm/1000ft) | 42 pF/m (13 pF/ft) | 75.5 pF/m | 120 Ohm | 66% | 2.1 Amps per Conductor |
|
Nom. Outer Shield DCR |
7.2 Ohm/km (2.2 Ohm/1000ft) |
|---|
High Frequency (Nominal/Typical)
| Element | Frequency [MHz] | Nom. Insertion Loss (Attenuation) |
|---|---|---|
| Pair(s) | 1 | 1.97 dB/100m (0.600 dB/100ft) |
Voltage
| Voltage Rating |
|---|
| 300 V |
Mechanical Characteristics
Temperature
| Operating | Installation | Storage |
|---|---|---|
| -45°C To +70°C | -15°C To +70°C | -45°C To +70°C |
Bend Radius
| Stationary Min. | Installation Min. |
|---|---|
| 43 mm (1.7 in) | 86 mm (3.4 in) |
|
Max. Pull Tension |
395 N (88.8 lbf) |
|---|
Standards and Compliance
|
Environmental Suitability |
Water Exposure/Below-Grade Conduit, Indoor, Outdoor, Non-Halogenated, Sunlight Resistance |
|---|---|
|
European Halogen Free Standards |
IEC 62821-1 Halogen Free Compliance = Yes, IEC 60754-1 - Halogen Amount = Zero, IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity = 10 µS/mm, IEC 60754-2 - Halogen Acid Gas Amount - Min. pH = 4.3 |
|
European Directive Compliance |
EU CE Mark |
|
UK Regulation Compliance |
UKCA Mark |
|
Other Standard Compliance(s) |
DMX-512 |
Product Notes
|
Notes |
This is a preliminary Technical Design Specification (TDS). The minimum business quantity to offer is 3km for the first order. This product will have Black as standard color and 305mt as standard put-ups. Additional options for colors and put-ups are available on special request. The estimated production lead time for the first order will be similar to the production lead time of 9842NH. Please liaise with your Belden representative for confirmation. |
|---|
History
|
Update and Revision |
Revision Number: 0.10 Revision Date: 04-07-2025 |
|---|
Belden.GenericSpecificationTitle
|
Update and Revision |
Revision Number: 0.10 Revision Date: 04-07-2025 |
|---|
