Product Number: 1245A2

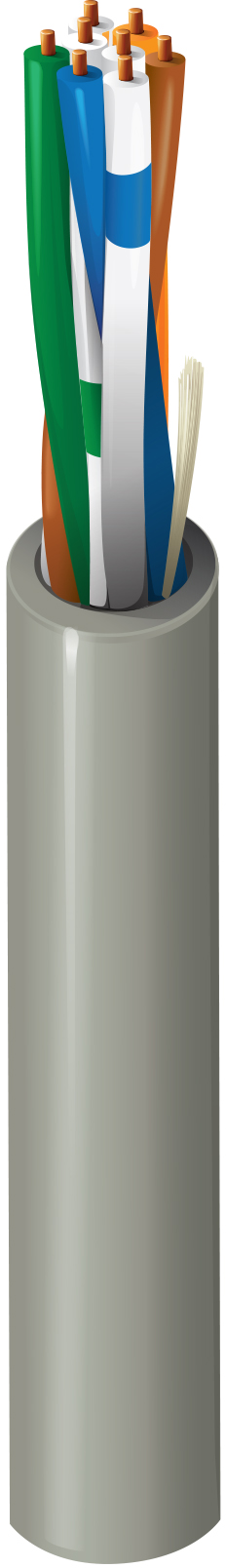

CAT3 Horizontal, 4pr, UTP, LS-PVC Jkt, CMP
CAT3, 4-Pair, U/UTP-unshielded, Plenum-CMP, Premise Horizontal cable, 24 AWG solid bare copper conductors, LS-PVC insulation, LS-PVC jacket
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
802.3 10BaseT, 100BaseT4 |
|---|
Physical Characteristics (Overall)
Conductor
| AWG | Stranding | Material | No. of Pairs |
|---|---|---|---|
| 24 | Solid | BC - Bare Copper | 4 |
|
Conductor Count |
8 |
|---|---|
|
Total Number of Pairs |
4 |
Insulation
| Material |
|---|
| PVC - Polyvinyl Chloride |
|
Bonded-Pair |
N/A |
|---|
Color Chart
| Number | Color |
|---|---|
| 1 | White/Blue Stripe & Blue |
| 2 | White/Orange Stripe & Orange |
| 3 | White/Green Stripe & Green |
| 4 | White/Brown Stripe & Brown |
Outer Jacket
| Material | Material Trade Name | Nominal Diameter | Ripcord |
|---|---|---|---|
| PVC - Polyvinyl Chloride | Flamarrest® | 0.157 in | No |
Electrical Characteristics
Conductor DCR
| Max. Conductor DCR | Max. DCR Unbalance |
|---|---|
| 93.8 Ohm/km | 5 % |
Capacitance
| Max. Capacitance Unbalance | Nom.Mutual Capacitance |
|---|---|
| 330 pF/100m | 19 pF/ft |
Delay
| Frequency [MHz] | Max. Delay | Max. Delay Skew | Nominal Delay | Nominal Velocity of Propagation (VP) [%] |
|---|---|---|---|---|
| 100 MHz | 537.6 ns/100m | 45 ns/100m | 1.5 ns/ft | 61% |
High Frequency
| Frequency [MHz] | Max. Insertion Loss (Attenuation) | Min. NEXT [dB] | Min. SRL (Structural Return Loss) | Max./Min. Fitted Impedance |
|---|---|---|---|---|
| 1 MHz | 2.6 dB/100m | 41.0 dB | 12.0 dB | 100 ± 15 Ohm |
| 4 MHz | 5.6 dB/100m | 32.0 dB | 12.0 dB | 100 ± 15 Ohm |
| 8 MHz | 8.5 dB/100m | 27.0 dB | 12.0 dB | 100 ± 15 Ohm |
| 10 MHz | 9.7 dB/100m | 26.0 dB | 12.0 dB | 100 ± 15 Ohm |
| 16 MHz | 13.1 dB/100m | 23.0 dB | 10.0 dB | 100 ± 15 Ohm |
Voltage
| UL Voltage Rating |
|---|
| 300 V RMS |
Temperature Range
|
Installation Temperature Range |
0°C To +50°C |
|---|---|
|
UL Temp Rating |
60°C |
|
Storage Temperature Range |
-20°C To +60°C |
|
Operating Temperature Range |
-20°C To +60°C |
Mechanical Characteristics
|
Bulk Cable Weight |
18 lbs/1000ft |
|---|---|
|
Max. Pull Tension |
25 lbs |
|
Min. Bend Radius During Installation |
4.75 in |
|
Min. Bend Radius/Minor Axis |
2.25 in |
Standards
|
NEC/(UL) Compliance |
CMP |
|---|---|
|
CEC/C(UL) Compliance |
CMP |
|
Data Category |
Category 3 |
|
ANSI Compliance |
S-90-661-2012 Category 3, ANSI/NEMA WC-63.1 Category 3 |
|
TIA/EIA Compliance |
ANSI/TIA-568-C.2 Category 3 |
|
Third Party Performance Verification |
Category 3 |
Applicable Environmental and Other Programs
|
Environmental Space |
Plenum |
|---|---|
|
EU Directive 2000/53/EC (ELV) |
Yes |
|
EU Directive 2002/96/EC (WEEE) |
Yes |
|
EU Directive 2003/11/EC (BFR) |
Yes |
|
EU Directive 2003/96/EC (BFR) |
Yes |
|
EU Directive 2011/65/EU (RoHS 2) |
Yes |
|
EU Directive 2012/19/EU (WEEE) |
Yes |
|
EU Directive 2015/863/EU (RoHS 2 amendment) |
Yes |
|
EU Directive Compliance |
Yes |
|
EU CE Mark |
Yes |
|
EU REACH SVHC Compliance (yyyy-mm-dd) |
2017-07-10 |
|
MII Order #39 (China RoHS) |
Yes |
Suitability
|
Suitability - Aerial |
No |
|---|---|
|
Suitability - Burial |
No |
|
Suitability - Hazardous Locations |
No |
|
Suitability - Indoor |
Yes |
|
Suitability - Non-Halogenated |
No |
|
Suitability - Oil Resistance |
No |
|
Suitability - Outdoor |
No |
|
Suitability - Sunlight Resistance |
No |
Flammability, LS0H, Toxicity Testing
|
UL Flammability |
NFPA 262 Plenum (UL 910) |
|---|---|
|
UL voltage rating |
300 V RMS |
Plenum/Non-Plenum
|
Plenum (Y/N) |
Yes |
|---|
Related Part Numbers
|
Non-Plenum Number |
1229A1 |
|---|
Product Notes
|
Notes |
Electrical values are expected performance based on cable testing and representative performance within a typical Belden system. Print Includes Descending Footage Markings. |
|---|
History
|
Update and Revision |
Revision Number: 0.437 Revision Date: 02-03-2025 |
|---|
Belden.GenericSpecificationTitle
|
Update and Revision |
Revision Number: 0.437 Revision Date: 02-03-2025 |
|---|
Part Numbers
| Item # | Color | Put-Up Type | Length | UPC |
|---|---|---|---|---|
| 1245A2 009U1000 | White | UnReel | 1,000 ft | 612825109761 |
