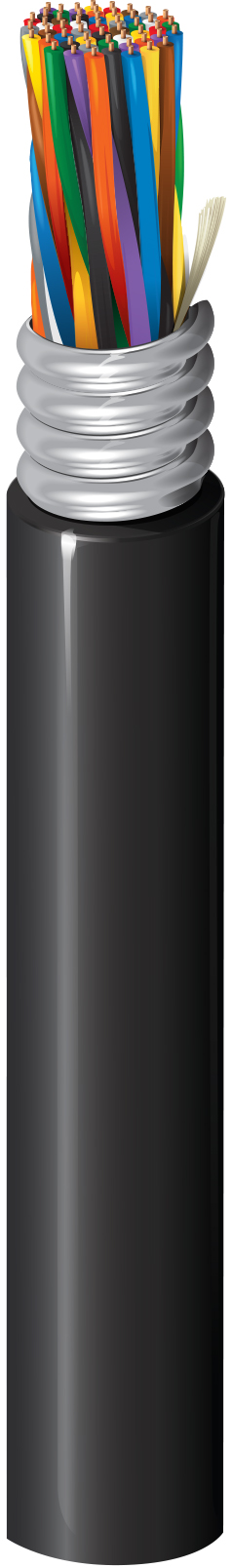

Category 5e Indoor/Outdoor OSP/CM-LS LSZH 25pr Corrugated Shield
|
Suitable Applications |
OSP-Outdoor, Indoor/Outdoor, Premise Backbone Cable, Gigabit Ethernet, 100BaseTX, 100BaseVG ANYLAN, 155ATM, 622ATM, NTSC/PAL Component or Composite Video, AES/EBU Digital Audio, AES51, RS-422, Noisy Environments |
|---|
| AWG | Stranding | Material | No. of Pairs |
|---|---|---|---|
| 24 | Solid | BC - Bare Copper | 25 |
|
Conductor Count |
50 |
|---|---|
|
Total Number of Pairs |
25 |
| Material |
|---|
| PO - Polyolefin |
|
Bonded-Pair |
N/A |
|---|
| Number | Color |
|---|---|
| 1 | Black & Blue |
| 2 | Black & Orange |
| 3 | Black & Green |
| 4 | Black & Brown |
| 5 | Black & Gray |
| 6 | Yellow & Blue |
| 7 | Yellow & Orange |
| 8 | Yellow & Green |
| 9 | Yellow & Brown |
| 10 | Yellow & Gray |
| 11 | Purple & Blue |
| 12 | Purple & Orange |
| 13 | Purple & Green |
| 14 | Purple & Brown |
| 15 | Purple & Gray |
| 16 | White & Orange |
| 17 | White & Green |
| 18 | White & Brown |
| 19 | White & Gray |
| 20 | Red & Blue |
| 21 | Red & Orange |
| 22 | Red & Green |
| 23 | Red & Brown |
| 24 | Red & Gray |
| 25 | White & Blue |
| Material | Nominal Diameter | Ripcord |
|---|---|---|
| PE - Polyethylene | 0.51 in | Yes |
|
Water Penetration |
GR 421‐CORE para. 4.3.5.1, ANSI/ICEA S‐107‐704 para. 8.2.1, ANSI/ICEA S-99-689 |
|---|
| Material |
|---|
| Aluminum |
| Material | Nominal Diameter | Ripcord |
|---|---|---|
| LSZH - Low Smoke Zero Halogen (Flame Retardant) | 0.730 in | Yes |
| Type of Armor | Material | Thickness of Armoring Tape |
|---|---|---|
| Corrugated | Aluminum | .008 in |
| Max. Conductor DCR | Max. DCR Unbalance |
|---|---|
| 93.8 Ohm/km | 5 % |
| Max. Capacitance Unbalance | Nom.Mutual Capacitance |
|---|---|
| 330 pF/100m | 14 pF/ft |
| Frequency [MHz] | Max. Delay | Max. Delay Skew |
|---|---|---|
| 100 MHz | 537.6 ns/100m | 45 ns/100m |
| Frequency [MHz] | Max. Insertion Loss (Attenuation) | Min. PSNEXT [dB] | Min. RL (Return Loss) [dB] | Max./Min. Fitted Impedance |
|---|---|---|---|---|
| 1 MHz | 2.0 dB/100m | 62.3 dB | 20.0 dB | 100 ± 15% |
| 4 MHz | 4.1 dB/100m | 53.3 dB | 23.0 dB | 100 ± 15% |
| 8 MHz | 5.8 dB/100m | 48.8 dB | 24.5 dB | 100 ± 15% |
| 10 MHz | 6.5 dB/100m | 47.3 dB | 25.0 dB | 100 ± 15% |
| 16 MHz | 8.2 dB/100m | 44.3 dB | 25.0 dB | 100 ± 15% |
| 20 MHz | 9.3 dB/100m | 42.8 dB | 25.0 dB | 100 ± 15% |
| 25 MHz | 10.4 dB/100m | 41.3 dB | 24.3 dB | 100 ± 15% |
| 31.25 MHz | 11.7 dB/100m | 39.9 dB | 23.6 dB | 100 ± 15% |
| 62.5 MHz | 17.0 dB/100m | 35.4 dB | 21.5 dB | 100 ± 15% |
| 100 MHz | 22.0 dB/100m | 32.3 dB | 20.1 dB | 100 ± 15% |
| UL Voltage Rating |
|---|
| 300 V RMS |
|
Installation Temp Range |
-20°C To +75°C |
|---|---|
|
UL Temp Rating |
75°C |
|
Storage Temp Range |
-40°C To +75°C |
|
Operating Temp Range |
-40°C To +75°C |
|
Cold Bend Test |
-20°C Compliance per UL 1581 |
|---|---|
|
Bulk Cable Weight |
240 lbs/1000ft |
|
Max. Pull Tension |
150 lbs |
|
Min Bend Radius During Installation |
14.75 in |
|
Min Bend Radius/Minor Axis |
7.5 in |
|
NEC/(UL) Compliance |
CM-LS |
|---|---|
|
CEC/C(UL) Compliance |
CM-LS |
|
IEC Compliance |
11801 ed 2.2 (2011) Class D |
|
Data Category |
Category 5e |
|
ANSI Compliance |
S-90-661-2012 Category 5e, ANSI/NEMA WC-63.1 Category 5e |
|
TIA/EIA Compliance |
ANSI/TIA-568-C.2 Category 5e |
|
IEEE Compliance |
IEEE 802.3bt Type 1, Type 2, Type 3 |
|
Other Compliance |
Outdoor Use ANSI/ICEA S‐56‐434, Broadband Outdoor Use ANSI/ICEA S‐99‐689, Indoor/Outdoor Use ANSI/ICEA S‐100‐685 |
|
Environmental Space |
Indoor/Outdoor |
|---|---|
|
EU Directive 2000/53/EC (ELV) |
Yes |
|
EU Directive 2002/96/EC (WEEE) |
Yes |
|
EU Directive 2003/11/EC (BFR) |
Yes |
|
EU Directive 2003/96/EC (BFR) |
Yes |
|
EU Directive 2011/65/EU (ROHS II) |
Yes |
|
EU Directive 2012/19/EU (WEEE) |
Yes |
|
EU Directive 2015/863/EU |
Yes |
|
EU Directive Compliance |
Yes |
|
EU CE Mark |
Yes |
|
EU REACH SVHC Compliance (yyyy-mm-dd) |
2017-07-10 |
|
EU RoHS Compliance Date (yyyy-mm-dd) |
2015-10-27 |
|
MII Order #39 (China RoHS) |
Yes |
|
Suitability - Aerial |
Yes - When supported by messenger wire |
|---|---|
|
Suitability - Burial |
Yes - Engineered burial only |
|
Suitability - Hazardous Locations |
No |
|
Suitability - Indoor |
Yes |
|
Suitability - Non-Halogenated |
No |
|
Suitability - Oil Resistance |
No |
|
Suitability - Outdoor |
Yes |
|
Suitability - Sunlight Resistance |
Yes |
|
UL Flammability |
UL 1685 (UL Loading-Limited Smoke) |
|---|---|
|
UL voltage rating |
300 V RMS |
|
Plenum (Y/N) |
No |
|---|
|
Notes |
Electrical values are expected performance based on cable testing and representative performance within a typical Belden system. Print Includes Descending Footage Markings. Not Suitable for Direct Burial. |
|---|
|
Update and Revision |
Revision Number: 0.232 Revision Date: 02-16-2021 |
|---|
| Item # | Color | UPC |
|---|---|---|
| 2139A 0101000 | Black | 612825377870 |
