Product Number: 70006NH
DataTuff® 5E, 1Q #22 Sol BC, PO ins, F/B, LSNH Jkt, PROFINET Type A, AWG 21286

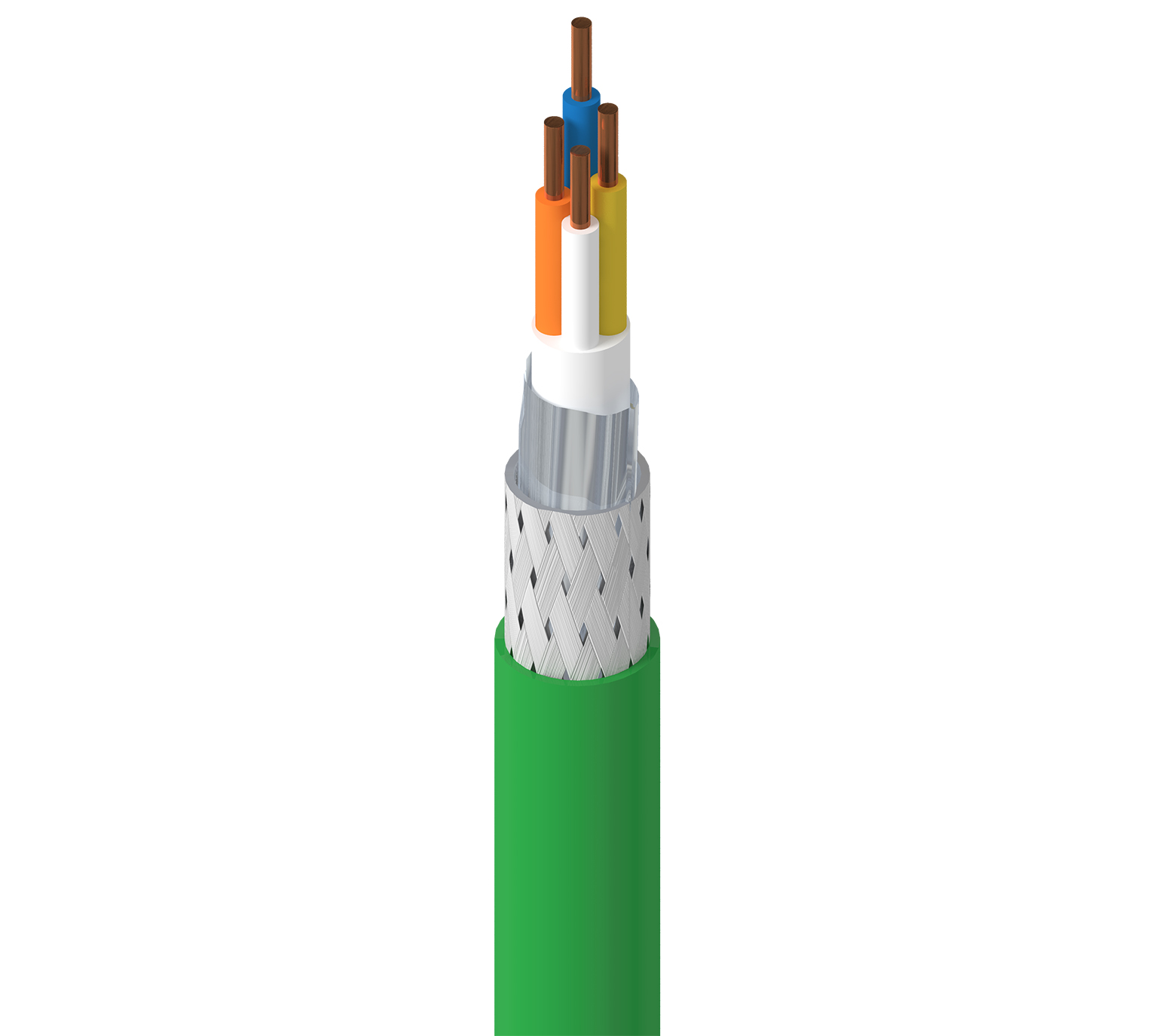

DataTuff® 5E, 1 Quad AWG 22 Bare Copper - Solid, Polyethylene insulation, SF/UTP - Overall Braid + Foil shielding, LSZH / FRNC jacket , PROFINET Type A, AWG 21286
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
PROFINET Cat5e, harsh environment, IIoT, factory or process automation, IP cameras and devices, data communication, etc. |
|---|
Construction Details
Conductor
| Size | Stranding | Material | No. of Pairs | No. of Elements |
|---|---|---|---|---|
| 22 AWG | Solid | BC - Bare Copper | 2 | 4 |
Insulation
| Material | Nom. Insulation Diameter | Color Code |
|---|---|---|
| PE - Polyethylene | 1.5 mm (0.059 in) | White & Blue & Yellow & Orange |
| 1 Quad |
Cable Core
| Description |
|---|
| 1 quad with center filler |
Inner Jacket
| Material | Nom. Diameter |
|---|---|
| LSZH - Low Smoke Zero Halogen (Flame Retardant) | 3.9 mm (0.15 in) |
|
Table Notes |
Bedding |
|---|
Outer Shield
| Shield Type | Material | Coverage |
|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | |
| Braid | Tinned Copper (TC) | 85% |
Outer Jacket
| Material | Nom. Diameter |
|---|---|
| LSZH - Low Smoke Zero Halogen (Flame Retardant) | 6.5 mm (0.26 in) |
|
Overall Cable Diameter (Nominal) |
6.5 mm (0.26 in) |
|---|
Electrical Characteristics
Electricals
| Max. Conductor DCR | Nom. Characteristic Impedance |
|---|---|
| 57.1 Ohm/km | 100 Ohm |
Delay
| Max. Delay | Nom. Velocity of Prop. |
|---|---|
| 530 ns/100m | 68% |
High Frequency
| Frequency [MHz] | Max. Insertion Loss (Attenuation) | Min. NEXT [dB] | Min. ACRF (ELFEXT) [dB] | Min. SRL (Structural Return Loss) [dB] |
|---|---|---|---|---|
| 1 | 2.1 dB/100m | 65.3 | 64 | |
| 4 | 4.1 dB/100m | 56.3 | 52 | 23 |
| 10 | 6.5 dB/100m | 50.3 | 44 | 25 |
| 16 | 8.3 dB/100m | 47.2 | 40 | 25 |
| 31.25 | 11.7 dB/100m | 42.9 | 34 | 23.6 |
| 62.5 | 17 dB/100m | 38.4 | 28 | 21.5 |
| 100 | 22 dB/100m | 35.3 | 24 | 20.1 |
|
Table Notes |
Reference standard: ISO/IEC 11801 ed 2.0, Cat 5e |
|---|
Transfer Impedance
| Frequency | Max. Transfer Impedance |
|---|---|
| 10 Mhz | Max. 10 mOhm/m |
Voltage
| Voltage Rating |
|---|
| 300 V |
Mechanical Characteristics
Temperature
| Operating | Installation | Storage |
|---|---|---|
| -40°C to +70°C | -5°C To +50°C | -40°C to +70°C |
Standards and Compliance
|
Environmental Suitability |
Indoor - Euroclass Eca, Sunlight Resistance, Oil Resistance |
|---|---|
|
Flammability / Reaction to Fire |
IEC 60332-1-2 |
|
CPR Compliance |
CPR Euroclass: Eca |
|
Data Category |
Category 5e |
|
ISO/IEC Compliance |
ISO/IEC 11801-1 |
|
European Halogen Free Standards |
IEC 60754-1 - Halogen Amount = Zero |
|
European Directive Compliance |
EU CE Mark |
|
UK Regulation Compliance |
UKCA Mark |
History
|
Update and Revision |
Revision Number: 0.265 Revision Date: 04-29-2024 |
|---|
Information
|
Update and Revision |
Revision Number: 0.265 Revision Date: 04-29-2024 |
|---|
Part Numbers
| Item # | Color | Putup Type | Length | EAN |
|---|---|---|---|---|
| 70006NH.01B100 | Green | Flat Box | 100 m | 8719605009265 |
| 70006NH.01305 | Green | Reel | 305 m | 8719605009241 |
| 70006NH.01500 | Green | Reel | 500 m | 8719605009258 |
| 70006NH.011000 | Green | Reel | 1,000 m | 8719605009234 |
