7938A

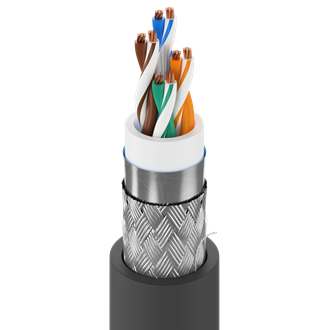

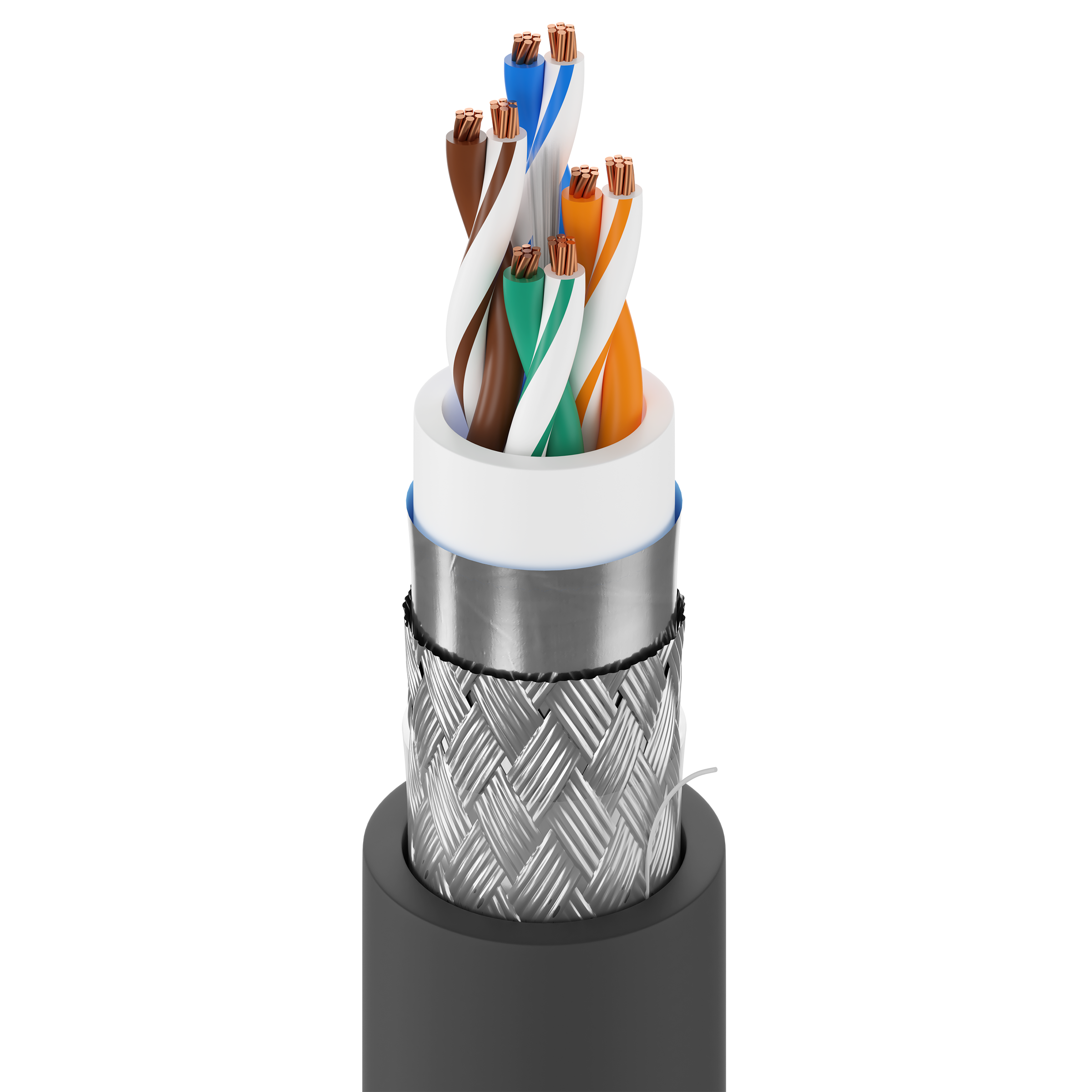

DataTuff® Cat 5e, 4 Bonded-Pr #24 Str Alloy, PO Ins, OS+TC Brd, TPE Jkt, TPE Jkt, High Flex AWM 20606

...
Industrial Ethernet Cat 5e, 4 Bonded-Pair, 24AWG (Stranded) Alloy, PO Insulation, Overall Beldfoil®+Tinned Copper Braid(85%) Shield, TPE Inner Jacket, TPE Outer Jacket, High Flex 10M cycles at 10xOD AWM 20606
Request Sample Get Product Alerts
Specifications
Product Overview

Suitable Applications

robotic, harsh environment, IIoT, factory or process automation, IP cameras and devices, data communication, etc.

Patent

This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/resources/patents.

Construction Details
Conductor
AWG Stranding Material Number of Pairs
24 7x32 BCA - Bare Copper Alloy 4
Insulation
Material Color Code
PO - Polyolefin White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown

Bonded-Pair

Yes

Inner Jacket
Separator Material Nom. Diameter Ripcord
Central Filler TPE - Thermoplastic Elastomer 0.254 in No
Outer Shield
Type Material Coverage
Tape Bi-Laminate (Alum+Poly) 100%
Braid Tinned Copper (TC) 85%
Outer Jacket
Separator Material Material Nom. Diameter Ripcord
Polyester Tape TPE - Thermoplastic Elastomer 0.342 in Yes
Electrical Characteristics
Electricals
Max. Conductor DCR Max. DCR Unbalance Max. Capacitance Unbalance Nom. Mutual Capacitance
93.8 Ohm/km 3% 330 pF/ft 15 pF/ft
Delay
Max. Delay Max. Delay Skew Nom. Velocity of Propagation (VP) [%] Typical Delay Skew
510 ns/100m 45 ns/100m 69% 12 ns/ft
High Frequency
Frequency [MHz] Max. Insertion Loss (Attenuation) Min. NEXT [dB] Min. PSNEXT [dB] Min. ACR [dB] Min. PSACR [dB] Min. ACRF (ELFEXT) [dB] Min. PSACRF (PSELFEXT) [dB] Min. RL (Return Loss) [dB] Min. SRL (Structural Return Loss) Max./Min. Input Impedance (unFitted) Max./Min. Fitted Impedance
1 MHz 2.5 dB/100m 65.3 dB 62.3 dB 62.8 dB 59.8 dB 63.8 dB 60.8 dB 20 dB 23 dB 100 ± 15 Ohm 100 ± 15 Ohm
4 MHz 4.9 dB/100m 56.3 dB 53.3 dB 51.4 dB 48.4 dB 51.7 dB 48.7 dB 23 dB 23 dB 100 ± 15 Ohm 100 ± 15 Ohm
8 MHz 6.9 dB/100m 51.8 dB 48.8 dB 44.9 dB 41.9 dB 45.7 dB 42.7 dB 24.5 dB 24.5 dB 100 ± 15 Ohm 100 ± 15 Ohm
10 MHz 7.8 dB/100m 50.3 dB 47.3 dB 42.5 dB 39.5 dB 43.8 dB 40.8 dB 25 dB 25 dB 100 ± 15 Ohm 100 ± 15 Ohm
16 MHz 9.9 dB/100m 47.3 dB 44.3 dB 37.4 dB 34.4 dB 39.7 dB 36.7 dB 25 dB 25 dB 100 ± 15 Ohm 100 ± 15 Ohm
20 MHz 11.1 dB/100m 45.8 dB 42.8 dB 34.7 dB 31.7 dB 37.7 dB 34.7 dB 25 dB 25 dB 100 ± 15 Ohm 100 ± 15 Ohm
25 MHz 12.5 dB/100m 44.3 dB 41.3 dB 21.8 dB 28.8 dB 35.8 dB 32.8 dB 24.3 dB 24.3 dB 100 ± 15 Ohm 100 ± 15 Ohm
31.25 MHz 14.1 dB/100m 42.9 dB 39.9 dB 28.8 dB 25.8 dB 33.9 dB 30.9 dB 23.6 dB 23.6 dB 100 ± 15 Ohm 100 ± 15 Ohm
62.5 MHz 20.4 dB/100m 38.4 dB 35.4 dB 18 dB 15 dB 27.8 dB 24.8 dB 21.5 dB 21.5 dB 100 ± 15 Ohm 100 ± 15 Ohm
100 MHz 26.4 dB/100m 35.3 dB 32.3 dB 8.9 dB 5.9 dB 23.8 dB 20.8 dB 20.1 dB 20.1 dB 100 ± 15 Ohm 100 ± 15 Ohm
Voltage
UL Voltage Rating
300 V
Mechanical Characteristics
Temperature
UL Rating Operating Installation Storage
60°C -40°C To +80°C -25°C To +75°C -40°C To +80°C

Max. Pull Tension

40 lbs

Bulk Cable Weight

60 lbs/1000ft

Standards and Compliance

Environmental Suitability

Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance, Oil Resistance

Flammability / Fire Resistance

UL 1581 (Vertical Tray), (VW-1), FT1

Data Category

Category 5e

CPR Euroclass

Eca

European Directive Compliance

EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16

APAC Compliance

China RoHS II (GB/T 26572-2011)

Product Notes

Notes

Operating temperatures are subject to length de-rating. Cable passes -40C Cold Bend per UL 1581. AWM 20626 80C 300V. *Special RJ45 plugs required. See WWW. BELDEN.COM - Tools - Connector Cross Reference.

History

Update and Revision

Revision Number: 0.402 Revision Date: 09-17-2021

Part Numbers
Item # Color Putup Type Length UPC
7938A B59500 Black, Matte Reel 500 ft 612825191735
7938A B591000 Matte Black 612825406204
