Product Number: 50106UAL

Paired - Category 6 U/UTP Unbonded – Halogen Free Cable

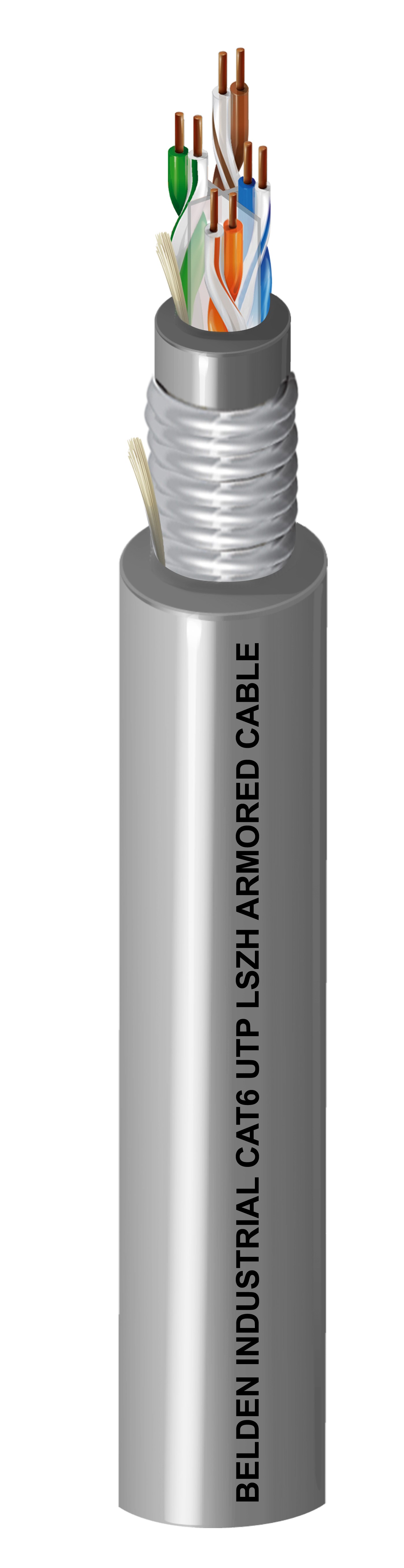

23 AWG solid bare copper conductors, non-plenum, Polyolefin insulation, twisted pairs, central spline, LSZH inner jacket with rip cord, Armored, LSZH outer jacket with Ripcord.

  • Availability:
    Global
  • Status:
    Active
50106UAL
5 of 5

Specifications

Expand All

Suitable Applications

Premise Horizontal Cable, Gigabit Ethernet, 100BaseTX, 100BaseVG ANYLAN, 155ATM, 622ATM, NTSC/PAL Component or Composite Video, AES/EBU, Digital Video, RS-422, 250MHz Category 6

Conductor

Size Stranding Material No. of Pairs
23 AWG Solid BC - Bare Copper 4

Insulation

Material Color Code
PO - Polyolefin Blue & White with Blue Markings, Orange & White with Orange Markings, Green & White with Green Markings, Brown & White with Brown Markings

Cable Core

Description
Overall Cabling Fillers

Inner Jacket

Material Nom. Diameter Ripcord
LSZH - Low Smoke Zero Halogen (Flame Retardant) 6.2 mm (0.24 in) Yes

Armor

Armor Type & Material Coverage
CAT - Corrugated Aluminum Tape 100%

Outer Jacket

Material Nom. Diameter Ripcord
LSZH - Low Smoke Zero Halogen (Flame Retardant) 9.5 mm (0.37 in) Yes

Electricals

Max. Conductor DCR Max. Mutual Capacitance Max. Capacitance Unbalance Nom. Characteristic Impedance
93.8 Ohm/km (28.6 Ohm/1000ft) 56 pF/m (17 pF/ft) 330 pF/100m 100 Ohm

Delay

Max. Delay Max. Delay Skew Nom. Velocity of Prop.
538 ns/100m 45 ns/100m 70%

High Frequency

Frequency [MHz] Max. Insertion Loss (Attenuation) [dB/100m] Min. NEXT [dB] Min. PSNEXT [dB] Min. ACRF (ELFEXT) [dB] Min. PSACRF (PSELFEXT) [dB] Min. RL (Return Loss) [dB]
1 2 74.3 72.3 67.8 64.8 20
4 3.8 65.3 63.3 55.8 52.8 23
8 5.3 60.8 58.8 49.7 46.7 24.5
10 6 59.3 57.3 47.8 44.8 25
16 7.6 56.2 54.2 43.7 40.7 25
20 8.5 54.8 52.8 41.8 38.8 25
25 9.5 53.3 51.3 39.8 36.8 24.3
31.25 10.7 51.9 49.9 37.9 34.9 23.6
62.5 15.4 47.4 45.4 31.9 28.9 21.5
100 19.8 44.3 42.3 27.8 24.8 20.1
155 25.2 41.4 39.4 24 21 18.8
200 29 39.8 37.8 21.8 18.8 18
250 32.8 38.3 36.3 19.8 16.8 17.3

Voltage

UL Voltage Rating
72 V DC

Temperature

Operating
-20°C To +75°C

Bend Radius

Installation Min.
72 mm (2.8 in)

Max. Pull Tension

110 N (25 lbf)

Bulk Cable Weight

80 kg/km (54 lbs/1000ft)

Environmental Suitability

Indoor, Outdoor, Sunlight Resistance, Oil Resistance

Flammability / Reaction to Fire

IEC 60332-3-24

Data Category

Category 6

TIA/EIA Compliance

TIA-568.2-D

ISO/IEC Compliance

IEC 61156-5, ISO/IEC 11801

European Halogen Free Standards

IEC 60754-1 - Halogen Amount = 5 mg/g, IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity = 10 µS/mm, IEC 60754-2 - Halogen Acid Gas Amount - Min. pH = 4.3

Notes

Jacket sequentially marked

Update and Revision

Revision Number: 0.34 Revision Date: 02-20-2026

Update and Revision

Revision Number: 0.34 Revision Date: 02-20-2026


Report An Error

Part Numbers

Item # Color Length
50106UAL 010305M Black 305 m
50106UAL 006305M Blue 305 m
50106UAL 008305M Gray 305 m
50106UAL 009305M White 305 m
50106UAL 004305M Yellow 305 m
