Product Number: AUSPPD3899

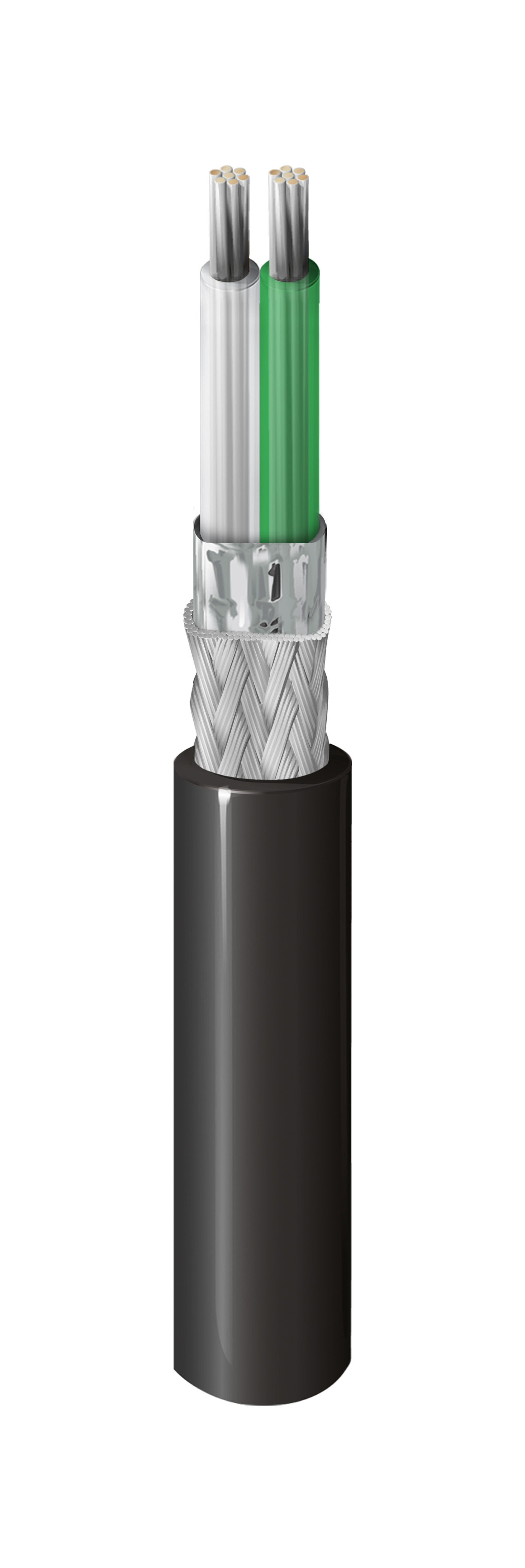

AUTOMOTIVE ETHERNET SPE 25GBPS 1P 26AWG SPP PVC

AUTOMOTIVE ETHERNET SPE 25GBPS 1P 26AWG SPP PVC

  • Availability:
    Global
  • Status:
    Active
AUSPPD3899
  • AUSPPD3899
1 of 1

Specifications

Expand All

Suitable Applications

Automotive Ethernet

Conductor

Size Stranding Material No. of Pairs
26 7x34 TC - Tinned Copper 1

Insulation

Material Nom. Insulation Diameter Color Code Notes
PP - Polypropylene 1.25 mm (0.0492 in) White & Green Foamed PP

Outer Shield

Shield Type Material Coverage
Tape Bi-Laminate (Alum+Poly) 100%
Braid Tinned Copper (TC) 85%

Outer Jacket

Material Nom. Diameter
PVC - Polyvinyl Chloride 4 mm (0.16 in)

Electricals

Max. Conductor DCR Nom. Characteristic Impedance
150 Ohm/km (46 Ohm/1000ft) 100 Ohm

High Frequency

Frequency [MHz] Max. Insertion Loss (Attenuation) Min. RL (Return Loss) [dB]
100 0.32 dB 20
500 0.72 dB 20
900 0.99 dB 17
1100 1.09 dB 16.4
1500 1.31 dB 15.05
1700 1.40 dB 14.5
2100 1.59 dB 13.5
2500 1.75 dB 12.8
2900 1.92 dB 11.8
3100 2.01 dB 11.3
3500 2.15 dB 10.9
3900 2.31 dB 10.5
4300 2.46 dB 10.1
4700 2.64 dB 9.7
5100 2.77 dB 9.4
5500 2.91 dB 9.1
5900 3.06 dB 8.8
6300 3.22 dB 8.5
6700 3.43 dB 8.2
7100 3.63 dB 8.0
7500 3.84 dB 8
7900 4.16 dB 8
8300 4.46 dB 8
8700 4.75 dB 8
9000 4.90 dB 8

Screening

Frequency Min. Screening Attenuation
30 MHz 45 dB
4000 MHz 45 dB

Voltage

Voltage Rating
60 V

Temperature

Operating
-40°C To +105°C

Bulk Cable Weight

44.9 kg/km (30.2 lbs/1000ft)

Flammability / Reaction to Fire

FT2

IEEE Compliance

IEEE 802.3cy

Data Category

SPE 25 Gbps

Update and Revision

Revision Number: 0.23 Revision Date: 08-22-2024

Update and Revision

Revision Number: 0.23 Revision Date: 08-22-2024
