Product Number: BE46830

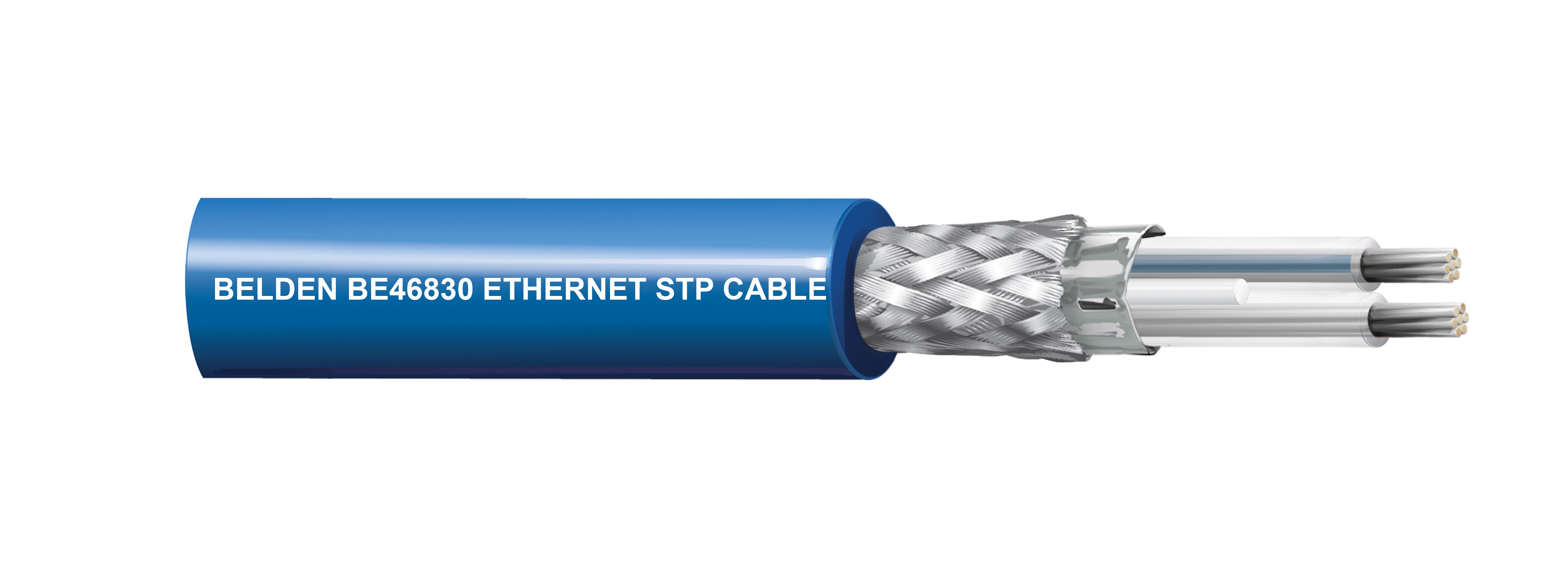

Marine Type SPE 40mGb 22AWG STR SF/UTP SHF1, UV resistant, Outdoor
Marine Type SPE 40mGb 22AWG STR SF/UTP SHF1, UV resistant, Outdoor
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
1 single pair Ethernet up to 600 MHz |
|---|
Construction Details
Conductor
| Size | Stranding | Material | No. of Pairs |
|---|---|---|---|
| 22 AWG | 7x0.25 mm | TC - Tinned Copper | 1 |
Insulation
| Material | Nom. Insulation Diameter | Color Code |
|---|---|---|
| XLP, XLPO, XLPE | 2.10 mm (0.0827 in) | Nature, Nature & Blue |
Outer Shield
| Shield Type | Material |
|---|---|
| Tape | Bi-Laminate (Alum+Poly) |
| Braid | Tinned Copper (TC) |
Outer Jacket
| Material | Nom. Diameter |
|---|---|
| LSZH - Low Smoke Zero Halogen (SHF1) | 6.20 mm (0.244 in) |
Electrical Characteristics
Electricals
| Max. Conductor DCR | Max. Capacitance Unbalance | Nom. Characteristic Impedance |
|---|---|---|
| 59.4 Ohm/km (18.1 Ohm/1000ft) | 160 pF/100m | 100 Ohm |
Delay
| Frequency | Max. Delay |
|---|---|
| 4 MHz | 552 ns/100m |
High Frequency
| Frequency [MHz] | Max. Insertion Loss (Attenuation) [dB/100m] | Min. RL (Return Loss) [dB] | Min. TCL [dB] | Min. ELTCTL [dB] |
|---|---|---|---|---|
| 1 | 3.0 | 20 | 40 | 40 |
| 10 | 8.7 | 25 | 35 | 20 |
| 20 | 12.3 | 25 | 30.5 | 13.9 |
| 600 | 70.6 | 15.6 | 8.3 | 5 |
|
Transfer Impedance Class |
Grade 1 |
|---|
Mechanical Characteristics
Temperature
| Operating |
|---|
| -20°C to + 80°C |
Standards and Compliance
|
Flammability / Reaction to Fire |
FT 2, IEC 60332-1-2, IEC 60332-3-22 |
|---|---|
|
AWM Compliance |
AWM 21307 |
|
Data Category |
SPE 1000 Mbps |
|
European Halogen Free Standards |
IEC 62821-1 Halogen Free Compliance = Yes, IEC 60754-1 - Halogen Amount = 0.5 %, IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity = 10 µS/mm, IEC 60754-2 - Halogen Acid Gas Amount - Min. pH = 4.3 |
|
Other Standard Compliance(s) |
IEC 61156-12 NP, UL 758, IEC 60092-376 |
History
|
Update and Revision |
Revision Number: 0.91 Revision Date: 11-29-2024 |
|---|
