Product Number: FX Brilliance OS2 LC Keyed

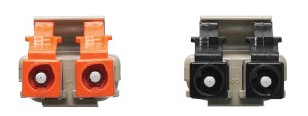

FX Brilliance OS2 LC Keyed Connector
FX Brilliance Universal OS2 LC Keyed Blue Mechanical Keyed
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Environmental Space |
Indoor |
|---|---|
|
Suitable Applications |
Field-termination of fiber optic cables within Patch Panels, Distribution Frames, Workstation Outlets for FTTD (Fiber to the Desk), drops for FTTH (Fiber to the home) and MDU (Multiple Dwelling Units). |
Construction
Fiber Cable Construction
| Fiber Type |
|---|
| OS2 |
Mechanical Characteristics
Mechanical Specifications
| Test | GR-326-CORE/1081-CORE (SM) |
|---|---|
| Intermateability Requirement | Compliant with TIA/EIA-604-3 (FOCIS 3) |
| Operating Temp Range | -40°C to +75°C |
| Storage Temp Range | -40°C to +60°C |
| Durability | 500 cycles, less than 0.2 dB change, FOTP-21 |
|
Maximum Insertion Loss |
0.50 dB |
|---|---|
|
Typical Insertion Loss |
0.20 dB |
|
Minimum Reflectance @ 1550nm |
-30 dB |
Mechanical Tests
| Description |
|---|
|
Termination Style |
Mechanical |
|---|
|
Durabilities@Termination1 |
500 cycles, less than 0.2 dB change, FOTP-21 |
|---|
Temperature Range
|
Operating Temperature Range |
-40°C to +75°C |
|---|---|
|
Storage Temperature Range |
-40°C to +60°C |
Product Material
Materials
| Description | Material | Color |
|---|---|---|
| Boot | Rubber | Black |
| Protective Ferrule Cap | Plastic | Opaque |
| Connector Body | Plastic | Blue |
| Ferrule | Ceramic |
Standards
|
TIA/EIA Compliance |
TIA 568-C.3 |
|---|---|
|
MII Order #39 (China RoHS) |
EUP 50 |
|
Safety Listing |
ACA |
Related Part Numbers
|
Included Parts |
900 µm boot, protective ferrule cap |
|---|---|
|
Packaging |
Individually packaged in a sealed plastic bag. Twenty-five (25) connectors come in a dust and moisture resistant blister package. |
|
Related Parts |
FX Brilliance Precision Installation Kit, Boots for 2mm and 3mm Jacketed Fiber, 250µm to 900µm break out kits. |
History
|
Update and Revision |
Revision Number: 0.51 Revision Date: 02-12-2025 |
|---|
Belden.GenericSpecificationTitle
|
Update and Revision |
Revision Number: 0.51 Revision Date: 02-12-2025 |
|---|
Part Numbers
| Item # | Color | Packaging | UPC |
|---|---|---|---|
| AX105248-B25 | Aqua | 25-Pack | 611589106207 |
| AX105243-B25 | Black | 25-Pack | 611589106153 |
| AX105245-B25 | Blue | 25-Pack | 611589106177 |
| AX105249-B25 | Brown | 25-Pack | 611589106214 |
