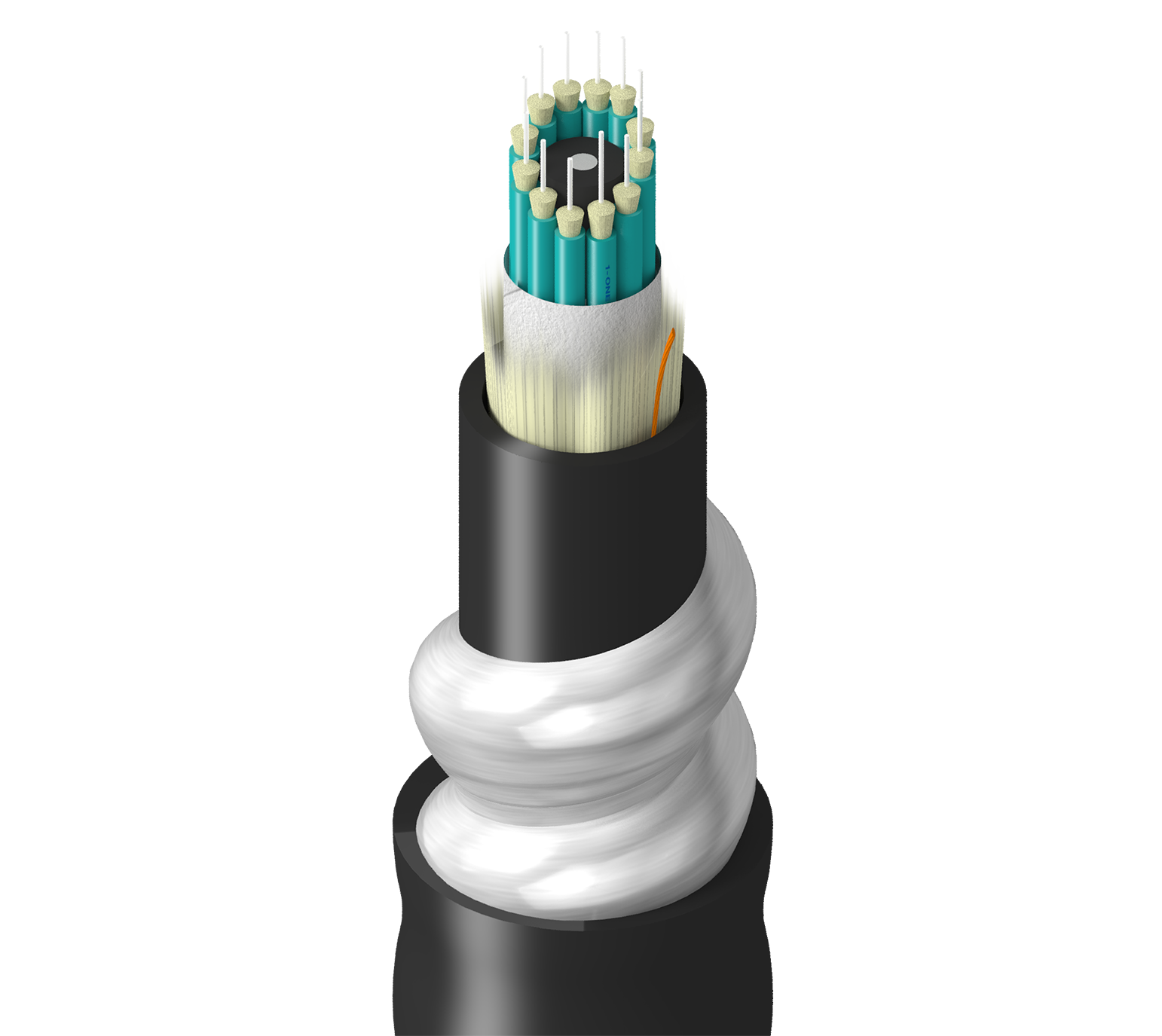

Fiber Breakout Cable
Extended Distance Horizontal & Backbone Data/Telco Network, Noisy Environment, Indoor/Outdoor & Wet Locations, Oil Res 1 /2, Rodent Proof
Fiber Core Diameter
PVC - Polyvinyl Chloride
Fiber Color Coding
Number of Active Subunits
Fibers Per Subunit
0.078 in (2.0 mm)
Subunit Strength Members
Waterblocking aramid yarns
Central Strength Member
Waterblocking Aramid Yarns
0.540 in (13.7 mm)
Number of Ripcords
Armor Type and Material
AIA - Aluminum Interlock Armor
CPE - Chlorinated Polyethylene
0.950 in (24.1 mm)
Min. Bend Radius During Installation
20x Cable OD
Min. Bend Radius During Operation
10x Cable OD
Max. Tensile Strength During Installation
1335 N (300 lbf)
Max. Tensile Strength During Operation
400 N (90 lbf)
Bulk Cable Weight
245 lbs/kft (365 kg/km)
Installation Temperature Range
-10°C to +60°C
Operating Temperature Range
-50°C to +70°C
Storage Temperature Range
Indoor/Outdoor, Sunlight Resistance, Oil Resistance, Burial
CA Prop 65
Flammability / Reaction to Fire
Update and Revision
Revision Number: 0.11 Revision Date: 04-08-2022
