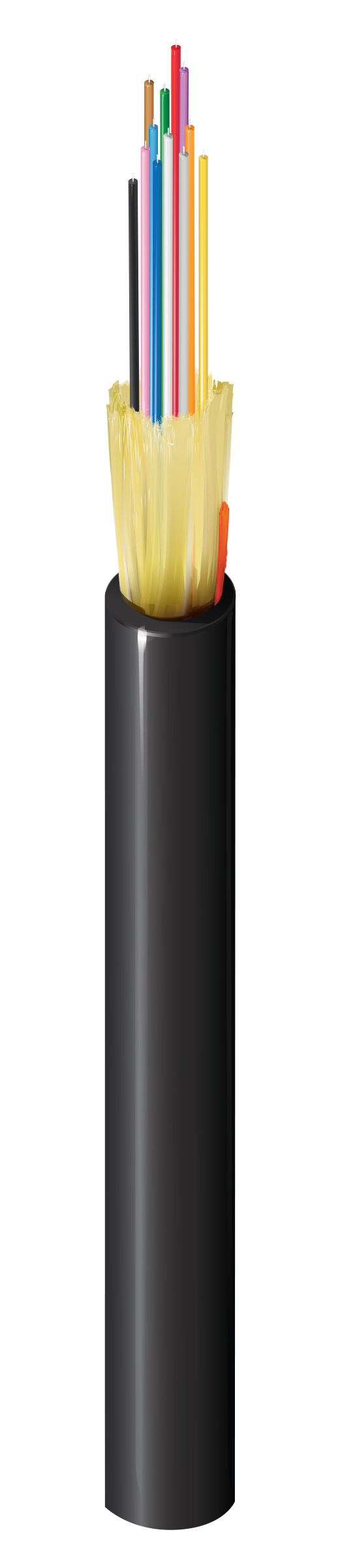

Product Number: FD1D012L9
Indoor/Outdoor Distribution Tight Buffer OM1 12 Fibers LSZH/OFNR Non-Unitized
FX Indoor/Outdoor, Distribution Tight Buffer, OM1, 12 Fibers, LSZH/OFNR, Non-Unitized, Black Jacket
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Product Category |
Fiber Distribution Cable |
|---|---|
|
Suitable Applications |
Premise Backbone |
Fiber Specifications
|
Fiber Type |
OM1 |
|---|---|
|
Fiber Core Diameter |
62.5/125 µm |
|
Fiber Diameter |
250 µm |
|
Buffer Diameter |
900 µm |
|
Fiber Count |
12 |
|
Fiber Color Coding |
TIA-598-D |
Outer Jacket Specifications
|
Strength Member |
Waterblocking Aramid Yarns |
|---|---|
|
Jacket Material |
LSZH - Low Smoke Zero Halogen (Flame Retardant) |
|
Nom. Diameter |
0.260 in (6.6 mm) |
|
Color |
Black |
|
Number of Ripcords |
1 |
Optical Characteristics
| Wavelength | 850 nm | 1300 nm |
|---|---|---|
| Max. Attenuation | 3.5 dB/km | 1.25 dB/km |
| 10 Gigabit Ethernet Performance | 33 m | -- |
| Min. Overfilled Launch (OFL) Bandwidth | 200 MHz.km | 500 MHz.km |
Mechanical Characteristics
|
Min. Bend Radius During Installation |
15x Cable OD |
|---|---|
|
Min. Bend Radius During Operation |
10x Cable OD |
|
Max. Tensile Strength During Installation |
660 N (150 lbf) |
|
Max. Tensile Strength During Operation |
200 N (45 lbf) |
|
Crush Resistance |
220 N/cm |
|
Bulk Cable Weight |
26 lbs/kft (39 kg/km) |
|---|
Temperature Range
|
Installation Temperature Range |
-10°C to +60°C |
|---|---|
|
Operating Temperature Range |
-40°C to +70°C |
|
Storage Temperature Range |
-40°C to +70°C |
Standards and Compliance
|
Environmental Suitability |
Indoor/Outdoor, Sunlight Resistance, Burial |
|---|---|
|
Sustainability |
CA Prop 65, Product Lens™, Environmental Product Declaration (EPD) Available |
|
Flammability / Reaction to Fire |
UL 1666, UL 1685, FT4 |
|
NEC / UL Compliance |
OFNR-ST1 |
|
CEC / C(UL) Compliance |
OFNR-ST1 |
|
ICEA Compliance |
S-104-696 |
|
European Directive Compliance |
EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16 |
History
|
Update and Revision |
Revision Number: 0.51 Revision Date: 02-24-2025 |
|---|
Belden.GenericSpecificationTitle
|
Update and Revision |
Revision Number: 0.51 Revision Date: 02-24-2025 |
|---|
Part Numbers
| Item # | Color | UPC |
|---|---|---|
| FD1D012L9 | Black | 612825380955 |
