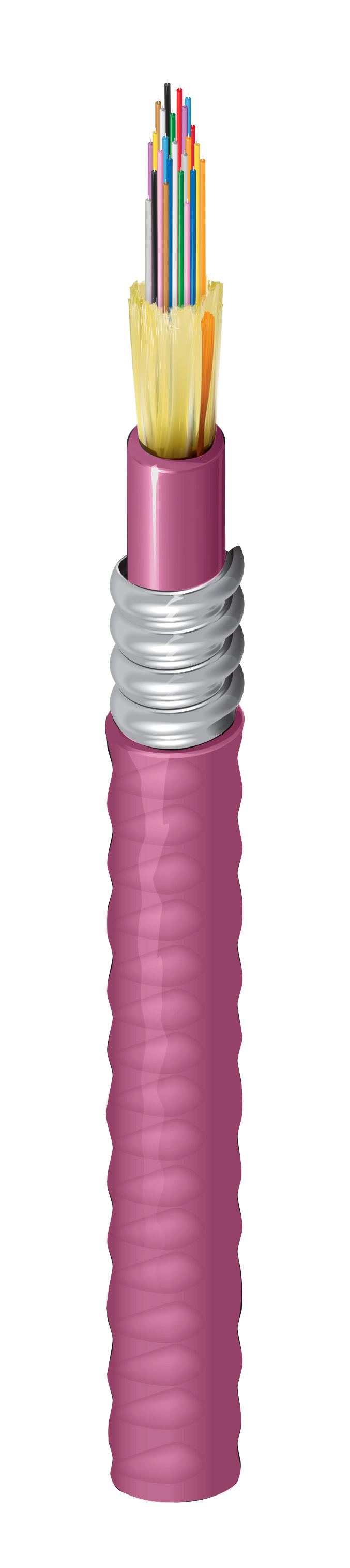

Fiber Distribution Cable
Fiber Core Diameter
PVC - Polyvinyl Chloride
Fiber Color Coding
0.330 in (8.4 mm)
Number of Ripcords
Armor Type and Material
AIA - Aluminum Interlock Armor
0.580 in (14.7 mm)
Min. Bend Radius During Installation
20x Cable OD
Min. Bend Radius During Operation
10x Cable OD
Max. Tensile Strength During Installation
1320 N (300 lbf)
Max. Tensile Strength During Operation
400 N (90 lbf)
Bulk Cable Weight
150 lbs/kft (223 kg/km)
Installation Temperature Range
0°C to +60°C
Operating Temperature Range
0°C to +70°C
Storage Temperature Range
-40°C to +70°C
CA Prop 65, Product Lens™, Environmental Product Declaration (EPD) Available
Flammability / Reaction to Fire
European Directive Compliance
EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16
Update and Revision
Revision Number: 0.86 Revision Date: 11-09-2022
