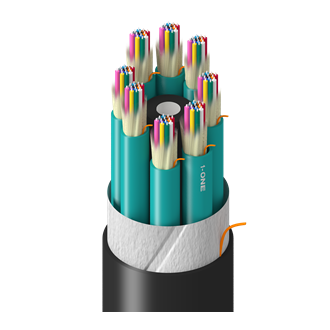

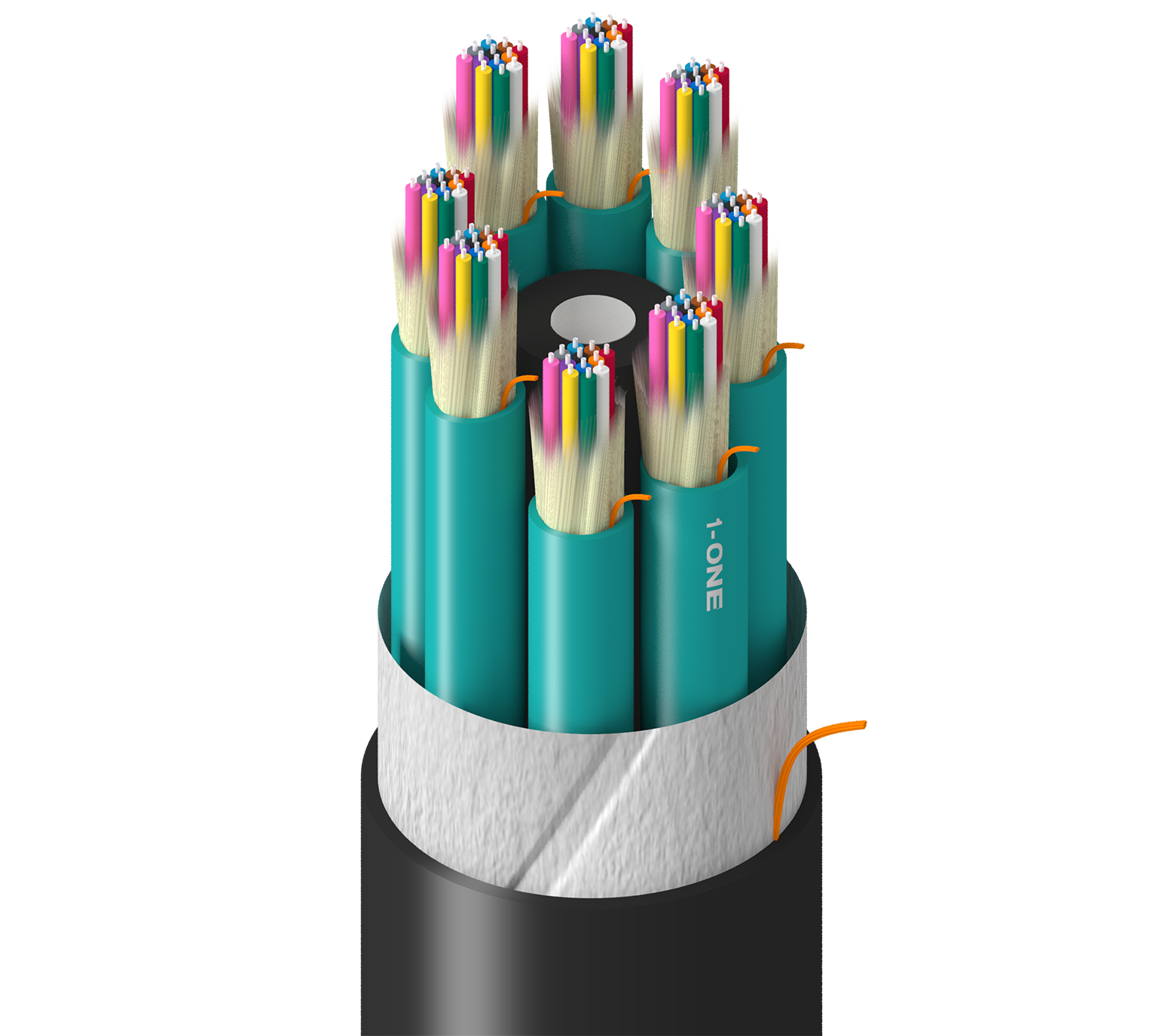

Fiber Distribution Cable
Extended Distance Horizontal & Backbone Data/Telco Network, Noisy Environment, Indoor/Outdoor & Wet Locations, Oil Res 1 /2
Fiber Core Diameter
PVC - Polyvinyl Chloride
Fiber Color Coding
Number of Active Subunits
Fibers Per Subunit
0.230 in (5.8 mm)
Subunit Strength Members
Waterblocking Aramid Yarn
Central Strength Member
CPE - Chlorinated Polyethylene
0.977 in (24.8 mm)
Number of Ripcords
Min. Bend Radius During Installation
15x Cable OD
Min. Bend Radius During Operation
10x Cable OD
Max. Tensile Strength During Installation
2670 N (600 lbf)
Max. Tensile Strength During Operation
800 N (180 lbf)
Bulk Cable Weight
344 lbs/kft (512 kg/km)
Installation Temperature Range
-10°C to +60°C
Operating Temperature Range
-50°C to +70°C
Storage Temperature Range
Indoor/Outdoor, Sunlight Resistance, Oil Resistance
CA Prop 65
Flammability / Reaction to Fire
Update and Revision
Revision Number: 0.10 Revision Date: 07-07-2022
