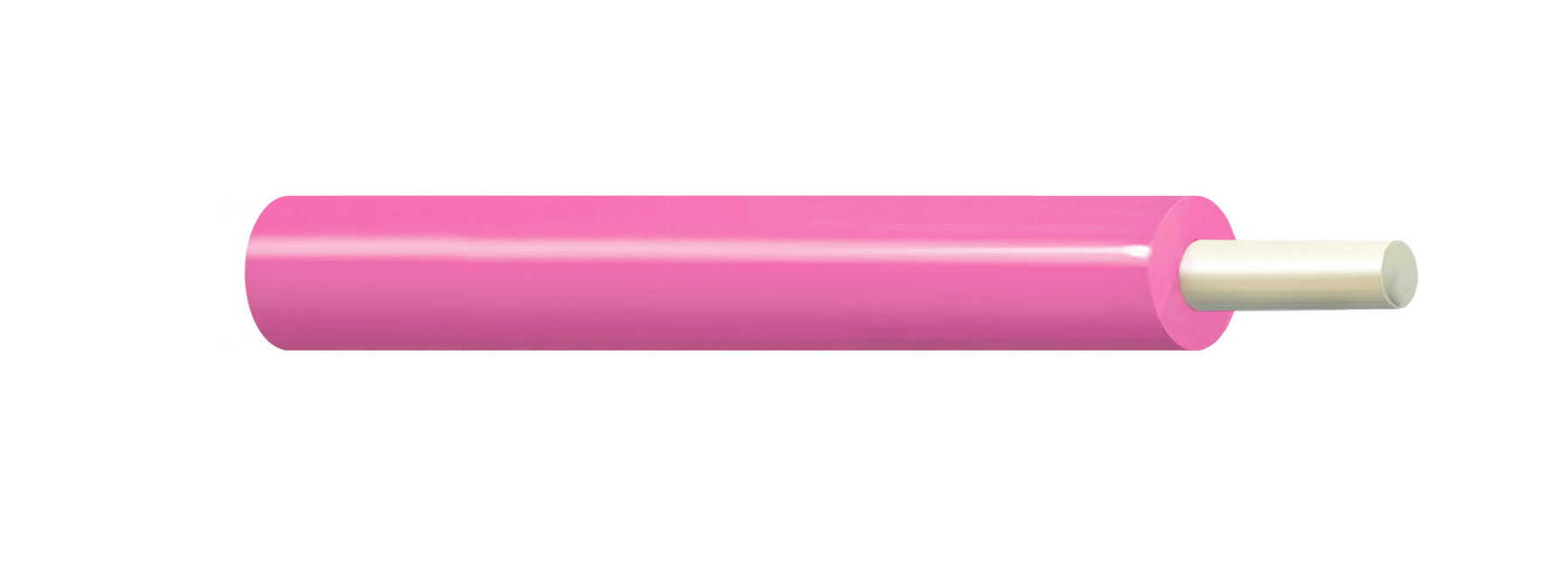

GIOS2G1

Indoor semi-tight buffered pigtail LSZH jacket Colored fiber for pigtail Simplex MM OM2.

...
Indoor semi-tight buffered pigtail with Low Smoke Zero Halogen outer jacket. Colored fiber for pigtail Simplex MM OM2.
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Environmental Space

Indoor (Not Riser or Plenum)

Suitable Applications

Flexible terminating leads such as pigtails, patchcords and test leads. Support all computer network applications such as FDDI, Gigabit Ethernet and ATM. Short distance applications for indoor use.

Construction
Fiber Cable Construction
Fiber Type Fiber Count
OM1 1
Buffer Specification
Fiber Type Buffer Construction Buffer Material Buffer Diameter
OM2 Semi-Tight LSZH - Low Smoke Zero Halogen (Flame Retardant) 0.9 mm

Bulk Cable Weight

0.67 kg/km
Jacket Specifications

Number of Jackets

Single Jacket

Type of Armor

Non-Armored

Outer Jacket Specifications
Outer Jacket
Material Nominal Diameter Ripcord
LSZH - Low Smoke Zero Halogen (Flame Retardant) 0.9 mm No

Table Notes

Standard color: Orange. Available colors: Orange, Yellow, Turquoise, Erika Violet, Red, Blue, Green, Brown, Violet, Pink, Grey, White, Black, Lime Green

Optical Characteristics

Max. Attenuation at 1300 nm

0.9 dB/km

Max. Attenuation at 850 nm

2.9 dB/km
Mechanical Characteristics
Mechanical Tests
Description Tested Standard Requirement/Value
Cable Max. Tensile Strength Installation (Short Term) IEC 60794-1-21-E1 3 N (1 lbf)
Cable Max. Tensile Strength Operation (Long Term) IEC 60794-1-21-E1 1 N (0 lbf)
Cable Max. Crush Resistance Installation (Short Term) IEC 60794-1-21-E3 0.5 kN/m
Temperature Range

Operating Temperature Range

-40 °C to +70 °C

Installation Temperature Range

-15 °C to +50 °C

Storage Temperature Range

-40 °C to +70 °C

Product Material

UL Rating/Flame Test

Non-UL Rated

Standards

IEC Flammability

IEC 60332-1-2

IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity

10 µS/mm

IEC 60754-1 - Halogen Amount

Zero

IEC 60754-2 - Halogen Acid Gas Amount - Min. pH

4.3

REACH

Compliant

ISO/IEC Compliance

IEC 60794

UV/ Sunlight Protection

Yes

History

Update and Revision

Revision Number: 0.159 Revision Date: 04-10-2024

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Put-Up Type Length EAN
GIOS2G1.002100 Black Reel 2,100 m 8719605074584
GIOS2G1.102100 Blue Reel 2,100 m 8719605074683
GIOS2G1.042100 Brown Reel 2,100 m 8719605074621
GIOS2G1.082100 Gray Reel 2,100 m 8719605074669
GIOS2G1.052100 Green Reel 2,100 m 8719605074638
GIOS2G1.012100 Natural Reel 2,100 m 8719605074591
GIOS2G1.062100 Orange Reel 2,100 m 8719605074645
GIOS2G1.092100 Pink Reel 2,100 m 8719605074676
GIOS2G1.072100 Red Reel 2,100 m 8719605074652
GIOS2G1.112100 Turquoise Reel 2,100 m 8719605074690
GIOS2G1.032100 Violet Reel 2,100 m 8719605074614
GIOS2G1.022100 Yellow Reel 2,100 m 8719605074607
