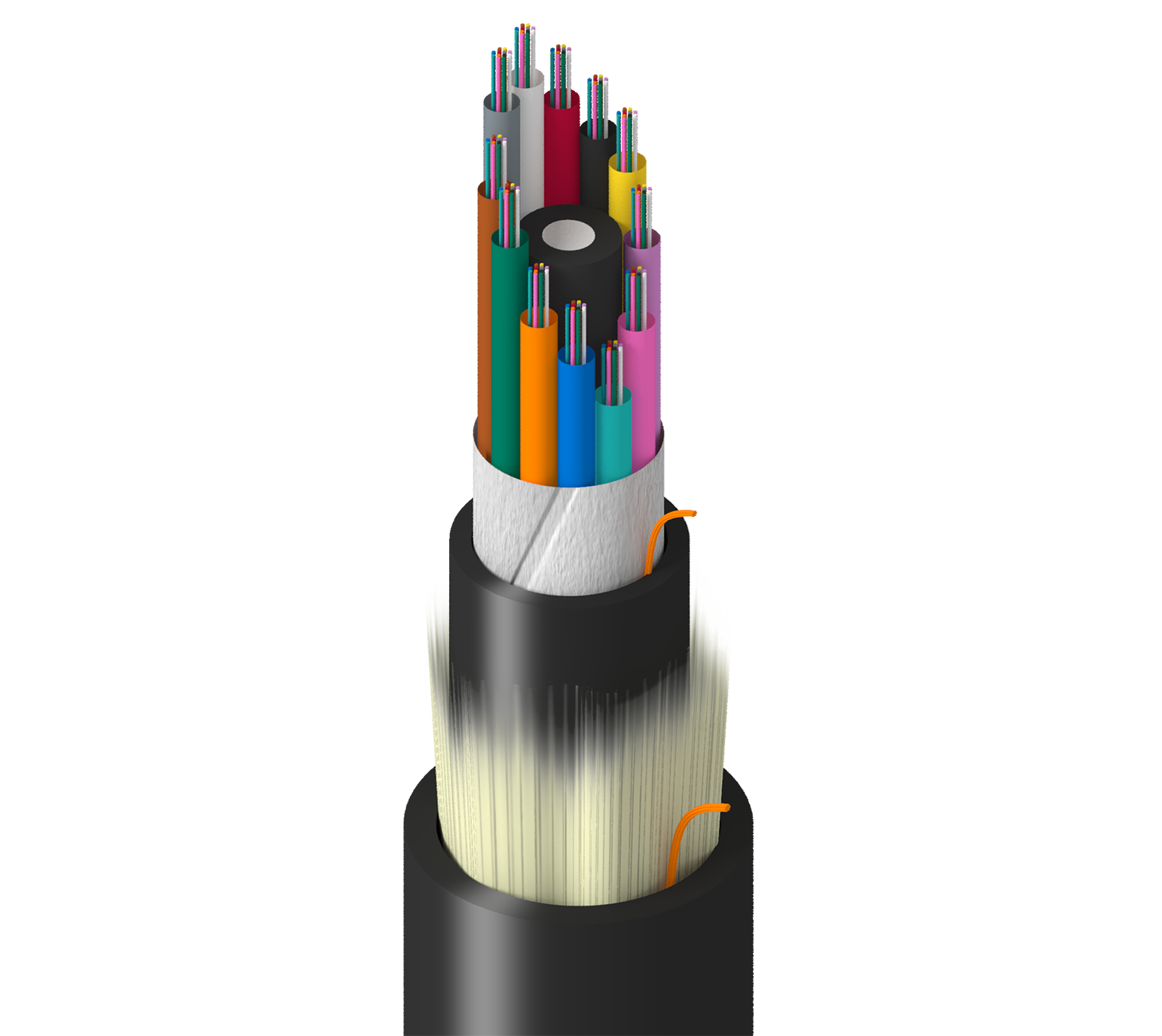

Fiber Multi-Loose Tube Cable
Extended Distance Horizontal & Backbone Data/Telco Network, Noisy Environment, Indoor/Outdoor & Wet Locations
Fiber Core Diameter
Fiber Color Coding
Number of Active Subunits
Fibers Per Subunit
0.110 in (2.8 mm)
Central Strength Member
Waterblocking Aramid Yarns
PVC - Polyvinyl Chloride
0.761 in (19.3 mm)
Min. Bend Radius During Installation
15x Cable OD
Min. Bend Radius During Operation
10x Cable OD
Max. Tensile Strength During Installation
2670 N (600 lbf)
Max. Tensile Strength During Operation
800 N (180 lbf)
Bulk Cable Weight
231 lbs/kft (344 kg/km)
Installation Temp Range
-10°C to +60°C
Operating Temp Range
-40°C to +70°C
Storage Temp Range
Indoor/Outdoor, Sunlight Resistance, Oil Resistance
Flammability / Reaction to Fire
Update and Revision
Revision Number: 0.13 Revision Date: 12-15-2021
