Product Number: 7804ESP

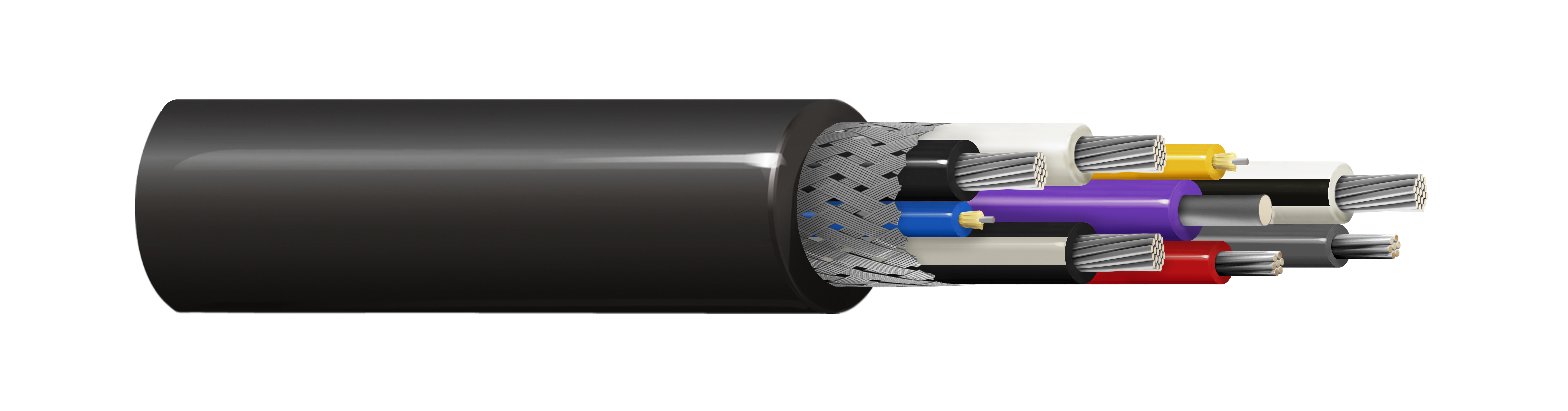

Indoor/outdoor/Mobile Duty SMPTE 311M Cable, 2 single fiber sub units, 2 Conductor 24 AWG, 4 Conductor 20 AWG, PUR jacket

Indoor/outdoor/Mobile SMPTE 311M Cable, 2 Sub units Single Mode Fibers, 2 TC Conductors 24 AWG (7x32) and 4 TC Conductors 20 AWG (19x32), FRNC Insulation, TC Braid Shield (80% coverage),PUR Jacket

  • Availability:
    Global
  • Status:
    Active
7804ESP
5 of 5

Specifications

Report An Error

Suitable Applications

SMPTE 311M CAMERA CABLE

Multiconductor Conductor and Insulation

Element No. of Conductors AWG Stranding Material Nominal Conductor DCR Insulation Material Insulation Nominal Diameter
24 AWG 2 24 7x32 TC - Tinned Copper 92 Ohm/km 1.22 mm
20 AWG 4 20 19x32 TC - Tinned Copper 36 Ohm/km Polyolefin (PO ,PE ,PP) 1.57 mm

Multiconductor Color Chart

Description Color
24 AWG Red
24 AWG Gray
20 AWG Black
20 AWG White
20 AWG White/Black
20 AWG Black/White

Shielding

Braid(s)

Multiconductor UL Voltage

UL Description UL Voltage Rating
24 AWG 300 V RMS
20 AWG 300 V RMS

Fiber Cable Construction

Fiber Type Fiber Count
OS2 2

Fiber Color Coding

Yellow, Blue

Buffer Specification

Buffer Material Buffer Diameter
Thermoplastic 900 µm

Number of Active Subunits

2

Fibers Per Subunit

1

Mode Field Diameter

9.2 µm

Wavelength@Optical SM1

1310 nm, 1550 nm

Max. Attenuation at 1310 nm

0.50 dB/km

Max. Attenuation at 1550 nm

0.50 dB/km

Conductor Material:

Tinned Copper

Outer Jacket

Nominal Diameter
9.2 mm

Overall Shielding

Layer 1 Type Material Coverage
Overall Braid TC - Tinned Copper 80 %

Jacket

PUR

Nominal Diameter@OuterJacket1 1_CP_OV

9.2 mm

Operating Temperature Range

-40°C To +75°C

Storage Temperature Range

-40°C To +75°C

Max. Pull Tension

1350 N

EU Directive 2011/65/EU (RoHS 2)

Yes

EU Directive 2015/863/EU (RoHS 2 amendment)

Yes

EU Directive 2000/53/EC (ELV)

Yes

EU Directive 2012/19/EU (WEEE)

Yes

EU Directive 2003/11/EC (BFR)

Yes

IEC 60754-1 - Halogen Amount

Zero

Suitability - Indoor

Yes

Suitability - Outdoor

Yes

Suitability - Sunlight Resistance

Yes - Black only

Plenum (Y/N)

N

Notes

Jacket adheres tightly to braid
