7200A

MachFlex™, 1 Pr #24 Str BC, PO Ins, OS+TC Brd, PVC Jkt, CM

...

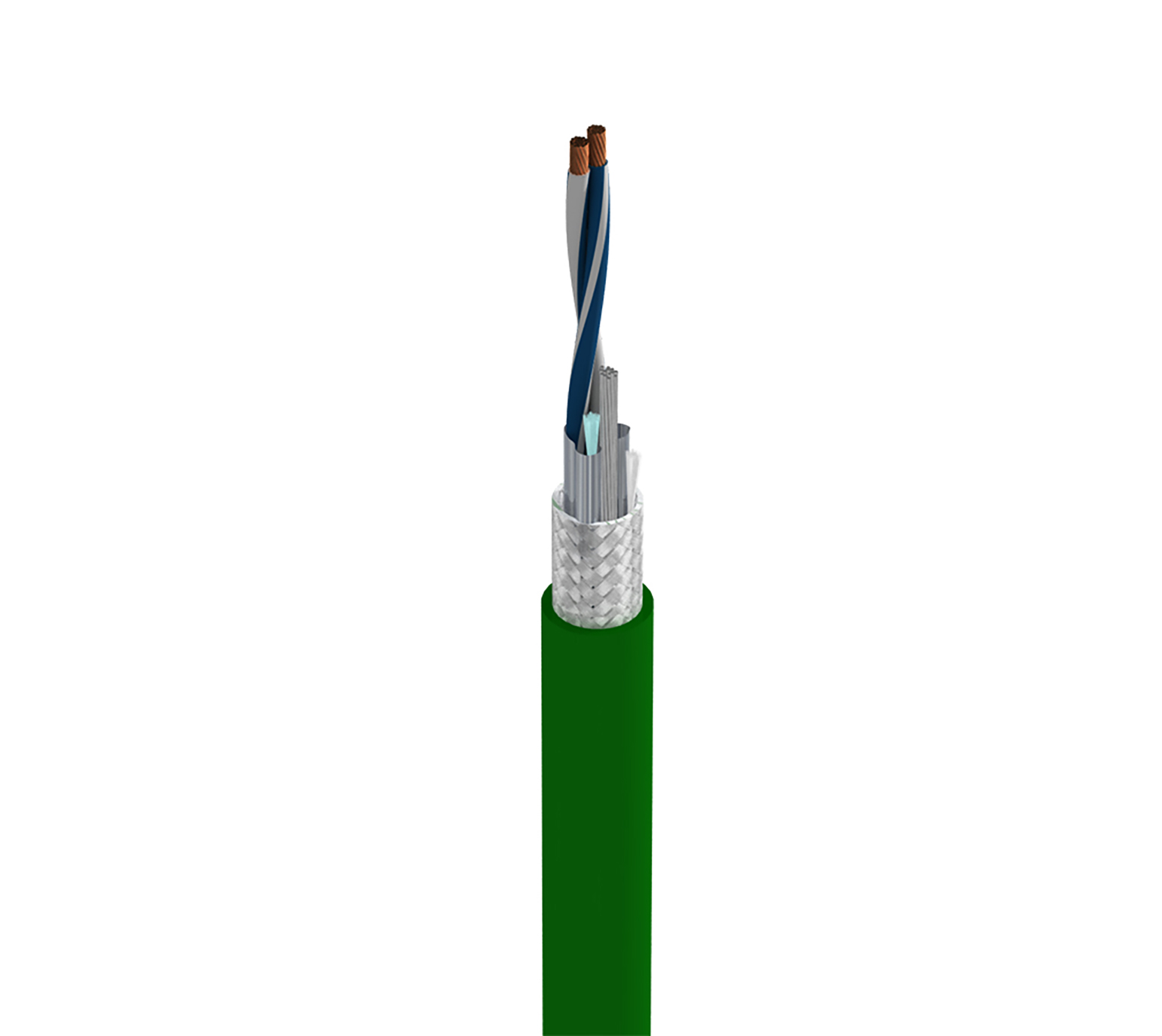

MachFlex™ for High Flex, 1 Pair 24AWG (41x40) Bare Copper, PO Insulation, Overall Beldfoil®+Tinned Copper Braid(85%) Shield, PVC Outer Jacket, CM
English
Request Quote
Share
Request Sample Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

Flex Data, RS232, RS485

Construction Details
Conductor
Element No. of Elements Size Stranding Material
Conductor(s) 2 24 AWG 41x40 BC - Bare Copper
Insulation
Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Conductor(s) PE - Polyethylene (Foam) 0.019 in (0.48 mm) 0.0705 in (1.79 mm) Blue, White
Outer Shield
Shield Type Material Coverage Drainwire Type
Tape Bi-Laminate (Alum+Poly) 100% 24 AWG (41x40) TC
Braid Tinned Copper (TC) 89%
Outer Jacket
Material Nom. Thickness Nom. Diameter
PVC - Polyvinyl Chloride 0.045 in (1.1 mm) 0.261 in

Overall Cable Diameter (Nominal)

0.261 in

Electrical Characteristics
Electricals
Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Velocity of Prop. Max. Current
27.2 Ohm/1000ft 15 pF/ft (49 pF/m) 72% 2.2 Amps per Conductor at 30ºC
Voltage
UL Voltage Rating
300 V
Mechanical Characteristics
Temperature
UL Temperature Operating
60°C -20°C To +60°C
Bend Radius
Stationary Min. Installation Min.
2.61 in (66.3 mm) 2.61 in

Max. Pull Tension

41 lbs (19 kg)

Bulk Cable Weight

34 lbs/1000ft

Standards and Compliance

Environmental Suitability

Oil Resistance, Oil Resistance

Flammability / Reaction to Fire

UL1685 UL Loading

NEC / UL Compliance

Article 800, CM

CEC / C(UL) Compliance

CM

European Directive Compliance

EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

APAC Compliance

China RoHS II (GB/T 26572-2011)

Other Standard Compliance(s)

RS Type: 232/485

Product Notes

Notes

1 million flex cycles based on proper installation techniques in a C-track cable guide.

History

Update and Revision

Revision Number: 0.330 Revision Date: 02-15-2024

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Putup Type Length UPC Footnote
7200A X4P500 Green X4P Reel 500 ft 612825182689 C
7200A X4P1000 Green X4P Reel 1,000 ft 612825182672 C
