Product Number: 73003WS

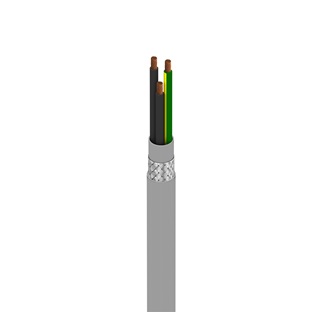

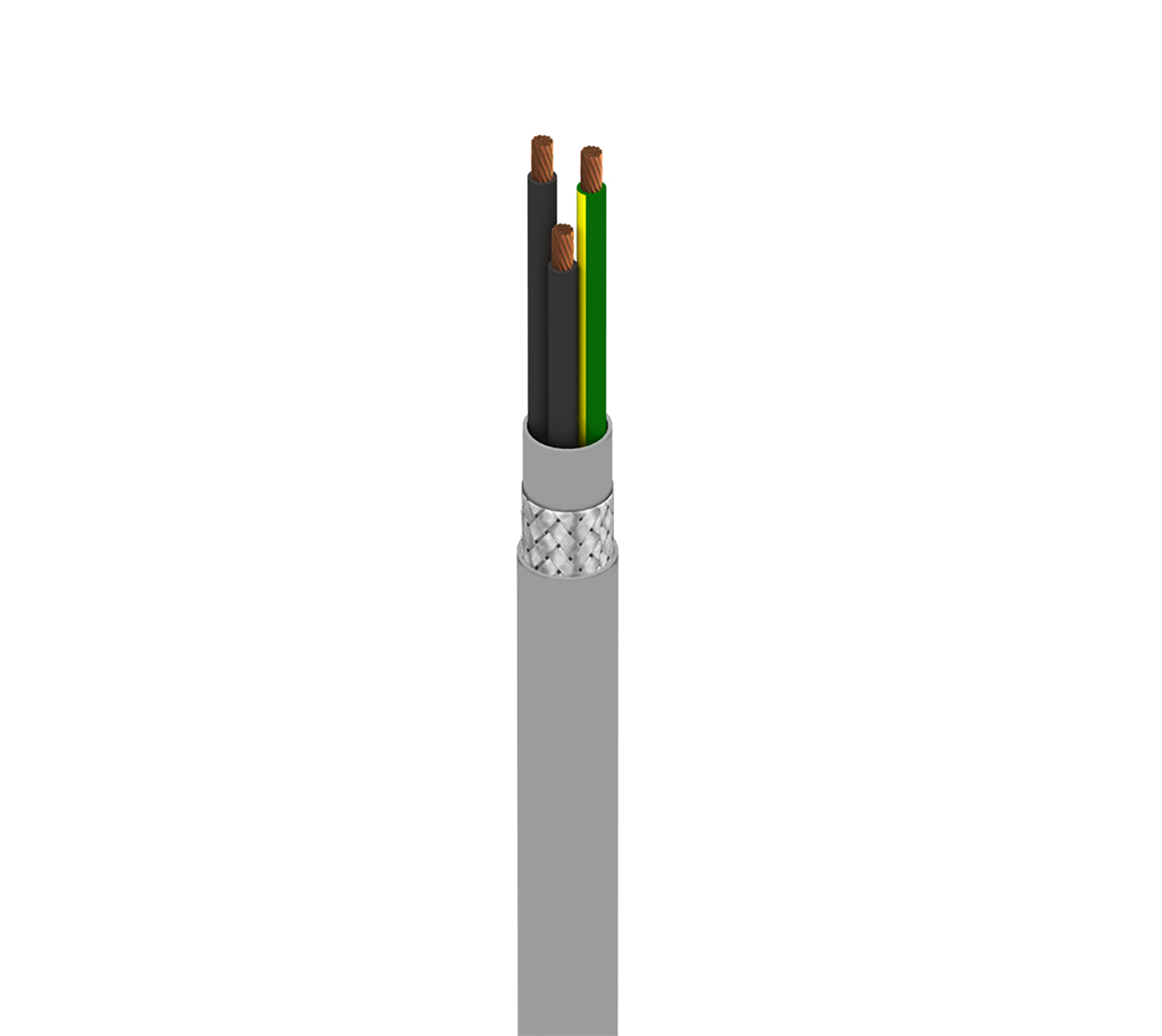

MachFlex™, 3 C #20 Str BC, PVC Ins, OA TC Brd, PVC Jkt, PVC Jkt, AWM 2587 CLASS K

MachFlex™ for Moderate Flex, 3 Conductor 20AWG (10x30) Bare Copper, PVC Insulation, Overall Tinned Copper Braid(85%) Shield, PVC Inner Jacket, PVC Outer Jacket, AWM 2587 CLASS K

  • Availability:
    Americas
  • Status:
    Active
73003WS
  • 73003WS
1 of 1

Specifications

Expand All

Suitable Applications

Robotics, Robot, Continuous Flex

Conductor

Element AWG Stranding Material No. of Conductors
Conductor(s) 20 10x30 BC - Bare Copper 2
Ground 20 10x30 BC - Bare Copper 1

Conductor Count

3

Insulation

Element Material Nominal Diameter Nominal Wall Thickness
Conductor(s) PVC - Polyvinyl Chloride 0.081 in 0.022 in
Ground PVC - Polyvinyl Chloride

Color Chart

Color
Black and Numbered

Inner Jacket

Material Nominal Diameter Nominal Wall Thickness
PVC - Polyvinyl Chloride .339 in .030 in

Outer Shield

Type Material Coverage [%]
Braid Tinned Copper (TC) 85%

Outer Jacket

Material Nominal Diameter Nominal Wall Thickness
PVC - Polyvinyl Chloride 0.339 in 0.035 in

Conductor DCR

Nominal Conductor DCR Nominal Outer Shield DCR
10.7 Ohm/1000ft 3.5 Ohm/1000ft

Capacitance

Nom. Capacitance Conductor to Conductor
38 pF/ft

Inductance

Nominal Inductance
.210 µH/ft

Voltage

UL Voltage Rating
600 V

UL Temp Rating

90°C

Operating Temperature Range

-40°C To 90°C (Static), -5°C To 90°C (Flexing)

Oil Resistance

Yes

Flex Cycle Rating

1 Million Cycles

Bulk Cable Weight

137 lbs/1000ft

Max. Pull Tension

30 lbs

Min. Bend Radius (Continuous Flexing)

2.7 in

Min. Bend Radius/Minor Axis

2.7 in

NEC/(UL) Compliance

THHN, THWN

UL AWM Style Compliance

AWM 2587

CSA AWM Compliance

AWM I/II A/B

EU Directive 2000/53/EC (ELV)

Yes

EU Directive 2003/11/EC (BFR)

Yes

EU Directive 2011/65/EU (RoHS 2)

Yes

EU Directive 2012/19/EU (WEEE)

Yes

EU Directive 2015/863/EU (RoHS 2 amendment)

Yes

EU Directive Compliance

EU Directive 2003/11/EC (BFR)

EU CE Mark

Yes

CSA Flammability

FT1

UL voltage rating

600 V RMS

Update and Revision

Revision Number: 0.265 Revision Date: 12-22-2023

Update and Revision

Revision Number: 0.265 Revision Date: 12-22-2023


Report An Error

Part Numbers

Item # Color Put-Up Type UPC
73003WS 008100 Gray Reel 612825409014
73003WS 0081000 Gray Reel 612825409021
73003WS 008500 Gray Reel 612825409038
