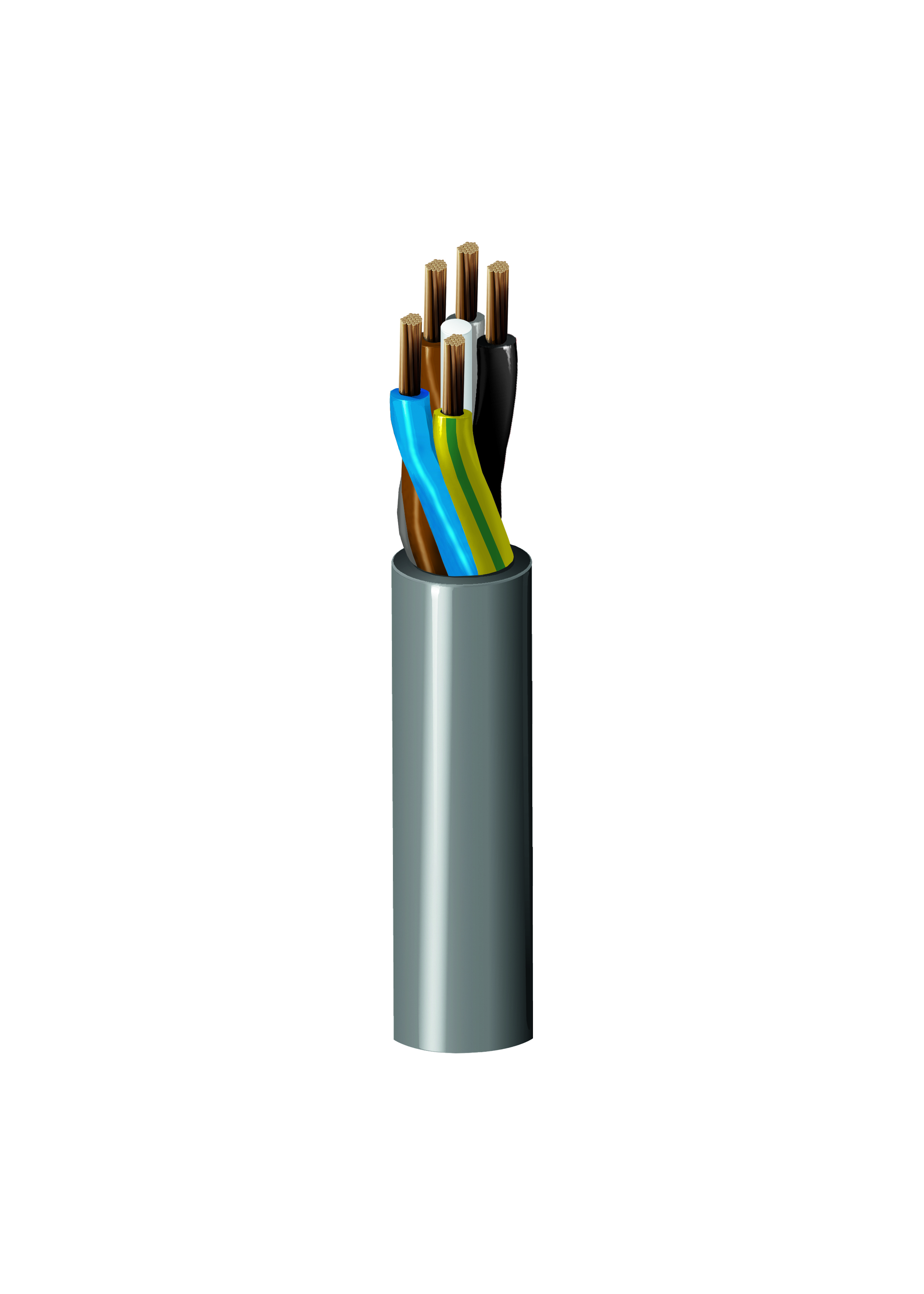

Designed for applications which are installed in occasional flexing and fixed locations. Cable applications include precision control sensors, multi axis control machines, temperature controllers, control panels, machine cutting tools, auxiliary equipment, motor speed control, production machinery and many more
Installation Temp Range
-40°C to +80°C
Operating Temp Range
-5°C to +70°C
Bulk Cable Weight
Min. Bend Radius During Installation
4 x OD
Min. Bend Radius During Operation
15 x OD
IEC 60227-5, EN 50525-2-51, VDE 0281-13
EU Directive 2011/65/EU (RoHS 2)
Suitability - Indoor
Suitability - Oil Resistance
Suitability - Outdoor
Suitability - Sunlight Resistance
DIN VDE 0482-332-1-2, DIN EN 60332-1-2
Update and Revision
Revision Number: 0.16 Revision Date: 08-27-2021
