H4G70CY

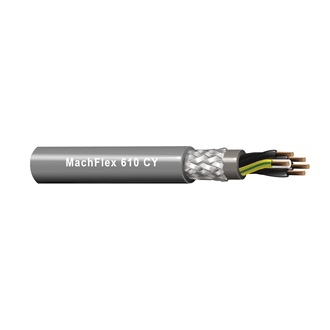

MachFlex™ 610CY, 3+1G C 70mm² Str BC, PVC Ins, PVC Inner Jkt, TCBS, PVC Outer Jkt

...
MachFlex™ 610CY, 3 Conductor + 1 Ground 70mm² Stranded Bare Copper, PVC Insulation, PVC Inner Jacket, Tinned Copper Braid Shield, PVC Outer Jacket
Get Product Alerts
Specifications
Product Overview

Suitable Applications

Designed for applications which are installed in occasional flexing and fixed locations. Cable applications include precision control sensors, multi axis control machines, temperature controllers, control panels, machine cutting tools, auxiliary equipment, motor speed control, production machinery and many more. Tinned copper braid shield ensures cables with excellent noise immunity.

Physical Characteristics (Overall)
Conductor
Element AWG Stranding Material No. of Conductors
Conductor(s) 70mm² Class 5 BC - Bare Copper 3
Ground 70mm² Class 5 BC - Bare Copper 1

Conductor Count

4

Color Chart
Color
Black #1
Black #2
Black #3
Green/Yellow
Inner Jacket
Material
PVC - Polyvinyl Chloride
Outer Shield
Type Material
Braid Tinned Copper (TC)
Outer Jacket
Material Nominal Diameter
PVC - Polyvinyl Chloride 43.2 mm
Electrical Characteristics
Conductor DCR
Max. Conductor DCR
0.272 Ohm/km
Voltage
Dielectric Withstand Voltage Non-UL Description Non-UL Voltage Rating
4000 V IEC: 600/1000 V
Temperature Range

Installation Temp Range

-40°C to +80°C

Operating Temp Range

-5°C to +70°C

Mechanical Characteristics

Oil Resistance

Yes

UV Resistance

Yes

Bulk Cable Weight

4282 kg/km

Min. Bend Radius During Installation

6 x OD

Min. Bend Radius During Operation

20 x OD

Standards

Other Specification

IEC 60227-5, EN 50525-2-51, VDE 0281-13

Applicable Environmental and Other Programs

EU Directive 2011/65/EU (RoHS 2)

Yes

Suitability

Suitability - Indoor

Yes

Suitability - Oil Resistance

Yes

Suitability - Outdoor

Yes

Suitability - Sunlight Resistance

Yes

Flammability, LS0H, Toxicity Testing

IEC Flammability

IEC 60332-1-2

Other Flammability

DIN VDE 0482-332-1-2, DIN EN 60332-1-2

History

Update and Revision

Revision Number: 0.22 Revision Date: 08-27-2021
