9410

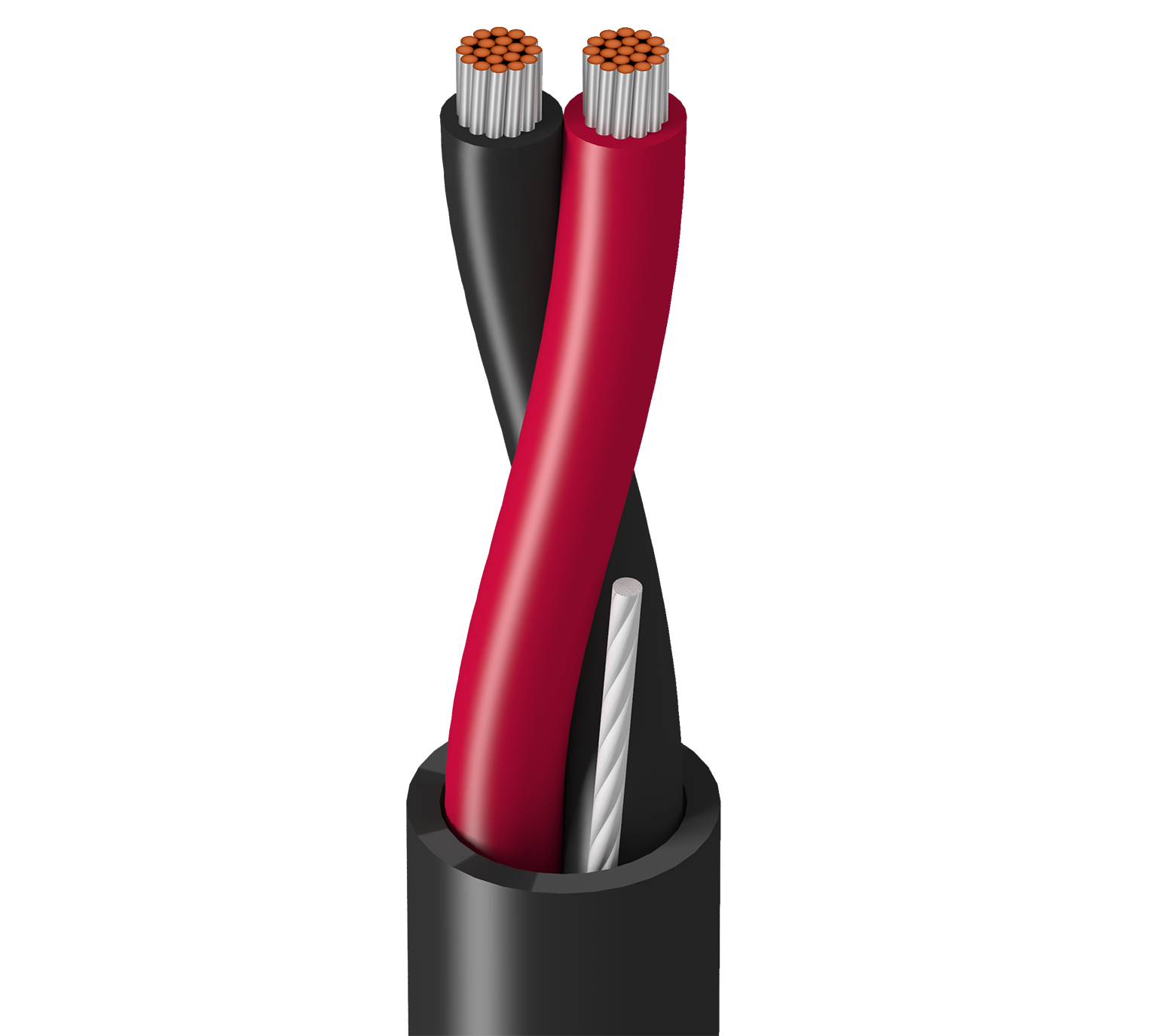

High Perform Instr, 1 Pr #16 Str TC, PVC Ins E2, PVC Jkt, PLTC

...
High Performance Instrumentation, 1 Pair 16AWG (19x29) Tinned Copper, PVC Insulation E2 Color Code, PVC Outer Jacket, PLTC
English
Request Quote
Share
Request Sample Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

Instrumentation, Sensors, Valves, Positioners, 4-20mA, 0-10V

Construction Details
Conductor
Element No. of Elements Size Stranding Material
Pair(s) 1 16 AWG 19x29 TC - Tinned Copper
Insulation
Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Pair(s) PVC - Polyvinyl Chloride 0.0185 in (0.470 mm) 0.096 in (2.4 mm) Black & Red
Outer Jacket
Material Nom. Thickness Nom. Diameter Ripcord
PVC - Polyvinyl Chloride 0.037 in (0.94 mm) 0.260 in (6.60 mm) Yes

Overall Cable Diameter (Nominal)

0.260 in (6.60 mm)

Electrical Characteristics
Electricals
Element Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Max. Current
Pair(s) 4.5 Ohm/1000ft 31 pF/ft (100 pF/m) 6.2 Amps per conductor at 25°C
Voltage
UL Voltage Rating
300 V (PLTC, CMG)
Mechanical Characteristics
Temperature
UL Temperature Operating
105°C -30°C to +105°C

Table Notes

AWM 80°C

Bend Radius
Stationary Min. Installation Min.
2.6 in (66 mm) 2.6 in (66 mm)

Max. Pull Tension

80 lbs (36 kg)

Bulk Cable Weight

35 lbs/1000ft

Standards and Compliance

Environmental Suitability

Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance

Flammability / Reaction to Fire

UL 1685 UL Loading, FT4, T-29-520, IEEE 1202

NEC / UL Compliance

Article 725, Article 727, Article 800, CMG, ITC, PLTC

AWM Compliance

AWM 2464

CEC / C(UL) Compliance

CMG

European Directive Compliance

EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

APAC Compliance

China RoHS II (GB/T 26572-2011)

History

Update and Revision

Revision Number: 0.601 Revision Date: 02-15-2024

Show All Specifications
Hide Specifications
Part Numbers
Item # Color UPC Footnote
9410 0601000 Chrome 612825240211 C
9410 0602500 Chrome 612825240228 Z
9410 060U1000 Chrome 612825240198 C
9410 060U500 Chrome 612825240204
