Product Number: 19207

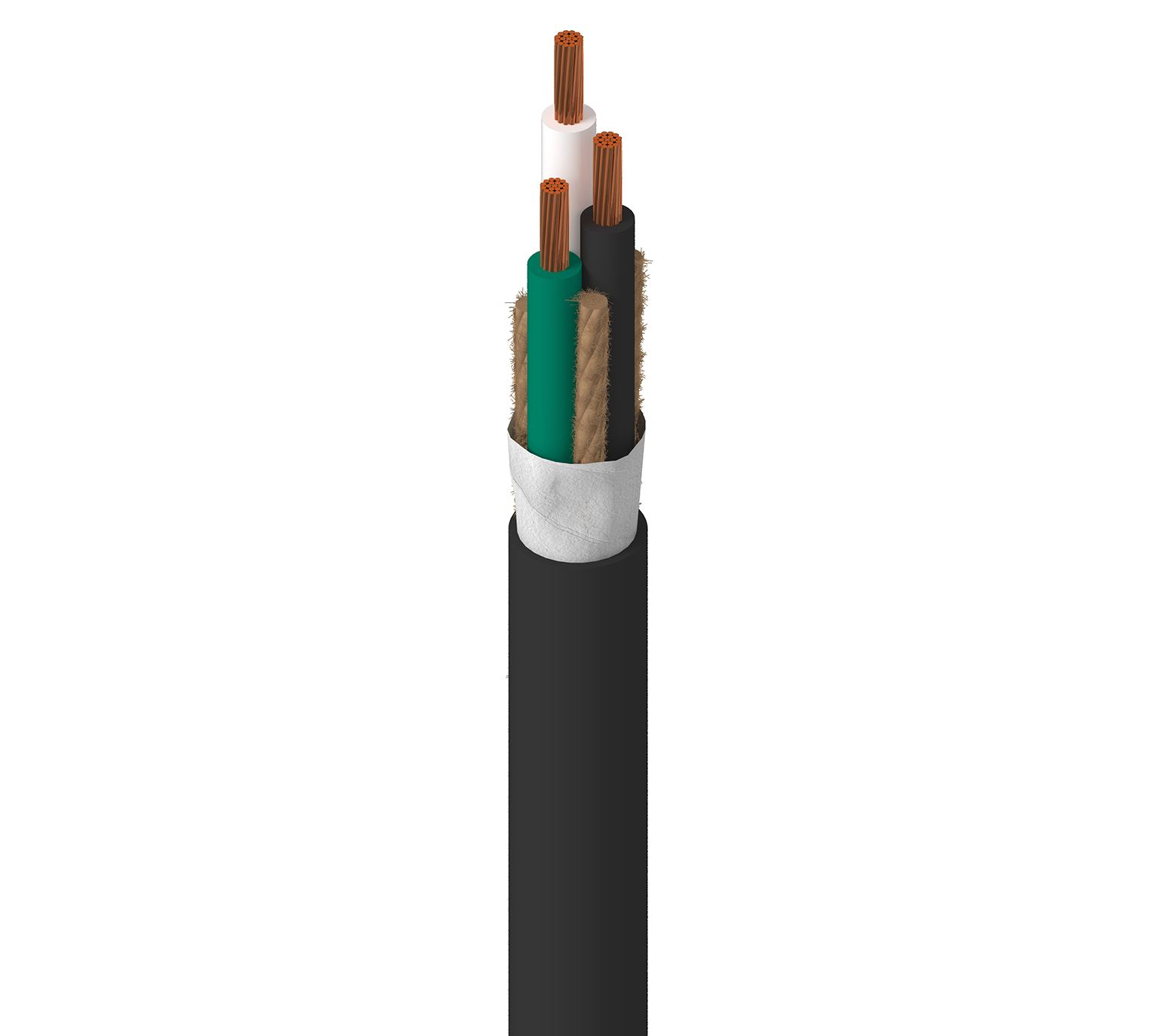

Portable Cordage, 3 C #14 Str BC, EPDM Ins, CSM Jkt, UL Type SO

Portable Cordage, 3 Conductor 14AWG (41x30) Bare Copper, EPDM Insulation, CSM Outer Jacket, UL Type SO

  • Availability:
    Global
  • Status:
    Active
19207
5 of 5

Specifications

Expand All

Conductor

Element No. of Elements Size Stranding Material
Conductor(s) 3 14 AWG 41x30 BC - Bare Copper

Insulation

Material Nom. Thickness Nom. Insulation Diameter Color Code
EPDM - Ethylene Propylene Diene Monomer 0.048 in (1.2 mm) 0.170 in (4.32 mm) Black, White, Green

Outer Jacket

Separator Material Nom. Thickness Nom. Diameter
Paper Tape CPE - Chlorinated Polyethylene (Thermoset) 0.086 in (2.2 mm) 0.538 in

Electricals

Nom. Conductor DCR Max. Current
2.76 Ohm/1000ft 18 Amps per Conductor at 25ºC (13 Amps over 50 ft)
13 Amps per Conductor at 25ºC (over 50 ft)

Voltage

UL Voltage Rating
600 V

Temperature

UL Temperature
90°C

Max. Pull Tension

142.5 lbs (64.64 kg)

Bulk Cable Weight

161 lbs/1000ft

Environmental Suitability

Oil Resistance

NEC / UL Compliance

Article 400, SO

AWM Compliance

SO

European Directive Compliance

EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

APAC Compliance

China RoHS II (GB/T 26572-2011)

Update and Revision

Revision Number: 0.386 Revision Date: 09-07-2025

Footnote

C - CRATE REEL PUT-UP., F - MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 50'.

Update and Revision

Revision Number: 0.386 Revision Date: 09-07-2025

Footnote

C - CRATE REEL PUT-UP., F - MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 50'.

Report An Error

Part Numbers

Item # Color Putup Type Length UPC Footnote
19207 010250 Black Reel 250 ft 612825126799 C F
